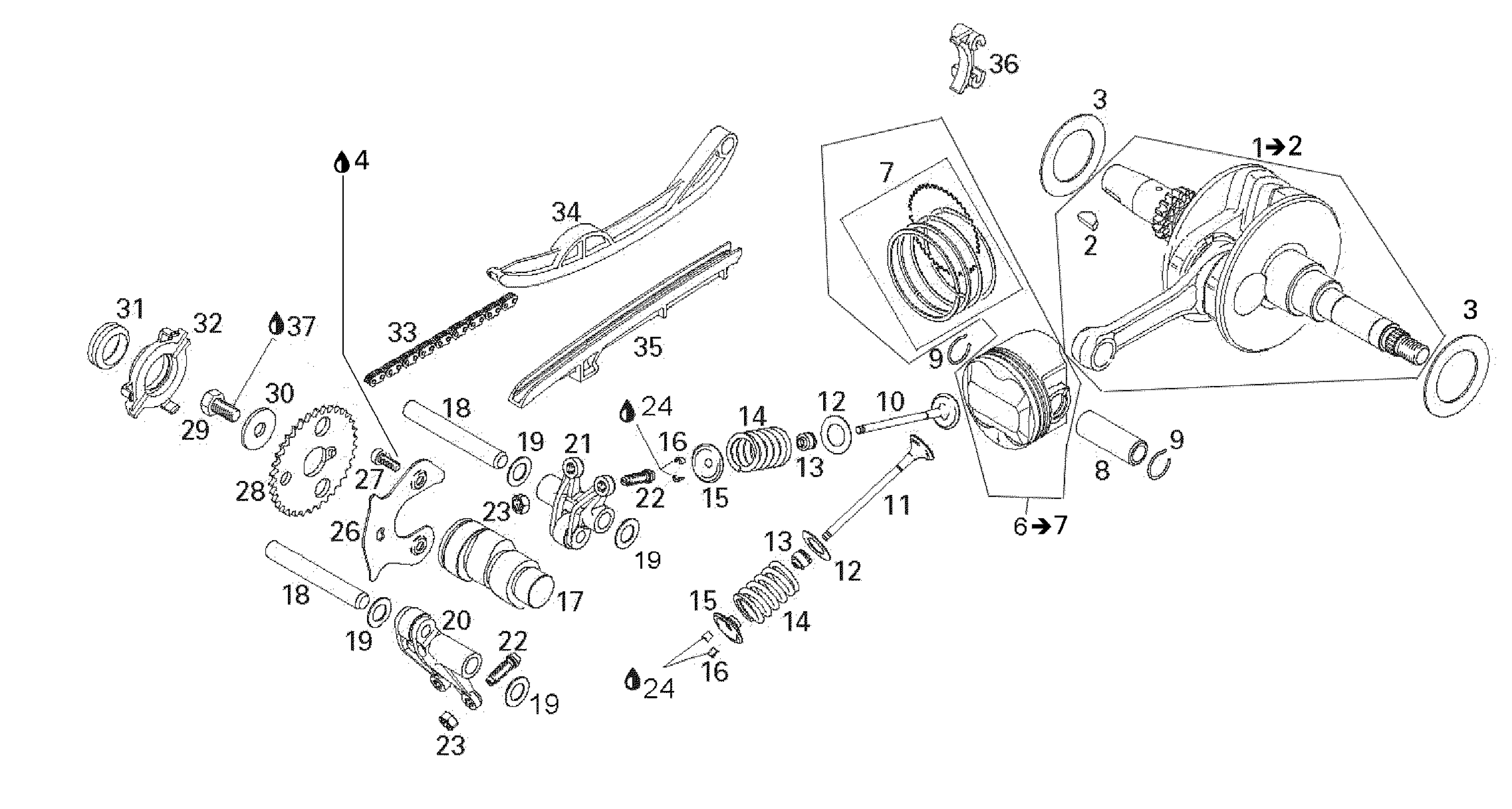

Can-Am Rally 175, 2007 Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 To 2

420296420

Unavailable

2

Woodruff Key 4 X 5

420246570

$3.29

3

THRUST WASHER - Call your local BRP dealership

420627110

Unavailable

4

Loctite 243, 10 ml

293800060

$20.77

6

Piston Ass’y | Includes 6 To 7

420296700

Unavailable

7

PISTON RING SET - Call your local BRP dealership

420296704

Unavailable

8

PISTON PIN - Call your local BRP dealership

420216210

Unavailable

9

CIRCLIP PISTON - Call your local BRP dealership

420245805

$3.58

10

INLET VALVE 20 MM - Call your local BRP dealership

A14711179000

$41.51

11

Exhaust Valve 18mm

A14721179000

Unavailable

12

THRUST WASHER - Call your local BRP dealership

420227451

$4.72

13

VALVE SEAL - Call your local BRP dealership

A12209179000

$13.43

14

VALVE SPRING - Call your local BRP dealership

A14751179000

$11.51

15

VALVE SPRING RETAINER - Call your local BRP dealership

A14771179000

$13.05

16

COTTER VALVE - Call your local BRP dealership

A14781179000

$7.66

17

CAMSHAFT 236DEG - Call your local BRP dealership

A14400179000

$119.20

18

Pin

A14451179000

Unavailable

19

THRUST WASHER - Call your local BRP dealership

420627100

$4.58

20

Rocker Arm Exhaust

A14434179000

Unavailable

21

Rocker Arm Inlet

A14433179000

Unavailable

22

Adjustment Screw M6 X 0.75

420241337

$4.89

23

Hex Nut M6

420242913

$0.52

24

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

26

Retaining Plate

A14456179000

Unavailable

27

Socket Screw M5 x 12

420241841

Unavailable

28

Timing Gear, 34 Teeth

A14321179000

Unavailable

29

Hex. Screw M8 x 16

207181644

$0.87

30

WASHER - Call your local BRP dealership

A941050824020

$6.89

31

V-RING - Call your local BRP dealership

A91420179000

$9.20

32

COVER - Call your local BRP dealership

A14410179000

$9.97

33

CAMSHAFT CHAIN - Call your local BRP dealership

420297932

Unavailable

34

Chain Tension Guide

A14550179000

Unavailable

35

CHAIN GUIDE - Call your local BRP dealership

A14500179000

$20.74

36

CHAIN GUIDE - Call your local BRP dealership

A14524179000

$11.51

37

Loctite 243, 10 ml

293800060

$20.77
