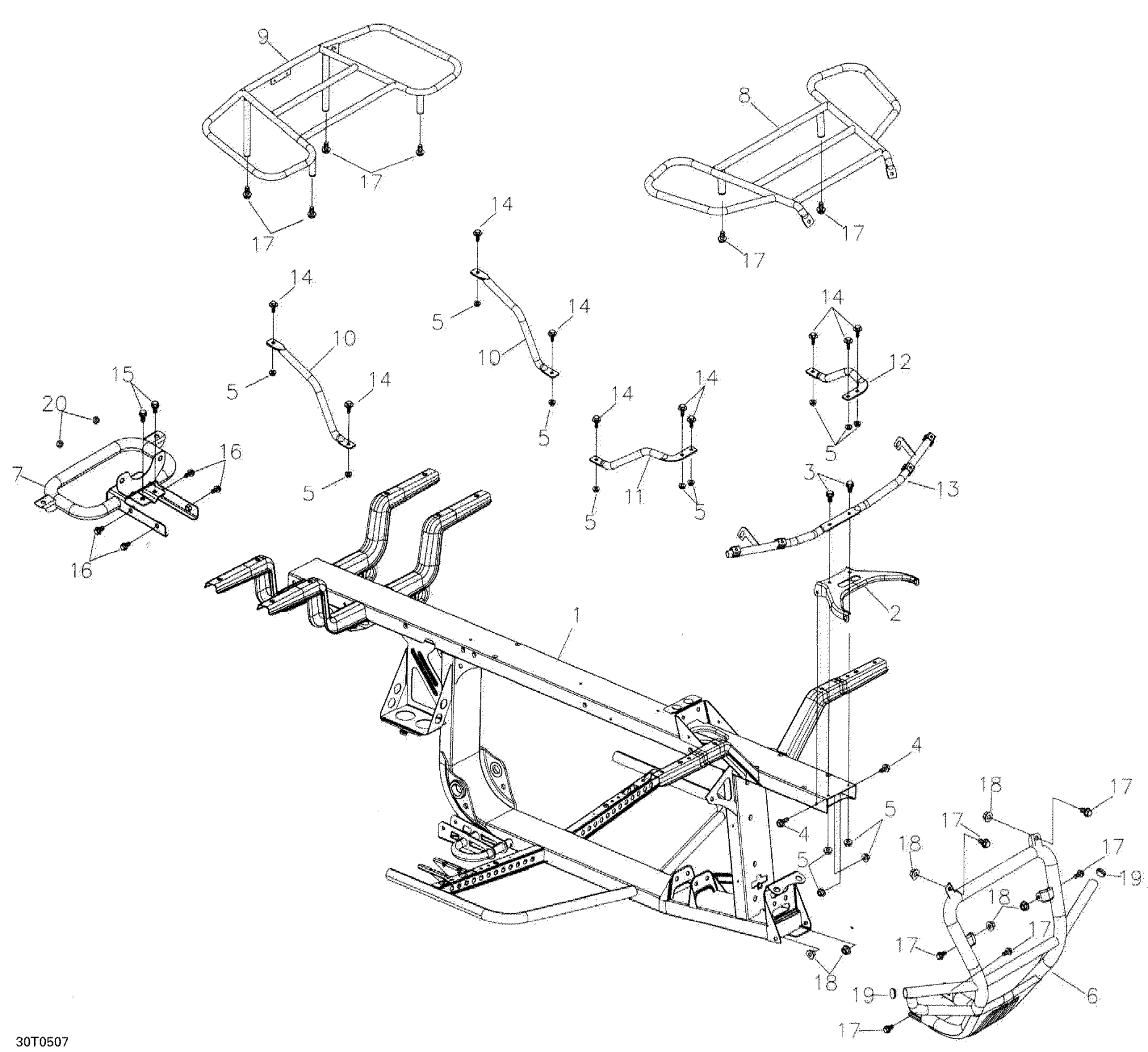

Can-Am Rally 175, 2005 Frame And Luggage Racks Diagram

#

Description
Price

1

Frame

A50100179000

Unavailable

2

Front Plate

A50114179000

Unavailable

3

Hex. Flange Screw M6 X 20

207662044

$1.66

4

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

6

Front Bumper

A50104179000

Unavailable

7

Rear Bumper

A50105179000

Unavailable

8

Front Rack

A61200179000

Unavailable

9

Rear Rack

A81200179000

Unavailable

10

Rear Cover Pole

A83401179000

Unavailable

11

RH Front Cover Pole

A64307179000

Unavailable

12

LH Front Cover Pole

A64308179000

Unavailable

13

Front Fascia Pole

A64336179000

Unavailable

14

Hexagonal Head Screw

210262050

$1.74

15

SCREW-HEX.FLANGE M8 X 16 - Call your local BRP dealership

A9600008016G

$5.29

16

Hex. Flange Screw M8 X 16, Scotch Grip

A9600008016GL

Unavailable

17

Hex. Flange Screw M8 X 20

207682044

$0.92

18

Hex. Elastic Flange Nut M8

233281416

$1.25

19

Front Bumper Cap

A50117179000

Unavailable

20

Jack Nut M5

250100035

$6.03
