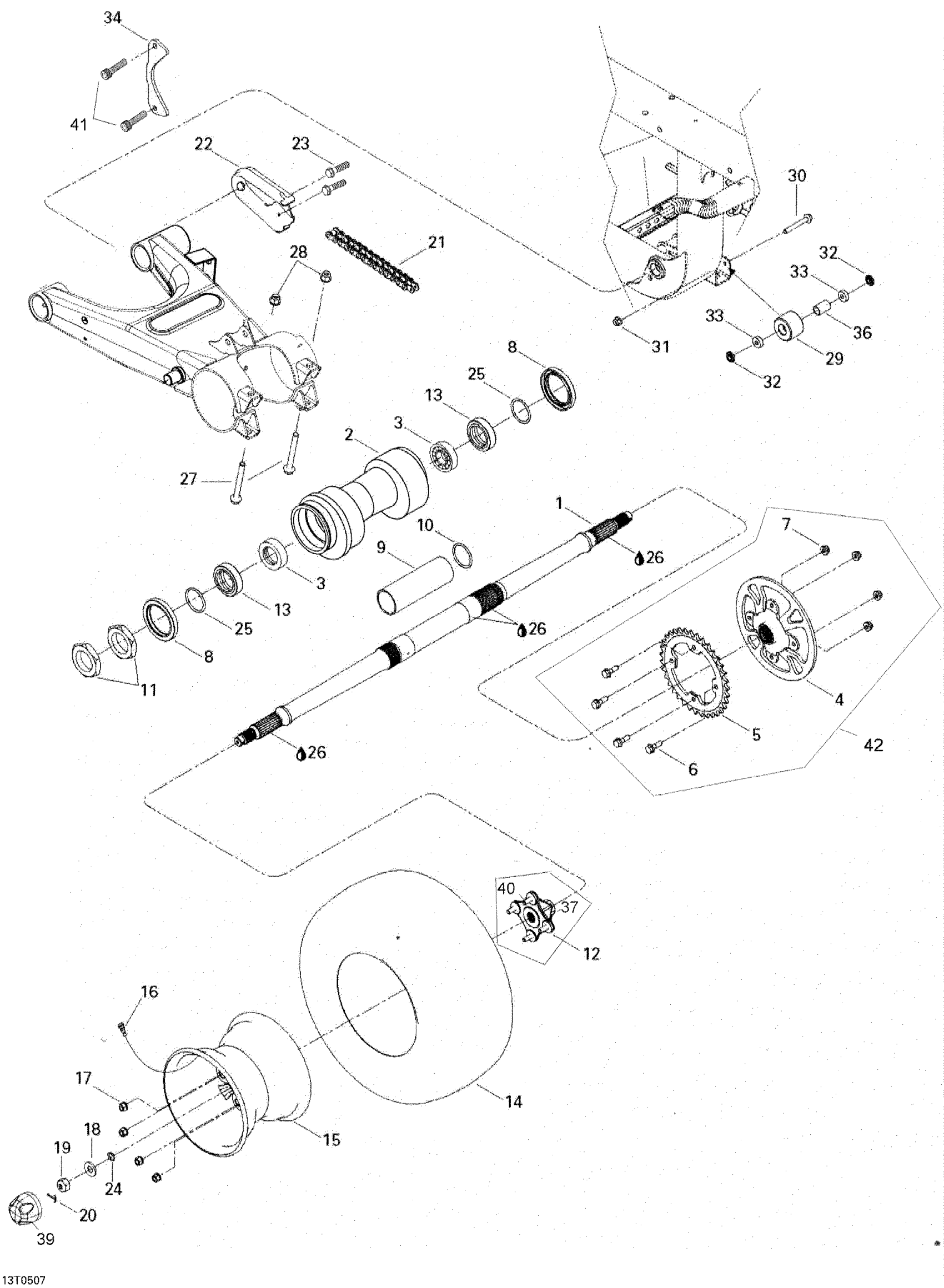

Can-Am Rally 175, 2005 Drive System, Rear Diagram

#

Description
Price

1

REAR AXLE - Call your local BRP dealership

A42301179001

$346.12

2

CHAIN TENSIONNER - Call your local BRP dealership

A52200179000

$116.89

3

BALL BEARING - Call your local BRP dealership

A961006007LLU

$42.28

4

Hub

A42610179001

Unavailable

5

Sprocket, 35 Teeth

705500219

Unavailable

6

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

7

Hex. Elastic Flange Nut M8

233281416

$1.25

8

OIL SEAL - Call your local BRP dealership

A96500506810

$14.58

9

SPACER - Call your local BRP dealership

705500291

$24.58

10

RETAINER RING - Call your local BRP dealership

705500292

$5.35

11

Locking Nut

705500293

Unavailable

12

Wheel Hub Ass'y

A42035179000

Unavailable

13

WEAR RING - Call your local BRP dealership

A52109179000

$21.51

14

Rear Tire

705500294

Unavailable

15

Rear Rim

705500295

Unavailable

16

Rim Valve With Cap

705400193

$6.69

17

Steel Wheel Nut

250100042

$2.48

18

FORMED WASHER - Call your local BRP dealership

705500481

$5.35

19

Elastic Stop Nut M18

232591414

$3.48

20

Cotter Pin

250400036

$1.74

21

Chain

A40530179000

Unavailable

22

SHOE SLIDER - Call your local BRP dealership

A40533179000

Unavailable

23

Hex. Flange Screw M6 X 16

207661644

$0.61

24

O-RING - Call your local BRP dealership

293300082

$4.58

25

O-RING - Call your local BRP dealership

293300089

$6.52

26

Grease, Super Lube

293550030

$24.67

27

Hex. Flange Screw M10 X 90

A9600010090

Unavailable

28

Elastic Flange Nut M10

A9035110000

Unavailable

29

ROLLER CHAIN - Call your local BRP dealership

A40537179000

$30.74

30

Hex. Flange Screw M8 x 60

207686044

$2.56

31

Hex. Elastic Flange Nut M8

233281416

$1.25

32

SPACER - Call your local BRP dealership

705500398

$6.89

33

BALL BEARING - Call your local BRP dealership

293350039

$12.28

34

CHAIN GUIDE - Call your local BRP dealership

A40516179000

$21.51

36

SPACER - Call your local BRP dealership

A40539179000

$8.43

37

Not Available As Spare Part - Friction Washer

Unavailable

39

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

40

Wheel Stud

250300013

$3.98

41

SCREW-HEX.FLANGE M8 X 16 - Call your local BRP dealership

A9600008016G

$5.29

42

Not Available As Spare Part - Friction Washer

Unavailable
