Description

Price

1

WHEEL HUB ASS'Y - Call your local BRP dealership

A42709179000

$92.28

2

INSIDE BUSHING - Call your local BRP dealership

705400113

$10.74

3

BALL BEARING - Call your local BRP dealership

293350036

$14.58

4

OUTSIDE BUSHING - Call your local BRP dealership

705400235

$8.43

5

Not Available As Spare Part - Friction Washer

Unavailable

6

SEAL - Call your local BRP dealership

293250094

$25.35

7

O-RING - Call your local BRP dealership

293300058

$5.35

8

Elastic Stop Nut M18

232591414

$3.48

9

Cotter Pin

250400036

$1.74

10

TIRE-FRONT - Call your local BRP dealership

A42711179000

$91.51

11

Front Rim

705400242

Unavailable

12

Rim Valve With Cap

705400193

$6.69

13

Steel Wheel Nut

250100042

$2.48

14

Synthetic Grease, 400 G

293550010

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Wheel Stud

250300013

$3.98

17

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

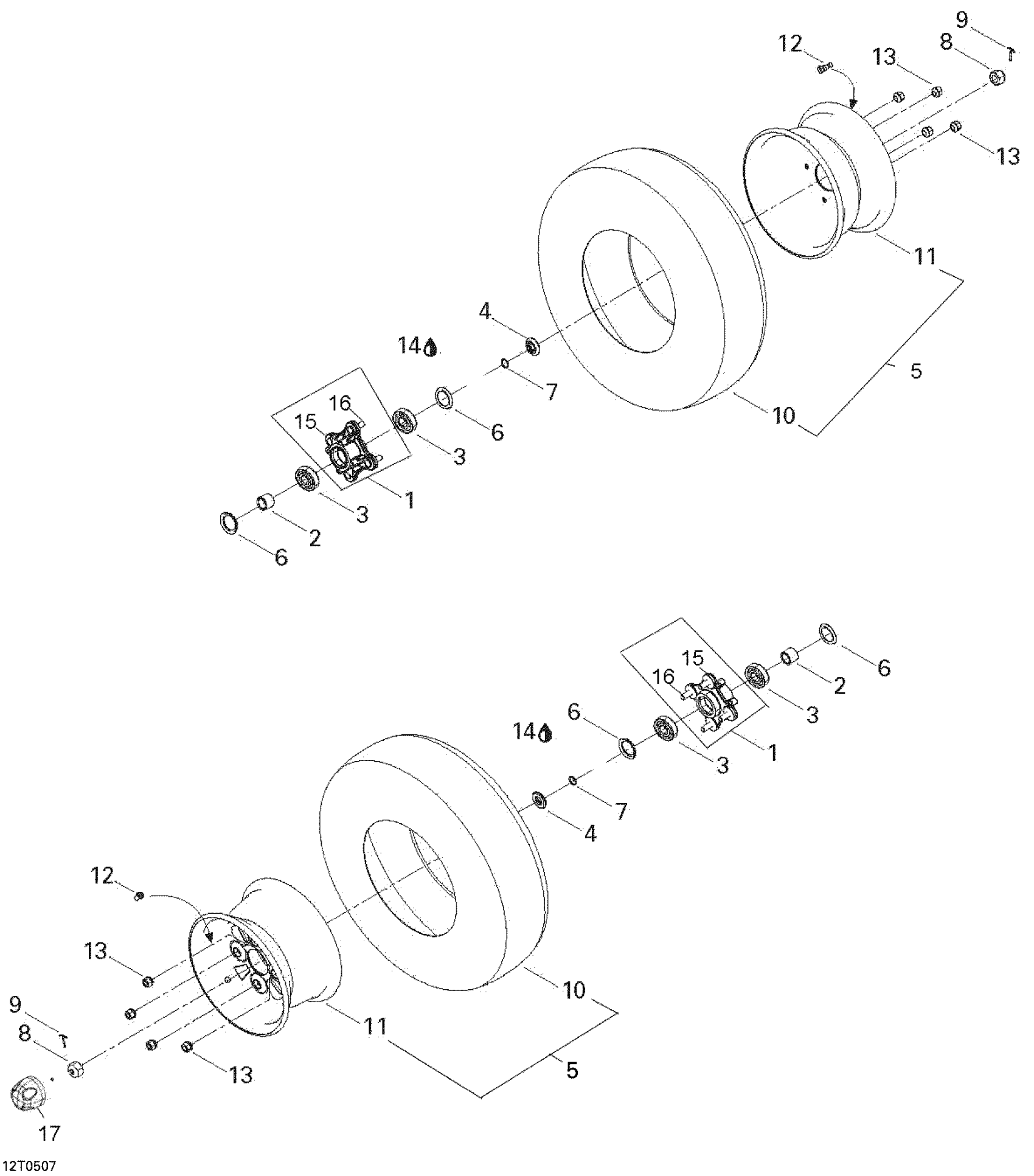

Can-Am Rally 175, 2005 Drive System, Front Diagram
