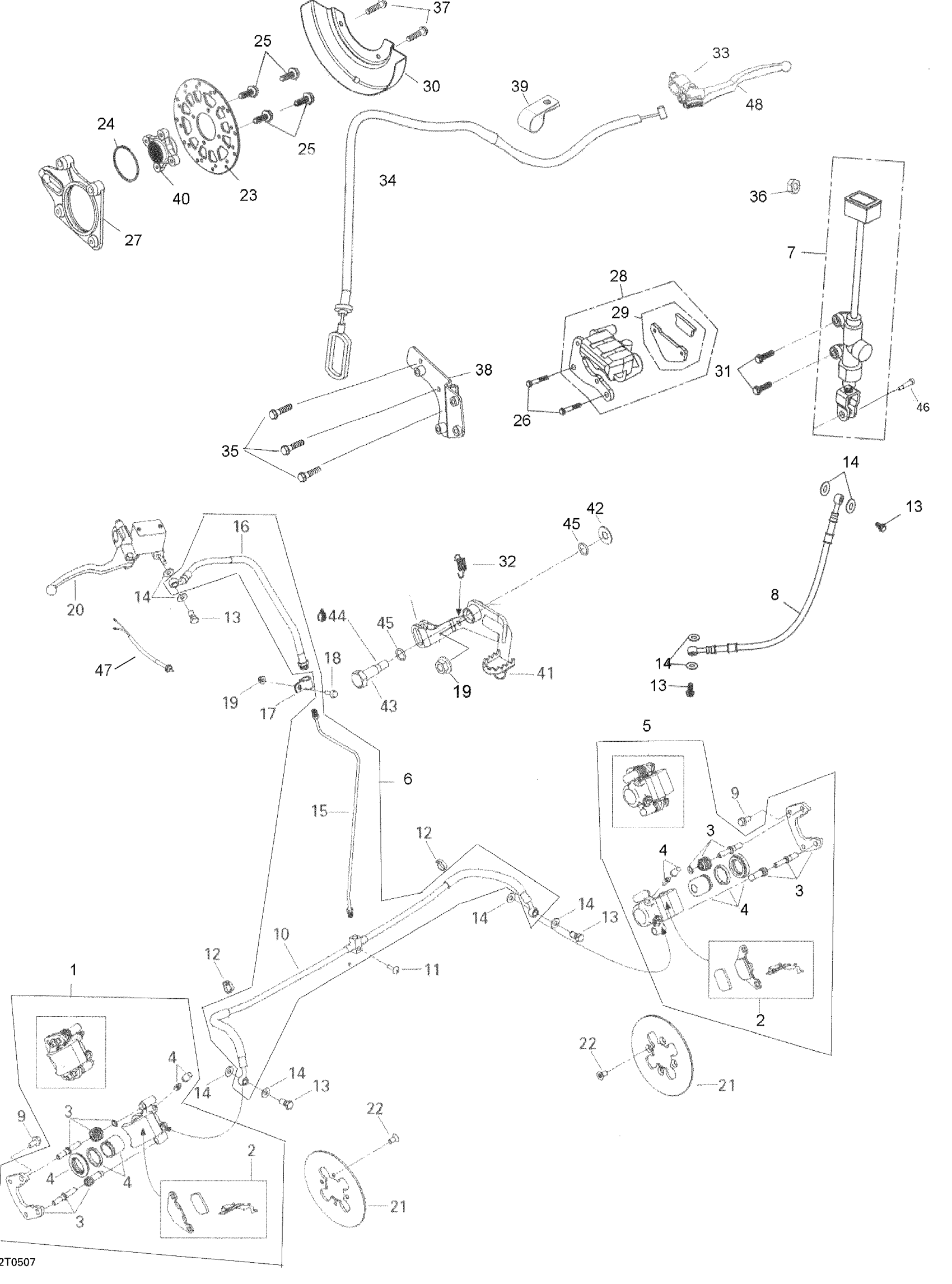

Can-Am Rally 175, 2005 Hydraulic Brake Diagram

#

Description
Price

1

RH Caliper Ass’y | Includes 1 To 4

705600364

Unavailable

2

FRONT BRAKE PAD SET - Call your local BRP dealership

A45120179000

$23.05

3

BOOT KIT - Call your local BRP dealership

705600286

Unavailable

4

PISTON SET - Call your local BRP dealership

705600287

Unavailable

5

LH Caliper Ass’y | Includes 2 To 5

705600365

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Rear Master Cylinder Ass'y

A43500179000

Unavailable

8

Rear Brake Hose

A43460179000

Unavailable

9

Hex. Flange Screw M8 X 16, Scotch Grip

A9600008016GLZ

Unavailable

10

Flexible Hose

A45570179000

Unavailable

11

SOCKET SCREW M6 X 35 - Call your local BRP dealership

A9200306035

$5.29

12

Tie-Rap 180 mm

414115200

$0.09

13

Banjo Bolt

A45456107000

Unavailable

14

COPPER WASHER - Call your local BRP dealership

A941031015012

$5.35

15

Vertical Tube

A45560179000

Unavailable

16

Brake Handle Hose

A45550179000

Unavailable

17

Open Clamp

705600040

$12.91

18

Hex. Flange Screw M6 X 20

207662044

$1.66

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

20

MASTER CYLINDER - Call your local BRP dealership

A45500179000

Unavailable

21

FRONT BRAKE DISC - Call your local BRP dealership

705600223

$24.58

22

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

23

Rear Brake Disc

A45015197000

Unavailable

24

CIRCLIP - Call your local BRP dealership

A945117800S

$14.58

25

SCREW-HEX.FLANGE - Call your local BRP dealership

A45016146000

Unavailable

26

SCREW-HEX.FLANGE M10 X 28 - Call your local BRP dealership

A960001002814GL

$5.29

27

REAR AXLE ADJUSTER BRACKET - Call your local BRP dealership

A52120179000

$56.12

28

Rear Caliper Ass'y

A43000179000

Unavailable

29

REAR BRAKE PAD SET - Call your local BRP dealership

A45120168000

$35.35

30

Rear Brake Disc Cover

A45018179000

Unavailable

31

Hex. Flange Screw M8 X 25

207682544

$0.90

32

BRAKE PEDAL SPRING - Call your local BRP dealership

705600288

$8.43

33

LH BRAKE LEVER ASS'Y - Call your local BRP dealership

A53179179000

$31.51

34

Rear Brake Cable

A43470179000

Unavailable

35

Socket Head Screw M8 X 16

205081660

Unavailable

36

NYLON NUT M6 - Call your local BRP dealership

A9035006000

$8.06

37

Hex. Flange Screw

207681244

$0.69

38

REAR MASTER CYLINDER BRACKET - Call your local BRP dealership

A43502179000

$39.20

39

Open Clamp

A11352179000

Unavailable

40

BUSHING - Call your local BRP dealership

A42106179000

$58.43

41

Brake Pedal

A46500179000

Unavailable

42

WASHER - Call your local BRP dealership

A941051225010

$5.29

43

PIVOT - Call your local BRP dealership

705600201

$13.82

44

Synthetic Grease, 400 G

293550010

Unavailable

45

O-RING - Call your local BRP dealership

293300053

$5.35

46

SOCKET HEAD SCREW M6 X 41 - Call your local BRP dealership

A9120006041

$9.91

47

BRAKE SWITCH WIRE - Call your local BRP dealership

A35340169000

$13.82

47

RH BRAKE SWITCH WIRE - Call your local BRP dealership | Europe

A3534016900A

$15.35

48

LH Brake Handle Lever

A53178179000

$31.51
