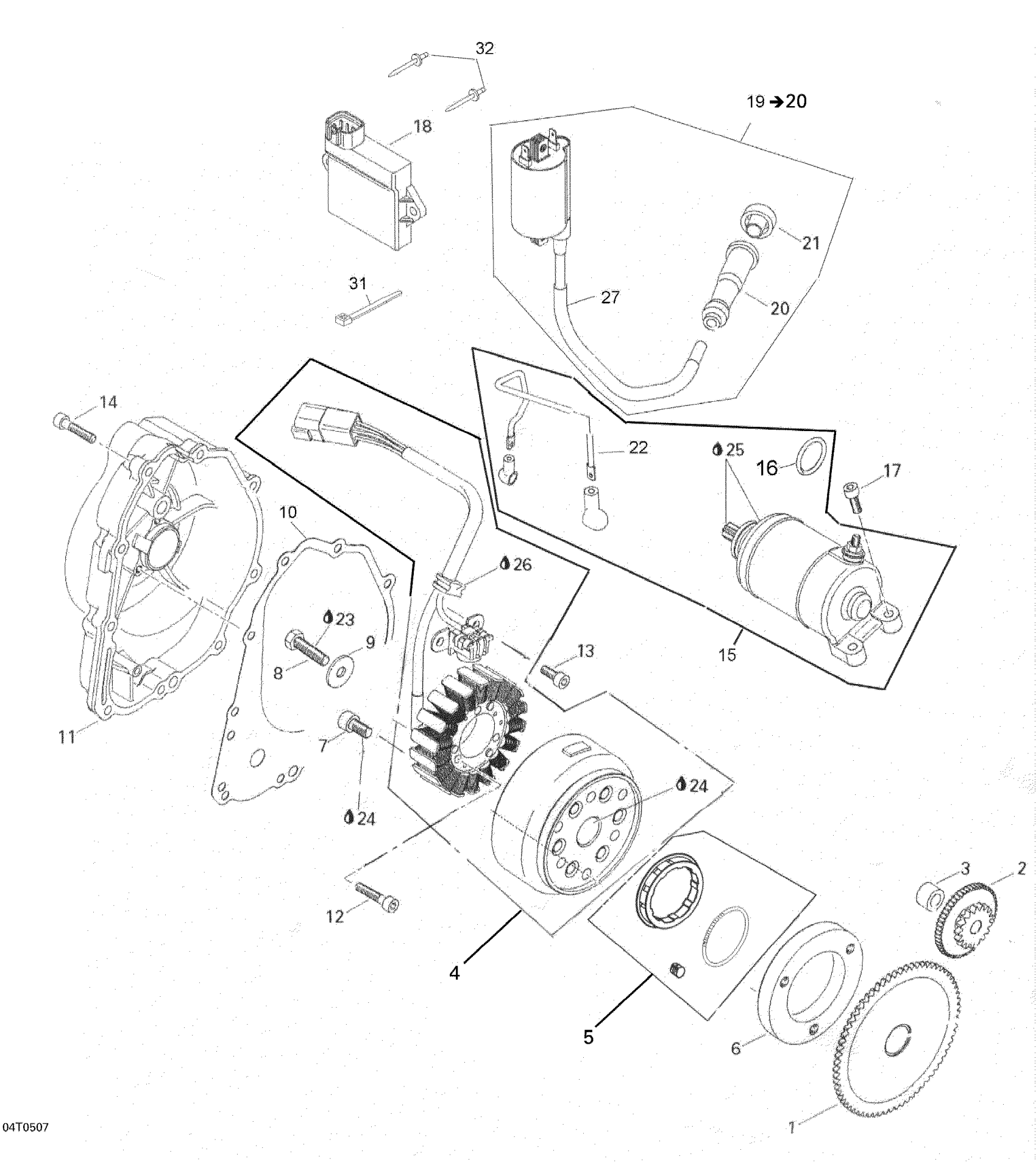

Can-Am Rally 175, 2005 Magneto Diagram

#

Description
Price

1

FREE WHEEL GEAR, 67 TEETH - Call your local BRP dealership

420635150

Unavailable

2

IDLE GEAR, 54/17 TEETH - Call your local BRP dealership

A28422179000

$68.43

3

DISTANCE SLEEVE - Call your local BRP dealership

A96401101711

$9.97

4

AC Generator

A31100179000

Unavailable

5

SPRAG CLUTCH - Call your local BRP dealership

420259495

$250.74

6

SPRAG CLUTCH HOUSING - Call your local BRP dealership

420259480

$79.99

7

SOCKET HEAD SCREW M8 X 18 - Call your local BRP dealership

A9100008018CL

$5.29

8

SCREW M8 X 30 - Call your local BRP dealership

420940485

$4.03

9

WASHER - Call your local BRP dealership

A22145179000

$6.89

10

GASKET - Call your local BRP dealership

A11393179000

Unavailable

11

IGNITION COVER - Call your local BRP dealership

A11330179000

$95.35

12

Socket Head Screw M6 X 30

205063044

$1.42

13

Socket Head Screw M6 x 16

420241237

$1.85

14

Socket Head Screw M6 X 30

205063044

$1.42

15

ELECTRIC STARTER - Call your local BRP dealership

A31200179000

$289.99

16

O-RING - Call your local BRP dealership

A91324179000

$7.66

17

Socket Head Screw M6 X 20

205062044

$1.07

18

Electronic Box

A30410179000

Unavailable

19

Ignition Coil Ass'y | Includes 19 To 20 and 27

A30500179000

$156.12

20

Spark Plug Connector

A30700179000

Unavailable

21

RUBBER PROTECTOR - Call your local BRP dealership

A30605179000

$12.65

22

POSITIVE CABLE - Call your local BRP dealership

710000232

Unavailable

23

Loctite 243, 10 ml

293800060

$20.77

24

Sealant Loctite 648

219703000

$35.72

25

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

26

Silicone Sealant 51388, 300 ml

296000309

$35.72

27

Ignition Coil

A30510179000

$156.12

31

Tie Rap

A90669179000

Unavailable

32

POP RIVET - Call your local BRP dealership

A90662118000

$3.82
