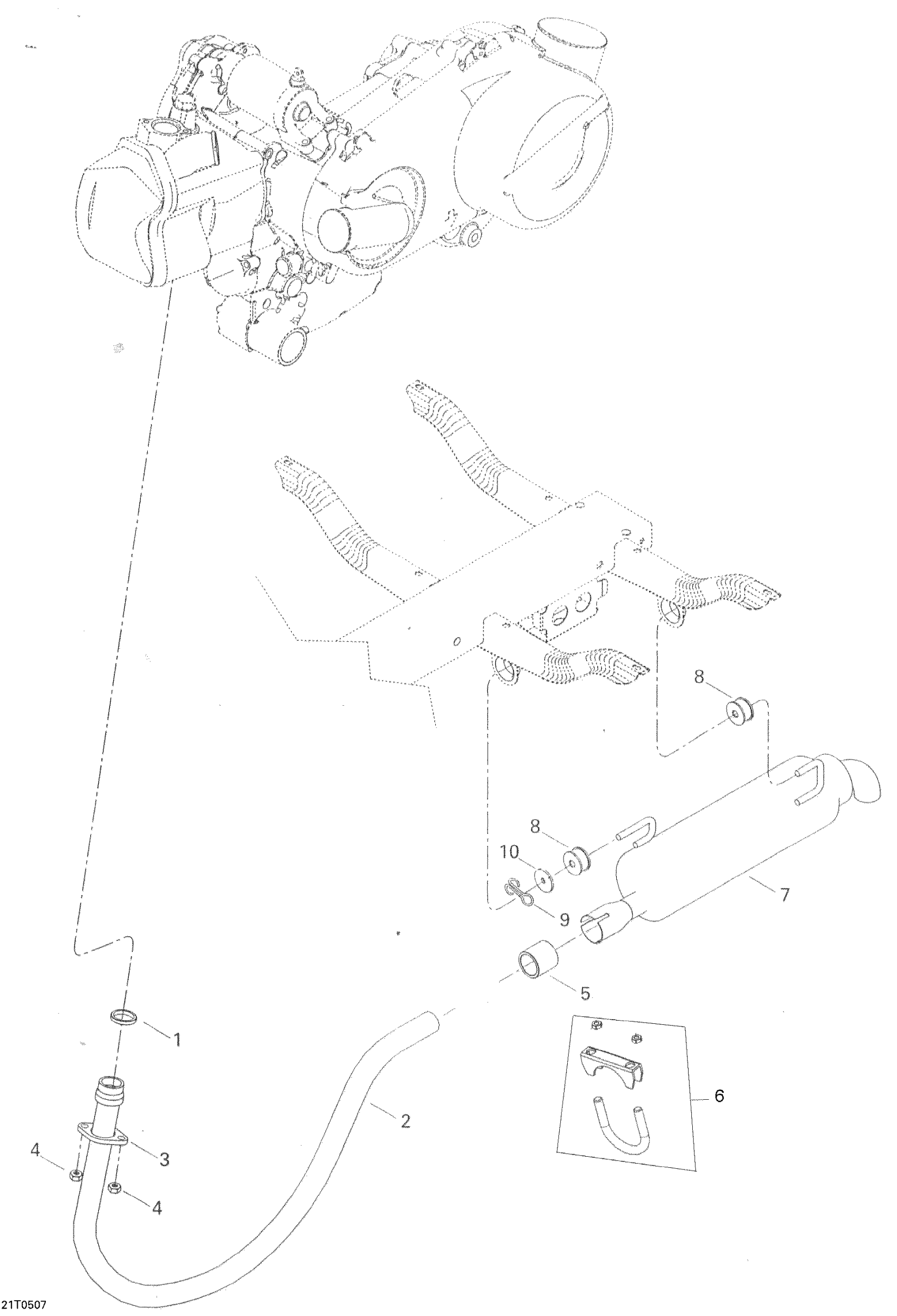

Can-Am Rally 175, 2005 Exhaust System Diagram

#

Description
Price

1

Pipe Gasket

A18291179000

Unavailable

2

TUNED PIPE - Call your local BRP dealership

A18311179000

Unavailable

3

Seal Ring

A18307179000

Unavailable

4

Hex. Flange Nut M8

233081416

$1.63

5

Pipe Gasket

A18308179000

$22.28

6

“U” Clamp

A18302179000

Unavailable

7

TUNED PIPE ASS?Y - Call your local BRP dealership

A18321179000

$156.12

8

Anti-Vibration Rubber

707600702

$8.34

9

Cotter Pin

211400017

$0.25

10

WASHER - Call your local BRP dealership

250200030

$1.35
