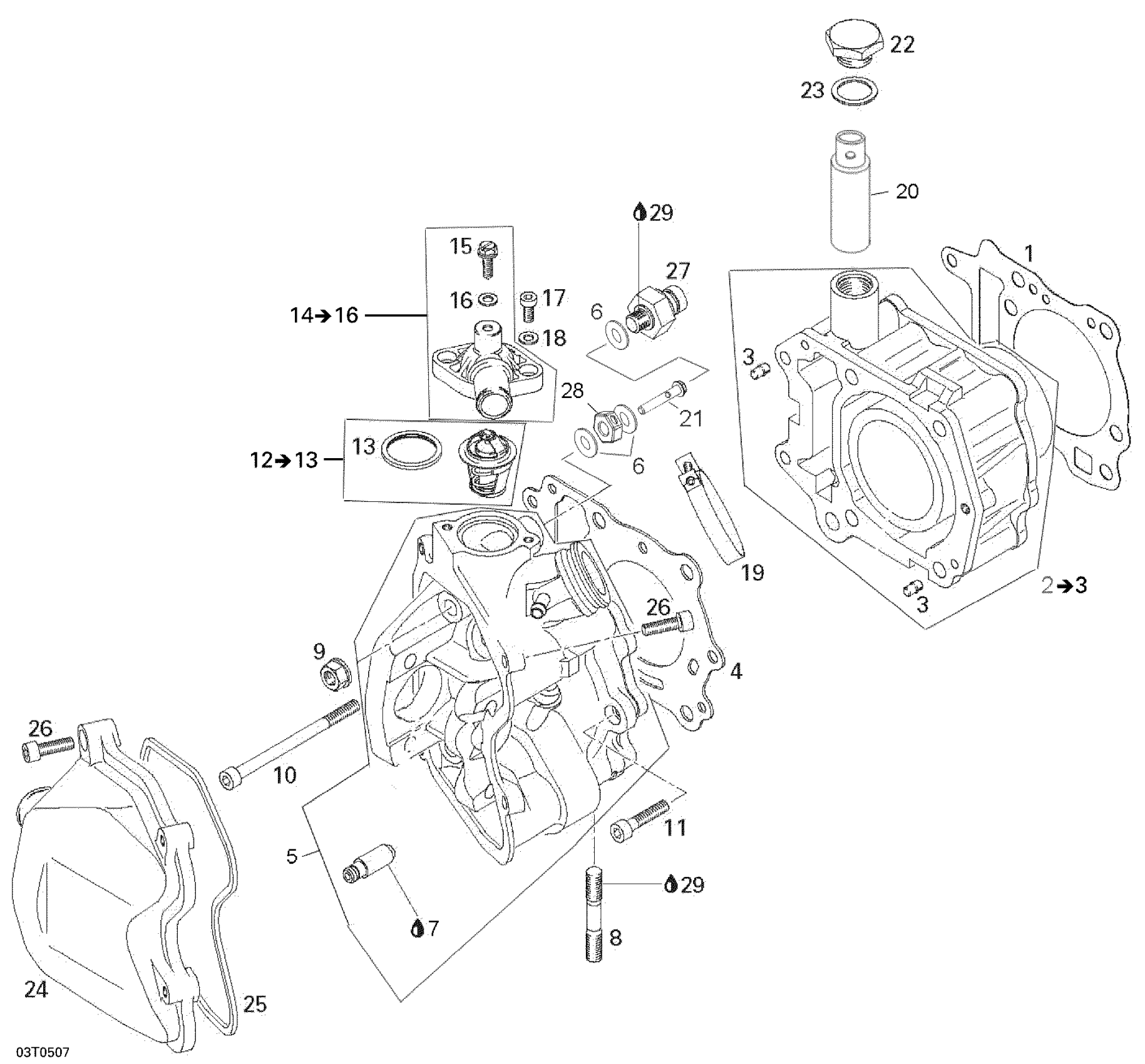

Can-Am Rally 175, 2005 Crankshaft, Piston And Cylinder Diagram

#

Description
Price

1

GASKET - Call your local BRP dealership

A12191179000

$13.83

2

Cylinder Ass’y | Includes 2 To 3

420613346

Unavailable

3

Drive Pin 5 X 10

420929650

$1.34

4

GASKET - Call your local BRP dealership

420650172

Unavailable

5

CYLINDER HEAD ASS'Y - Call your local BRP dealership

A12200179000

$575.49

6

COPPER WASHER - Call your local BRP dealership

A941031015012

$5.35

7

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

8

STUD - Call your local BRP dealership

420240366

$7.66

9

Hex. Flange Nut M8

233081416

$1.63

10

Socket Head Screw M6 X 90

420241481

Unavailable

11

Socket Head Screw M6 X 30

205063044

$1.42

12

Thermostat 65° | Includes 12 To 13

A19310179000

Unavailable

13

THERMOSTAT GASKET - Call your local BRP dealership

A19312179000

Unavailable

14

THERMOSTAT COVER - Call your local BRP dealership | Includes 14 To 16

A19311179000

$8.94

15

Screw M5 X 16

420441621

$3.11

16

GASKET RING - Call your local BRP dealership

A941020511010

$3.82

17

Socket Screw M5 x 12

420241841

Unavailable

18

Washer 5.3

420927574

$1.85

19

HOSE CLAMP - Call your local BRP dealership

420251052

$11.51

20

Chain Expander

A40546179000

Unavailable

21

3-WAY BOLT - Call your local BRP dealership

A35502179000

Unavailable

22

HEX. SCREW M18 X 10 - Call your local BRP dealership

420552276

$11.51

23

O-RING - Call your local BRP dealership

A941041824010

$7.66

24

VALVE COVER - Call your local BRP dealership

A12310179000

$42.28

25

GASKET - Call your local BRP dealership

A12391179000

$13.82

26

Socket Head Screw M6 X 20

205062044

$1.07

27

COOLING TEMPERATURE SWITCH - Call your local BRP dealership

A35500179000

$52.28

28

3-Way Joint

A35501179000

Unavailable

29

Loctite 243, 10 ml

293800060

$20.77
