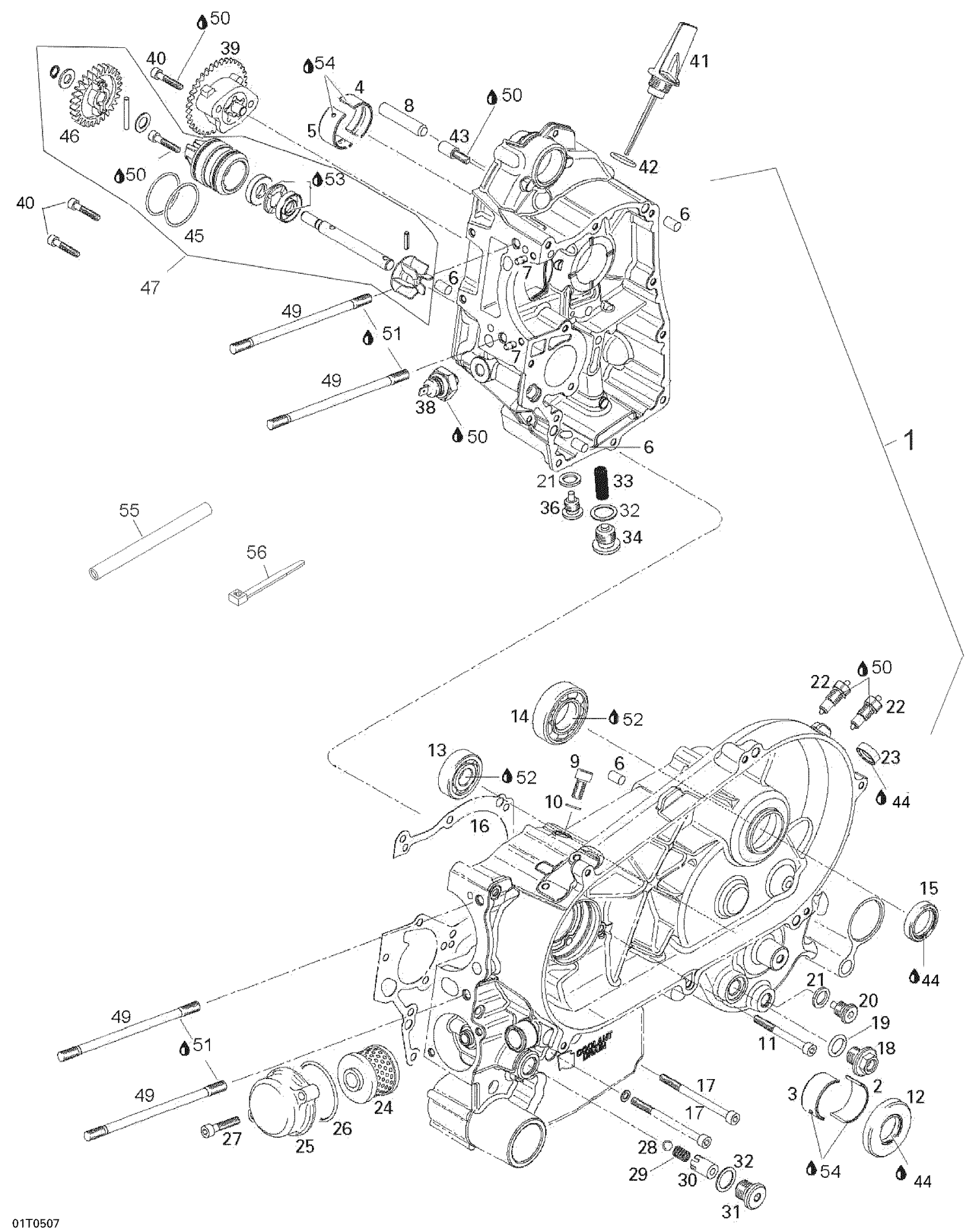

Can-Am Rally 175, 2005 Crankcase Diagram

#

Description
Price

1

CRANKCASE ASS'Y - Call your local BRP dealership

A11000179000

$874.99

2

Plain Bearing A

A96700179000

Unavailable

3

Plain Bearing B

A96701179000

Unavailable

4

PLAIN BEARING C - Call your local BRP dealership

A96702179000

$20.74

5

PLAIN BEARING D - Call your local BRP dealership

A96703179000

$20.74

6

DOWEL PIN - Call your local BRP dealership

A9430108120

Unavailable

7

Drive Pin 5 X 10

A9430105100

Unavailable

8

LOCATION PIN - Call your local BRP dealership

A9630010050

$9.97

9

Socket Head Screw M8 X 16

205081660

Unavailable

10

SEALING RING - Call your local BRP dealership

A941030813008

$4.58

11

ALLEN SCREW M6 X 60 - Call your local BRP dealership

420240373

$7.03

12

OIL SEAL - Call your local BRP dealership

A9650025527

$26.89

13

BALL BEARING - Call your local BRP dealership

A961006302C3

$20.74

14

BALL BEARING - Call your local BRP dealership

A961006205C3

Unavailable

15

OIL SEAL - Call your local BRP dealership

A9650025357

$15.35

16

GASKET - Call your local BRP dealership

A11191179000

$27.66

17

ALLEN SCREW, M6 X 80 - Call your local BRP dealership

420241503

$3.46

18

Plug Screw M14 X 1.5

420241662

$14.37

19

O-Ring

A91314179000

Unavailable

20

Plug screw

420841924

$13.58

21

GASKET - Call your local BRP dealership

A941031218013

Unavailable

22

CONTACT SCREW M10 - Call your local BRP dealership

A35750179000

$28.43

23

OIL SEAL - Call your local BRP dealership

A96500121845

$9.20

24

OIL FILTER - Call your local BRP dealership

715500367

Unavailable

25

OIL FILTER COVER - Call your local BRP dealership

A12361179000

Unavailable

26

O-RING - Call your local BRP dealership

A91347179000

Unavailable

27

HEX. FLANGED SCREW M6 X 30 - Call your local BRP dealership

420241941

$3.82

28

BALL 8.5 MM - Call your local BRP dealership

A11401179000

$3.82

29

COMPRESSION SPRING - Call your local BRP dealership

A11402179000

$6.89

30

PRESSURE REGULATOR VALVE - Call your local BRP dealership

A11403179000

$6.89

31

Plug Screw M16 X 1.5

420240234

$13.58

32

O-RING - Call your local BRP dealership

A941031622012

Unavailable

33

OIL SIEVE - Call your local BRP dealership

A15421179000

$11.51

34

Plug Screw M16 X 1.5

420240235

Unavailable

36

Magnetic Drain Plug M12 X 1.5

420241780

$17.66

38

OIL PRESSURE SWITCH M10 X 1 - Call your local BRP dealership

420956166

Unavailable

39

OIL PUMP ASS'Y - Call your local BRP dealership

420295630

$78.43

40

TAPTITE SCREW M5 X 25 - Call your local BRP dealership

420241275

$4.58

41

OIL DIPSTICK - Call your local BRP dealership

A15650179000

$8.68

42

O-RING - Call your local BRP dealership

A91317179000

$5.35

43

SCREW M6 - Call your local BRP dealership

420240940

$10.74

44

Grease, Super Lube

293550030

$24.67

45

O-RING - Call your local BRP dealership

420430900

$7.66

46

WATER PUMP GEAR, 28 TEETH - Call your local BRP dealership

420634430

$29.20

47

WATER PUMP ASS'Y - Call your local BRP dealership

420293419

Unavailable

48

Seal Washer

420230415

$1.77

49

STUD M8 X 151 - Call your local BRP dealership

420640240

$11.51

50

Loctite 243, 10 ml

293800060

$20.77

51

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

52

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

53

Dow Corning 111, 150 g

413707000

$57.82

54

Molykote G-N, 50 g

420297433

$22.72

55

Housing

A944500507150

Unavailable

56

Tie Rap

A90669179000

Unavailable
