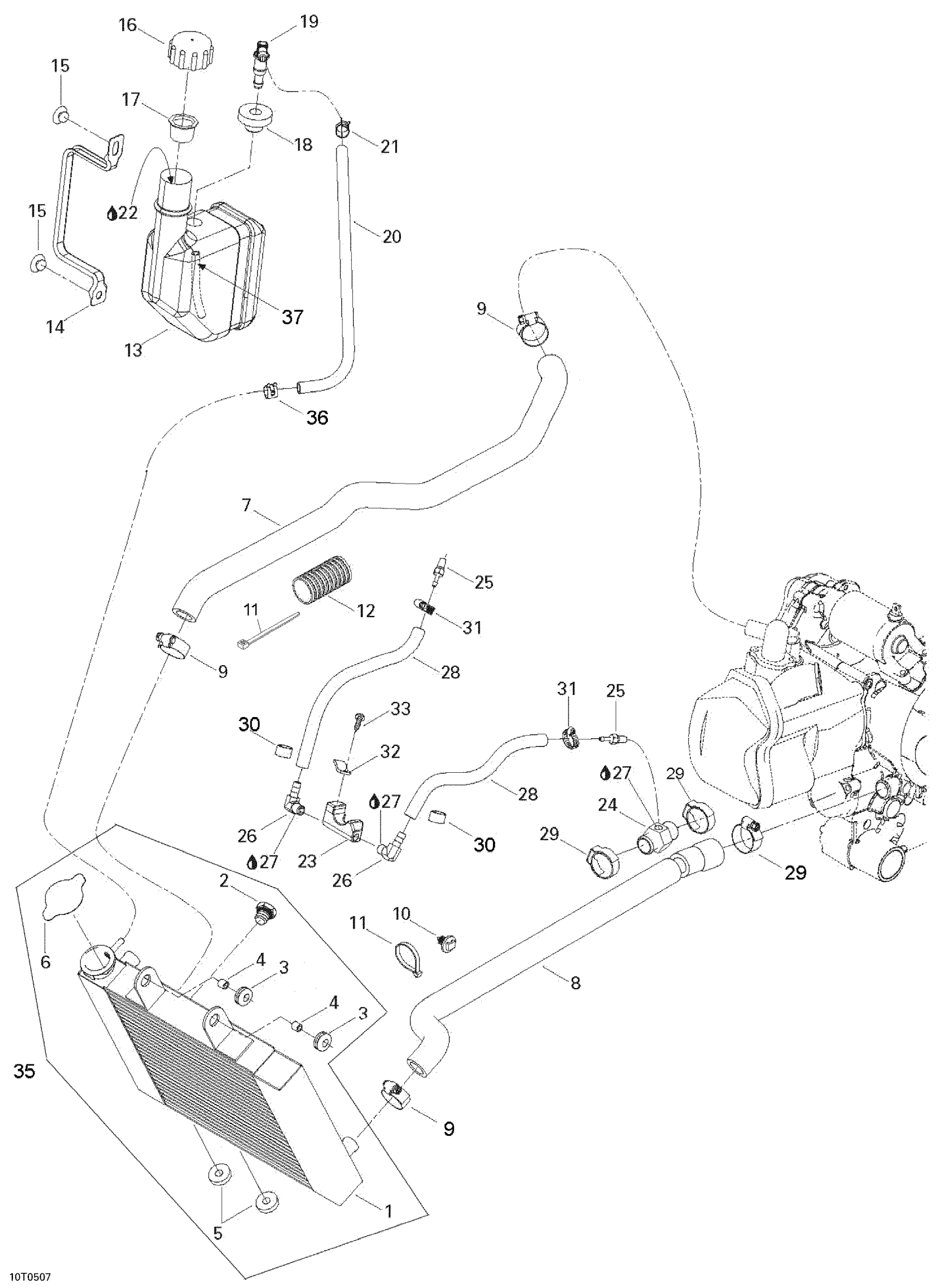

Can-Am Rally 175, 2005 Cooling System Diagram

#

Description
Price

1

Radiator

A19100179000

$359.97

2

PLUG - Call your local BRP dealership

250500006

$17.66

3

Oval Washer

705005156

$4.85

4

Bushing

293900105

$6.26

5

Grommet

709200285

$8.38

6

PRESSURE CAP - Call your local BRP dealership

A19110179000

$13.82

7

INLET RADIATOR HOSE - Call your local BRP dealership

709200066

$23.05

8

OUTLET RADIATOR HOSE - Call your local BRP dealership

709200067

$23.05

9

Tridon Gear Clamp

293650051

$3.61

10

Mount Dart

293730040

$0.86

11

Tie-Rap 180 mm

414115200

$0.09

12

PROTECTION SHIELD - Call your local BRP dealership

709200031

Unavailable

13

COOLANT TANK - Call your local BRP dealership

A19200179000

$39.20

14

TANK ANCHOR - Call your local BRP dealership

709200080

$6.49

15

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

16

TANK CAP - Call your local BRP dealership

A19210179000

Unavailable

17

PROTECTION CAP - Call your local BRP dealership

709200205

$3.08

18

Grommet

709200285

$8.38

19

Elbow Male Connector

414580600

$3.50

20

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

21

Spring Clamp

414554800

$0.83

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Block Heater

709200096

Unavailable

24

ADAPTER - Call your local BRP dealership

709200097

$15.35

25

Male Connector

293710037

$7.23

26

Elbow Fitting

293700016

Unavailable

27

Was 293800013 Loctite 56765

219704454

$65.35

28

Hose

219704549

$47.66

29

Oetiker Clamp

293650141

$4.28

30

Oetiker Clamp

293650125

$2.69

31

Tridon Gear Clamp

293650170

$1.74

32

Lock

709200116

Unavailable

33

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Spring Clamp

414554800

$0.83

37

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

38

Gemi Clamp | Not Illustrated

A9451430000

Unavailable

39

Gemi Clamp | Not Illustrated

A9451425000

Unavailable
