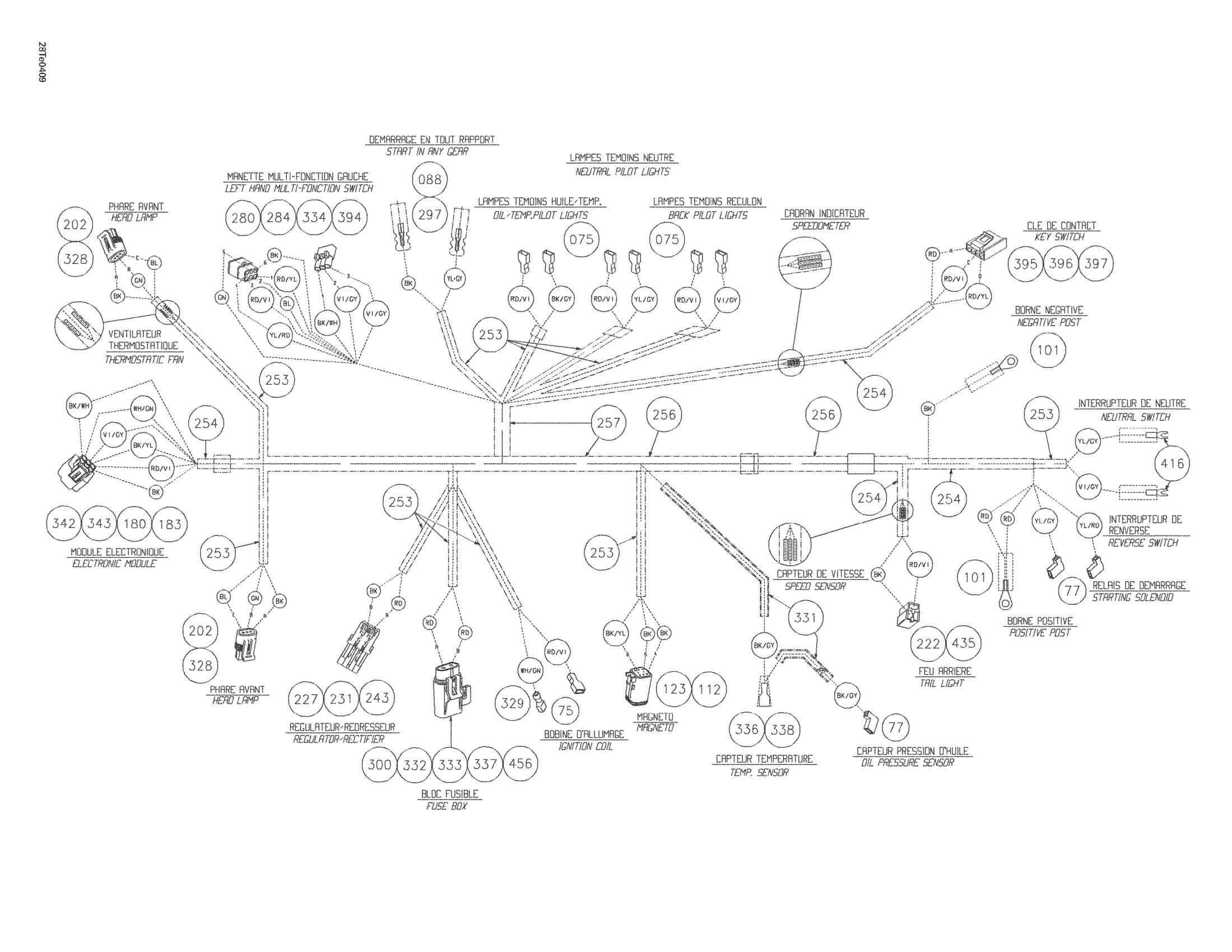

Can-Am Rally 175, 2004 Main Harness Diagram

Harness Ass’y | Includes 75 - 456.

710000379

Unavailable

Female Terminal

409010700

$4.93

Female Terminal

409010300

$4.00

Female Terminal | DS 650 X

278001009

$2.55

Open Barrel Terminal

278001392

$4.00

Female Terminal

278000632

$1.69

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

FEMALE TERMINAL - Call your local BRP dealership

278001638

Unavailable

WIRE SEAL - Call your local BRP dealership

710000189

Unavailable

Female Terminal

278001114

$2.55

Female Housing

409204300

Unavailable

Male Terminal

409004300

$5.30

Female Housing, 2 Circuits

278000217

$7.59

Wire Seal

278000218

$3.48

Tubing 6 Mm 3000Mm Long

219704425

$12.75

Was 409901700 Tubing (9 mm)

219704399

$77.58

Tubing 16 Mm 1000Mm Long

219704408

$6.23

Was 409901600 Tubing 19mm

219704398

$87.28

Female Terminal

409012100

$3.73

Seal

409012300

$4.25

Insulated Sheath

278001007

$3.12

Fuse, 15 Amperes

278000343

$2.72

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278001467

Unavailable

Female Terminal

710000082

$5.85

PROTECTOR TUBE, 4MM 1000MM LONG - Call your local BRP dealership

219704446

Unavailable

Fuse Holder Cap

278001326

$5.85

Fuse Holder

278001325

$8.31

Female Housing, 6 Circuits

710000081

$7.88

Rubber Envelope Terminal

710000115

Unavailable

Female Terminal

710000113

$5.85

FEMALE TERMINAL - Call your local BRP dealership

710000114

Unavailable

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710000190

Unavailable

LOCK, 6 CIRCUITS - Call your local BRP dealership

710000191

Unavailable

Female Terminal Housing, 3 Circuits

710000275

Unavailable

Female Terminal

710000274

$8.72

Female Terminal Housing, 4 Circuits

710000272

$9.84

Lock, 4 Circuits

710000273

$8.72

Spade Terminal

710000289

Unavailable

Cushion

278000805

$3.12
