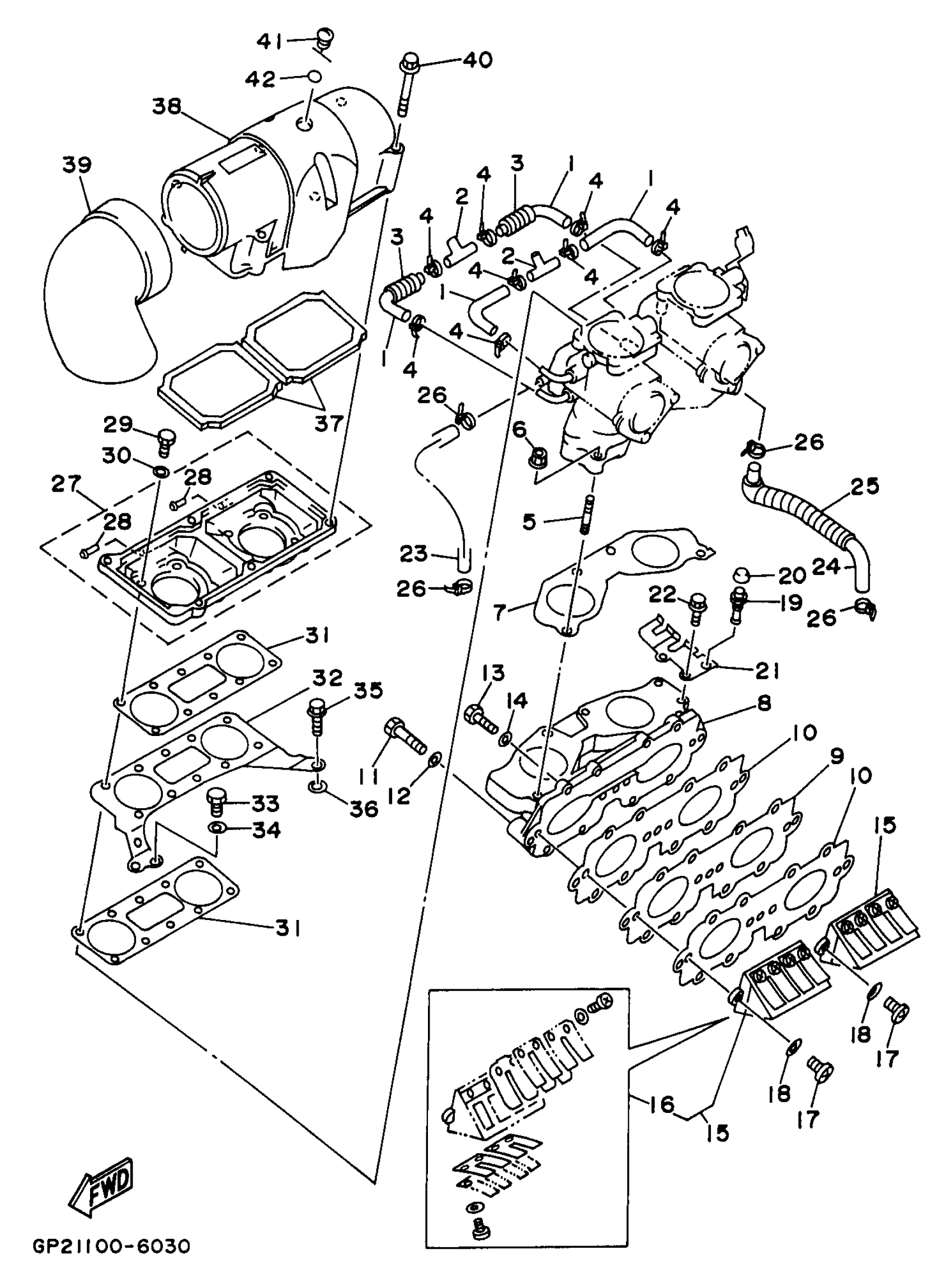

Yamaha RA760U (WAVE RAIDER 760) 1996 INTAKE Diagram

#

Description
Price

1

PIPE 3

64X-24313-01-00

Unavailable

2

PIPE, JOINT 3

688-24378-00-00

$12.23

3

HOSE(64X)

90446-14M66-00

$7.39

4

CLAMP

90465-10098-00

$1.68

5

BOLT,STUD

90116-08M55-00

Unavailable

6

NUT

90179-08M15-00

$6.37

7

. GASKET, MANIFOLD

64X-13556-00-00

$11.85

8

MANIFOLD, INTAKE

64X-13555-00-94

Unavailable

9

. PLATE,REED VALVE

62T-13624-00-00

$19.68

10

. GASKET

62T-13566-00-00

$8.88

11

BOLT(3RV)

97014-06035-00

$1.54

12

WASHER, PLAIN (646)

92990-06600-00

$1.84

13

BOLT(62Y)

97013-06025-00

$1.35

14

WASHER, PLAIN (646)

92990-06600-00

$1.84

15

REED VALVE ASY

64X-13610-01-00

Unavailable

16

REED SET

64X-W0004-01-00

Unavailable

17

SCREW, PAN HEAD(6B0)

97885-05016-00

$4.09

18

WASHER, PLAIN (646)

92990-05600-00

Unavailable

19

NIPPLE, GREASE

61L-5169A-00-00

$7.40

20

CAP, GREASE NIPPLE

663-45119-01-00

Unavailable

21

PLATE

64X-14527-00-00

Unavailable

22

BOLT, WITH WASHER (97513-06516-00)

97514-06516-00

Unavailable

23

HOSE (L1040)

90445-10MA9-00

Unavailable

24

PIPE 4

64X-24314-01-00

Unavailable

25

HOSE(6TC)

90446-14M51-00

Unavailable

26

CLAMP

90465-10098-00

$1.68

27

COVER, CARBURETOR

64X-14284-01-8P

Unavailable

28

NIPPLE, HOSE

6E5-11372-01-00

$9.99

29

BOLT(62Y)

97013-06020-00

Unavailable

30

WASHER, PLAIN (646)

92990-06600-00

$1.84

31

. GASKET, AIR COOLER COVER 1

64X-13674-00-00

$5.91

32

PLATE

64X-14255-00-00

Unavailable

33

BOLT (661)

97013-06012-00

Unavailable

34

WASHER, PLAIN (646)

92990-06600-00

$1.84

35

BOLT

90109-06M66-00

$10.99

36

WASHER, PLATE

90201-06M31-00

$2.80

37

ELEMENT, AIR CLEANER

62T-14451-00-00

$38.49

38

COVER, CARBURETOR 1

64X-14283-01-00

Unavailable

39

PIPE

62T-14419-00-00

$78.77

40

BOLT, WITH WASHER

90119-05M02-00

$3.46

41

GROMMET

62T-14435-00-00

$3.70

42

. O-RING

93210-13M63-00

$3.52
