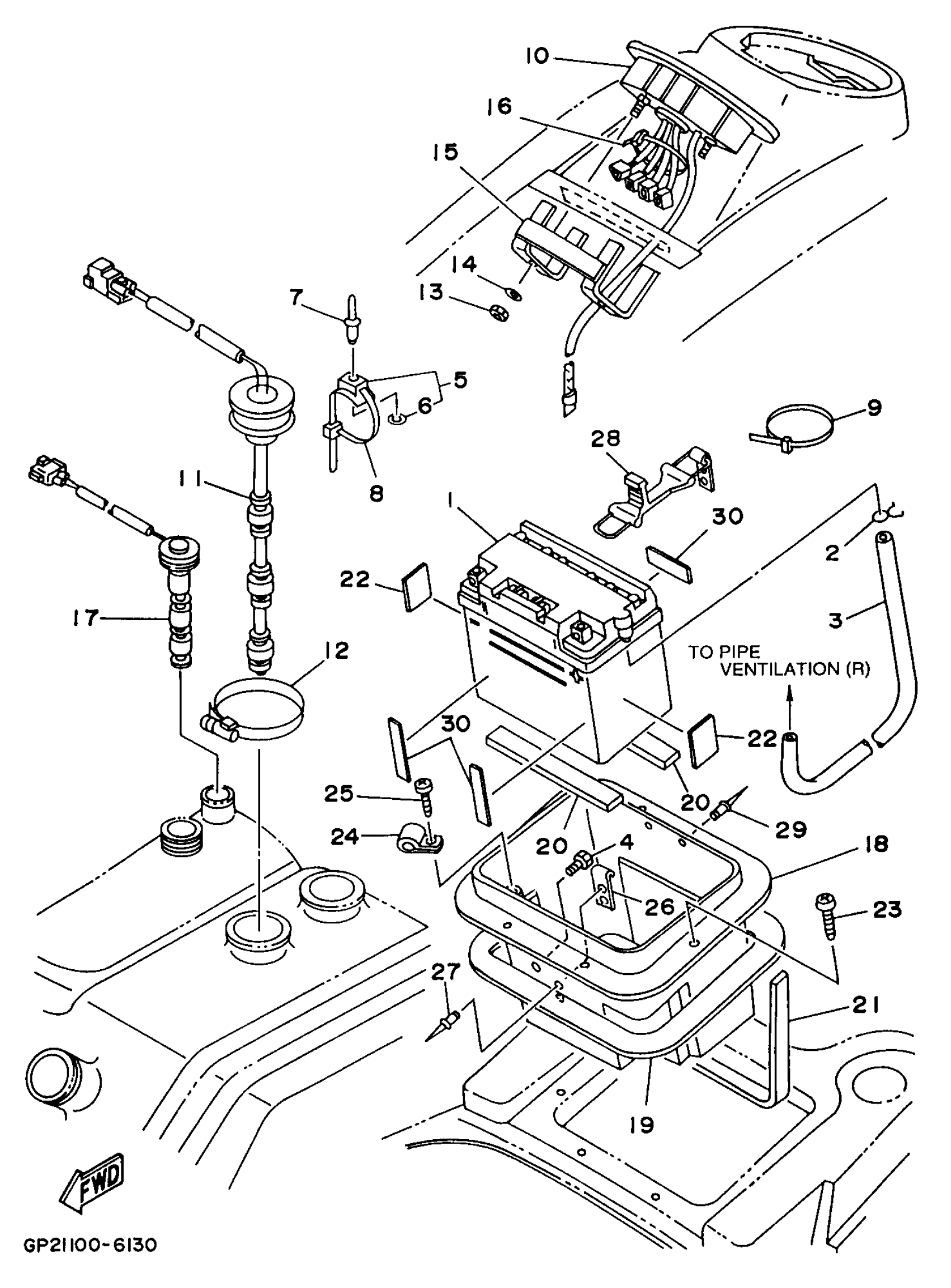

Yamaha RA760U (WAVE RAIDER 760) 1996 ELECTRICAL 2 Diagram

#

Description
Price

1

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

$101.75

2

CLIP

90467-08M10-00

Unavailable

3

HOSE, AIRVENT 3

GE1-U7856-30-00

Unavailable

4

BOLT, WITH WASHER

90119-08800-00

$4.09

5

CLAMP COMP (EU0)

90600-91736-00

$6.22

6

. WASHER, PLAIN

90201-05925-00

Unavailable

7

RIVET, BLIND

90267-48802-00

$1.98

8

BAND (EU0)

90601-20009-00

$6.36

9

CLAMP (6E5)

90465-13M11-00

$5.31

10

METER ASY

GH3-6820A-20-00

Unavailable

11

SENDER, FUEL

GJ1-6824B-00-00

Unavailable

12

BAND, HOSE 62

90601-162U5-00

$6.17

13

NUT, FLANGE

95720-05300-00

$1.28

14

. WASHER, PLAIN

92990-05200-00

$4.29

15

BRACKET, METER

GJ1-68238-00-00

Unavailable

16

BAND (EU0)

90601-20009-00

$6.36

17

SENDER, OIL

GJ1-6824C-01-00

Unavailable

18

BATTERY CASE COMP.

GP2-U8211-00-00

Unavailable

19

PACKING 3

GJ1-6266B-00-00

Unavailable

20

PAD, BATTERY 1

FJ0-68221-00-00

Unavailable

21

PAD, BATTERY 2

FJ0-68221-30-00

Unavailable

22

PAD, BATTERY

GJ1-U8221-00-00

Unavailable

23

SCREW

90149-05984-00

$2.73

24

CLAMP

90600-913U2-00

Unavailable

25

SCREW, TAPPING

97780-40116-00

$3.57

26

HOOK A

GA7-65772-00-00

$9.08

27

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

28

HOOK COMP

GJ1-66607-00-00

Unavailable

29

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

30

MAT 3

EU0-67593-40-00

Unavailable
