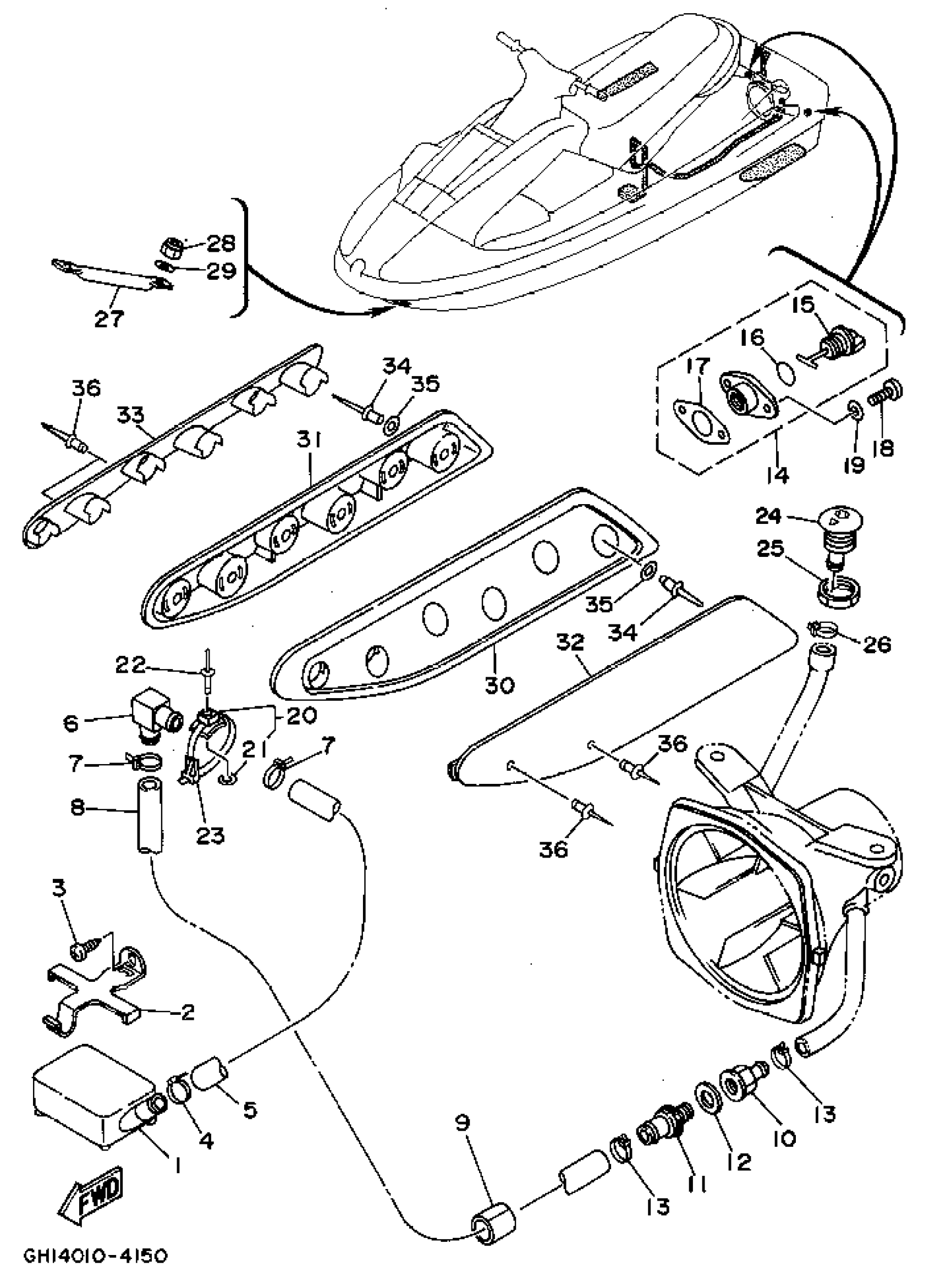

Find the part on the Hull - Deck diagram for your 1994 Yamaha Wave Raider (RA700S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Yamaha Wave Raider (RA700S) Hull - Deck Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STRAINER, BILGE

GD0-6761D-00-00

1

$58.99

In stock

2

BASE, STRAINER BLIGE

EW2-67618-00-00

1

$37.39

In stock

3

1

$4.15

In stock

4

BAND

90601-200U1-00

1

$2.89

In stock

5

HOSE

90445-19M01-00

1
Out of stock

6

JOINT, HOSE

61X-51162-00-00

1

$18.99

In stock

7

CLAMP

90465-10098-00

1

$2.24

In stock

8

HOSE

90445-19M04-00

1
Out of stock

9

PACKING, HOSE 2

GH1-67578-01-00

1
Out of stock

10

CONNECTION, THRU-HULL 1/4

90604-80759-00

1

$18.99

In stock

11

—

$16.48

In stock

12

GASKET

90430-13909-00

1
Out of stock

13

BAND

90601-200U1-00

1

$2.89

In stock

14

DRAIN PLUG ASSY

EU0-62280-00-00

1

$28.23

In stock

15

. PLUG, DRAIN

EU0-62282-00-00

1

$7.91

In stock

16

. O-RING

EU0-62283-00-00

1

$3.95

In stock

17

. PACKING DRAIN (EU0)

EU0-62285-01-00

1

$6.00

In stock

18

SCREW, TAPPING

97780-50620-00

1

$2.94

In stock

19

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

20

CLAMP COMP (EU0)

90600-91736-00

—

$6.68

In stock

21

. WASHER, PLAIN

90201-05925-00

1
Out of stock

22

RIVET, BLIND

90267-48802-00

1

$2.06

In stock

23

BAND (EU0)

90601-20009-00

1

$6.46

In stock

24

SPOUT

FN8-6269B-00-00

1

$17.81

In stock

25

NUT

EU0-61652-00-00

1

$12.27

In stock

26

CLAMP

90465-10098-00

1

$2.24

In stock

27

BOWEYE 1

FN8-U1624-00-00

1
Out of stock

28

. NUT, SELF-LOCKING

95720-08300-00

1

$4.15

In stock

29

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

30

STABILIZER LH

GH1-6883N-01-00

1
Out of stock

31

STABILIZER RH

GH1-6883P-01-00

1
Out of stock

32

CAP, STABILIZER LH

GH1-6883R-01-00

1
Out of stock

33

CAP, STABILIZER RH

GH1-6883S-01-00

1
Out of stock

34

RIVET, BLIND

90267-489U8-00

1

$1.54

In stock

35

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

36

. RIVET, BLIND

90267-48948-00

1
Out of stock
