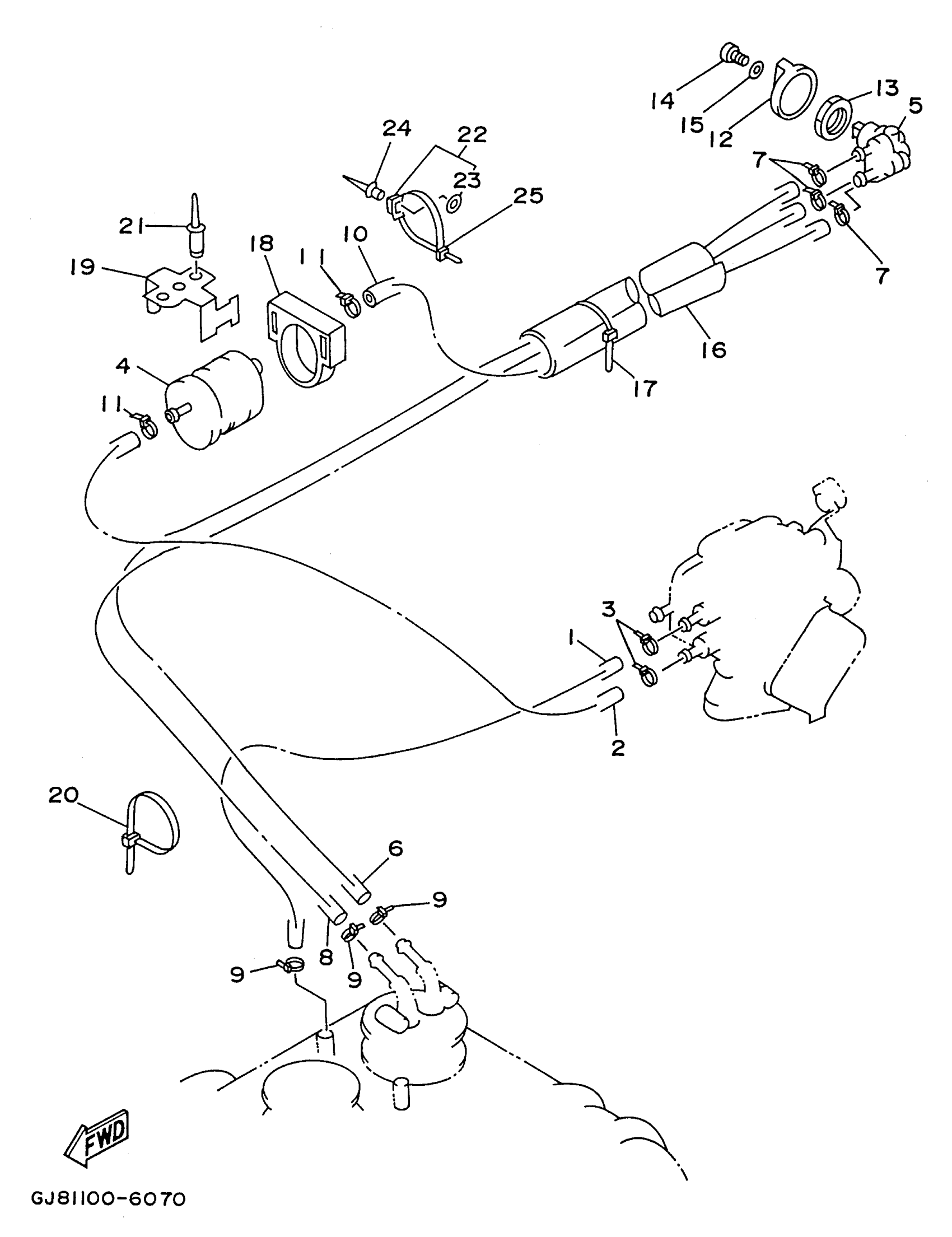

Yamaha RA700BU (WAVE RAIDER 700) 1996 FUEL Diagram

#

Description
Price

1

HOSE (L1040)

90445-10MA9-00

$56.27

2

HOSE (L590)

90445-10020-00

Unavailable

3

CLAMP

90465-10098-00

$1.68

4

FILTER ASSY

6K8-24560-21-00

$28.64

5

FUEL COCK ASSY 1

6K8-24500-03-00

Unavailable

6

HOSE (L1700)

90445-10M87-00

Unavailable

7

CLAMP

90465-10098-00

$1.68

8

HOSE (L1700)

90445-10M87-00

Unavailable

9

CLAMP

90465-10098-00

$1.68

10

HOSE (L1700)

90445-10M87-00

Unavailable

11

CLAMP

90465-10098-00

$1.68

12

LEVER, COCK

6K8-24524-10-00

$11.84

13

NUT

90170-22M11-00

Unavailable

14

SCREW, PAN HEAD (E56)

98580-04010-00

$5.75

15

WASHER, PLAIN (646)

92990-04600-00

$0.91

16

PROTECTOR, HOSE

GJ1-U773J-00-00

Unavailable

17

BAND

90601-20024-00

$6.36

18

HOLDER

EU0-67817-00-00

$13.33

19

BRACKET, FUEL FILTER

FN8-67816-00-00

$16.99

20

BAND

90601-200U1-00

$2.77

21

RIVET (EU0)

90267-48938-00

$5.00

22

CLAMP COMP (EU0)

90600-91736-00

Unavailable

23

. WASHER, PLAIN

90201-05925-00

Unavailable

24

RIVET, BLIND

90267-48802-00

$1.98

25

BAND (EU0)

90601-20009-00

$6.36
