1996 Yamaha Wave Raider 700 (RA700BU) Engine Hatch Diagram

← All diagrams

Find the part on the Engine Hatch diagram for your 1996 Yamaha Wave Raider 700 (RA700BU), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

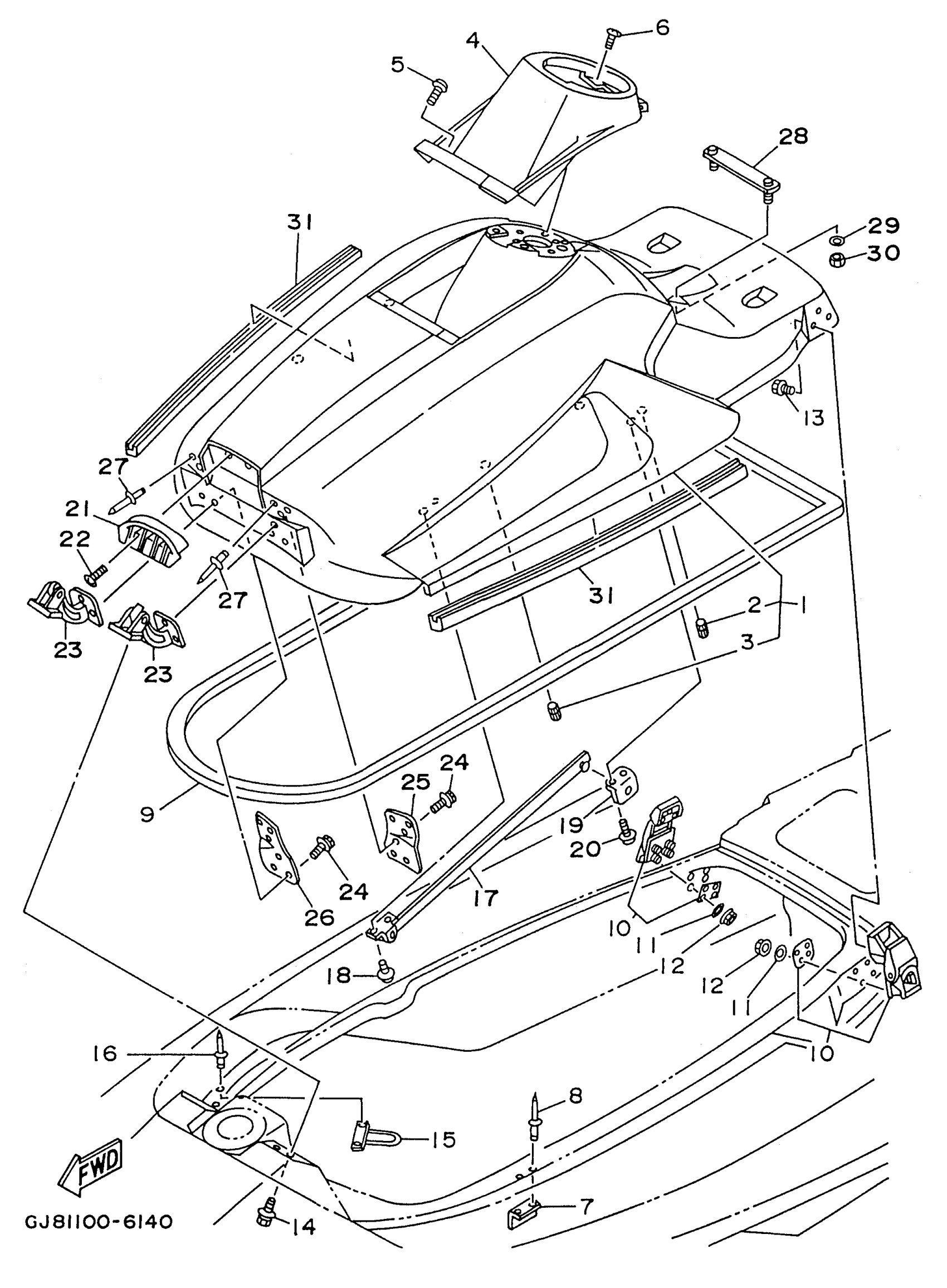

1996 Yamaha Wave Raider 700 (RA700BU) Engine Hatch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE HATCH COMP.

GJ8-U516A-00-P0

1
Out of stock

2

NUT

90179-069U4-00

1
Out of stock

3

. NUT

90179-08927-00

1
Out of stock

4

COVER, ENGINE HATCH

GH1-6516N-20-00

1
Out of stock

5

SCREW(GH1)

90149-05903-00

1

$2.48

In stock

6

SCREW

90149-05984-00

1

$2.77

In stock

7

BRACKET, HATCH SUPPORT

FN8-62884-00-00

1
Out of stock

8

RIVET, BLIND

90267-489U2-00

1

$1.62

In stock

9

PACKING

GJ1-U2664-00-00

1
Out of stock

10

HATCH LOCK ASSY

GJ1-62840-01-00

1
Out of stock

11

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

12

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

13

BOLT, WITH WASHER

90119-05935-00

1
Out of stock

14

BOLT,WITH WASHER

90119-06940-00

1
Out of stock

15

GUIDE, CABLE

GH1-61557-00-00

1
Out of stock

16

RIVET, BLIND

90267-489U2-00

1

$1.62

In stock

17

SUPPORT, HATCH

GH1-62891-01-00

1
Out of stock

18

SCREW, WITH WASHER

90159-06901-00

1

$9.22

In stock

19

FIX, PLATE

FN8-62892-00-00

1
Out of stock

20

SCREW, WITH WASHER

90159-06901-00

1

$9.22

In stock

21

UNIVERSAL, AIR INTAKE

GH1-62128-20-00

1
Out of stock

22

SCREW

90149-04902-00

1
Out of stock

23

HINGE, HATCH

GH1-6517G-04-00

1
Out of stock

24

BOLT,WITH WASHER

90119-06940-00

1
Out of stock

25

PLATE,HINGE (LH)

GH1-6517J-01-00

1
Out of stock

26

PLATE, HINGE (RH)

GH1-6517K-01-00

1
Out of stock

27

RIVET (EU0)

90267-48938-00

1

$5.08

In stock

28

STAY, SEAT 1

GH1-6378C-00-00

1
Out of stock

29

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

30

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

31

TRIM

GH1-65162-01-00

1
Out of stock
