1996 Yamaha Wave Raider 700 (RA700BU) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 1996 Yamaha Wave Raider 700 (RA700BU), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

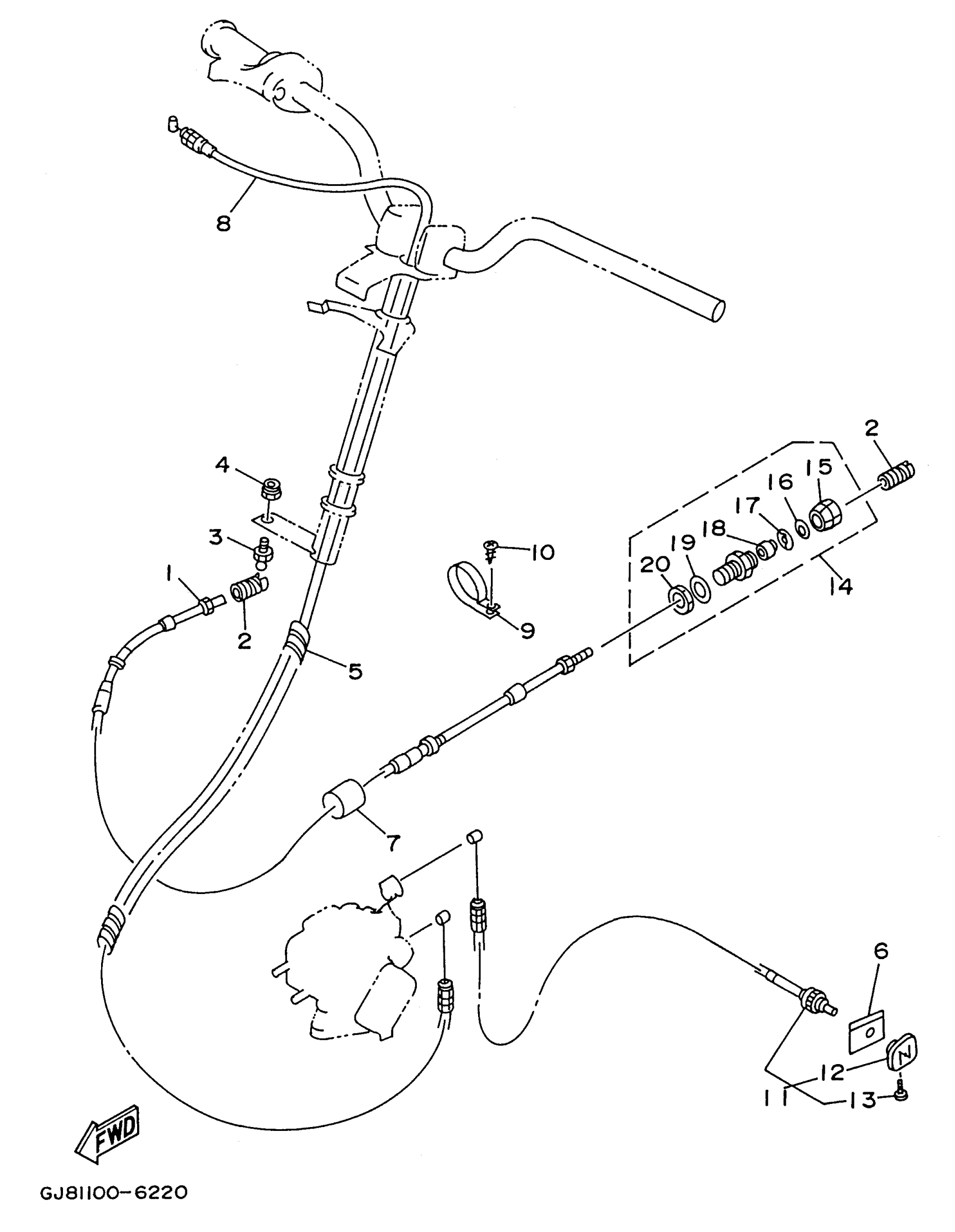

1996 Yamaha Wave Raider 700 (RA700BU) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, STEERING

GH6-U1481-00-00

1
Out of stock

2

SHAFT,JOINT BALL

EU0-61461-30-00

1

$45.13

In stock

3

SHAFT, JOINT BALL

EU0-U1461-10-00

1

$29.91

In stock

4

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

5

SPIRAP 11

90699-36U01-00

1
Out of stock

6

PLATE,CHOKE

GJ1-6824D-01-00

1

$13.99

In stock

7

PACKING, HOSE 2

GJ1-67578-20-00

1

$8.45

In stock

8

CABLE, THROTTLE 1

EU0-U7252-01-00

1

$131.70

In stock

9

CLIP, NYLON 18

90600-918U3-00

1
Out of stock

10

1

$2.22

In stock

11

CABLE, CHOKE

FN8-U7242-00-00

1
Out of stock

12

KNOB, CHOKE

GP7-U724C-00-00

1
Out of stock

13

SCREW, KNOB

GP7-U724D-00-00

1
Out of stock

14

CONNECTOR, CABLE

EU0-67267-00-00

1

$43.19

In stock

15

. CAP

EU0-62694-00-00

1

$14.49

In stock

16

. WASHER 30

EU0-61446-00-00

1

$4.62

In stock

17

. STOPPER

EU0-61486-00-00

1

$5.93

In stock

18

. SEAL, PIPE 30

EU0-61435-00-00

1

$8.70

In stock

19

. PACKING (C)

EU0-61438-00-00

1

$8.45

In stock

20

. NUT, DRAIN 1

EU0-62241-30-00

1

$10.49

In stock
