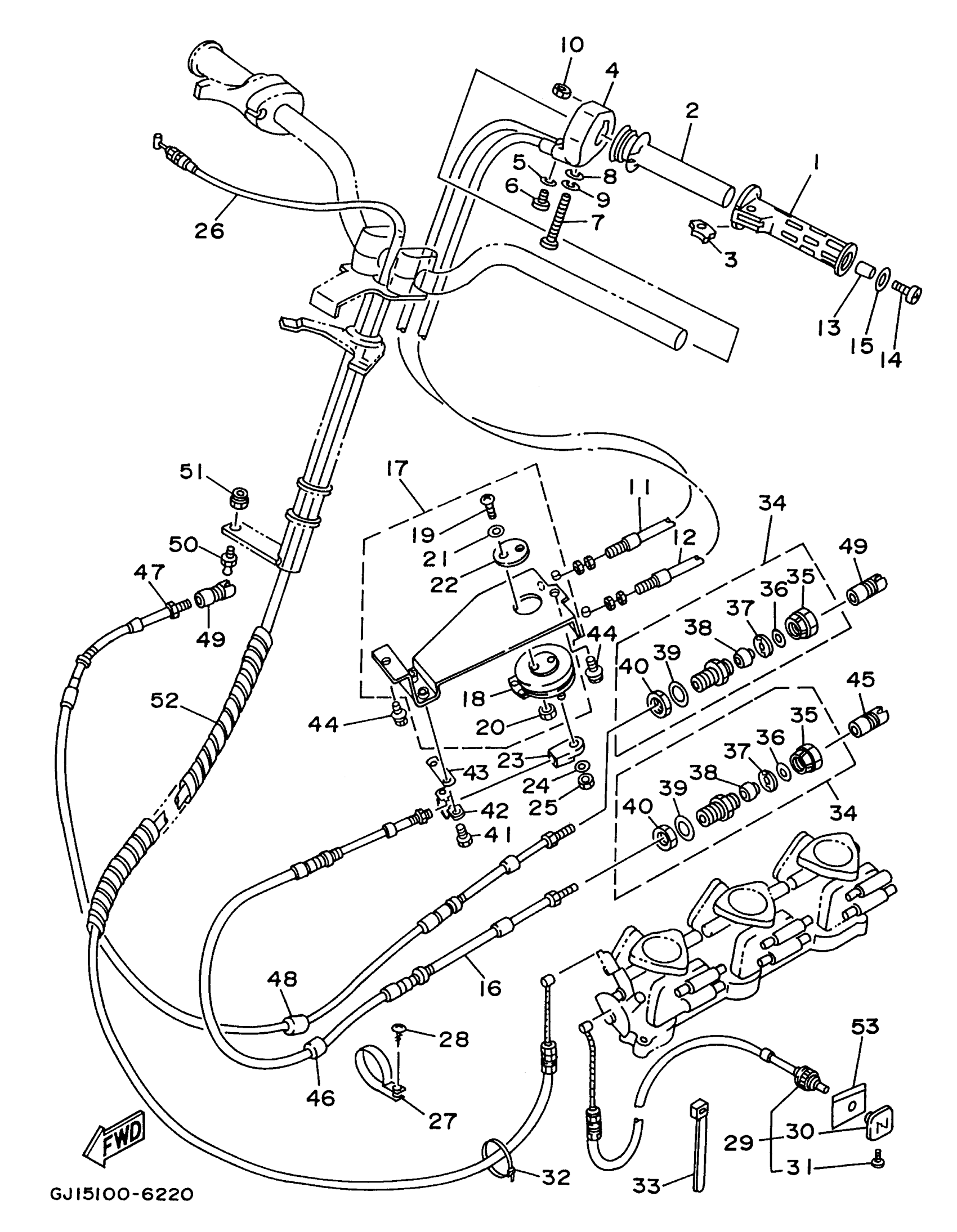

Yamaha RA1100U (WAVE RAIDER 1100) 1996 CONTROL CABLE Diagram

#

Description
Price

1

GRIP, HANDLE

GH1-6155C-00-00

Unavailable

2

GRIP, INNER

GH1-6155B-00-00

Unavailable

3

. LEVER ASSEMBLY

GH1-6151M-00-00

Unavailable

4

HOUSING ASSEMBLY

GH1-6152M-01-00

Unavailable

5

WASHER, PLAIN (646)

92990-04600-00

$0.91

6

SCREW, BINDING (M01)

98980-04010-00

$5.02

7

SCREW PAN HEAD

98580-06565-00

Unavailable

8

WASHER, PLAIN (646)

92990-06600-00

$1.84

9

WASHER, SPRING

92995-06100-00

$2.95

10

NUT, SPECIAL

GH1-6143B-00-00

Unavailable

11

CABLE, NOZZLE CONTROL 2

GH1-6153D-00-00

Unavailable

12

CABLE, NOZZLE CONTROL 2

GH1-6153D-10-00

Unavailable

13

COLLAR(GH1)

90387-05916-00

Unavailable

14

SCREW (FJ0)

90149-05960-00

$2.69

15

WASHER, PLATE

90201-05800-00

$0.65

16

CABLE, NOZZLE CONTROL 3

GJ1-6153E-01-00

Unavailable

17

REM.CON.NOZZLE 2

GH1-6153J-01-00

Unavailable

18

WHEEL ASY

GH1-6153M-01-00

Unavailable

19

SCREW, PAN HEAD(6A1)

97885-05020-00

$3.65

20

NUT, HEXAGON (663)

95380-05600-00

Unavailable

21

WASHER, TOOTH

92990-05300-00

Unavailable

22

. WASHER 3

EL8-48193-00-00

$12.86

23

END, CABLE

GH1-6046C-00-00

Unavailable

24

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

25

NUT, FLANGE

95780-06300-00

$7.14

26

CABLE, THROTTLE

GJ1-U7252-00-00

Unavailable

27

CLIP, NYLON 18

90600-918U3-00

Unavailable

28

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

Unavailable

29

CABLE,CHOKE

GJ1-YU724-02-00

Unavailable

30

KNOB, CHOKE

GP7-U724C-00-00

Unavailable

31

SCREW, KNOB

GP7-U724D-00-00

Unavailable

32

BAND

90601-200U1-00

$2.77

33

BAND (EU0)

90601-20009-00

$6.36

34

CONNECTOR, CABLE

EU0-67267-00-00

$35.71

35

. CAP

EU0-62694-00-00

$10.74

36

. WASHER 30

EU0-61446-00-00

$4.55

37

. STOPPER

EU0-61486-00-00

$6.82

38

. SEAL, PIPE 30

EU0-61435-00-00

$10.99

39

. PACKING (C)

EU0-61438-00-00

$8.32

40

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

41

BOLT(GH1)

97080-06012-00

$2.56

42

CLAMP, CABLE

GH1-6043H-00-00

Unavailable

43

SHIM, CABLE

GH1-6043J-00-00

Unavailable

44

BOLT, WITH WASHER

90119-06908-00

$2.57

45

SHAFT,JOINT BALL

EU0-61461-30-00

$45.13

46

PACKING, HOSE 2

GJ1-67578-20-00

$8.32

47

CABLE, STEERING

GJ1-U1481-00-00

Unavailable

48

PACKING, HOSE 2

GJ1-67578-20-00

$8.32

49

SHAFT,JOINT BALL

EU0-61461-30-00

$45.13

50

SHAFT, JOINT BALL

EU0-U1461-10-00

$27.27

51

NUT, SELF-LOCKING

95720-06300-00

$1.82

52

SPIRAP 11

90699-36U01-00

Unavailable

53

PLATE,CHOKE

GJ1-6824D-01-00

$13.99
