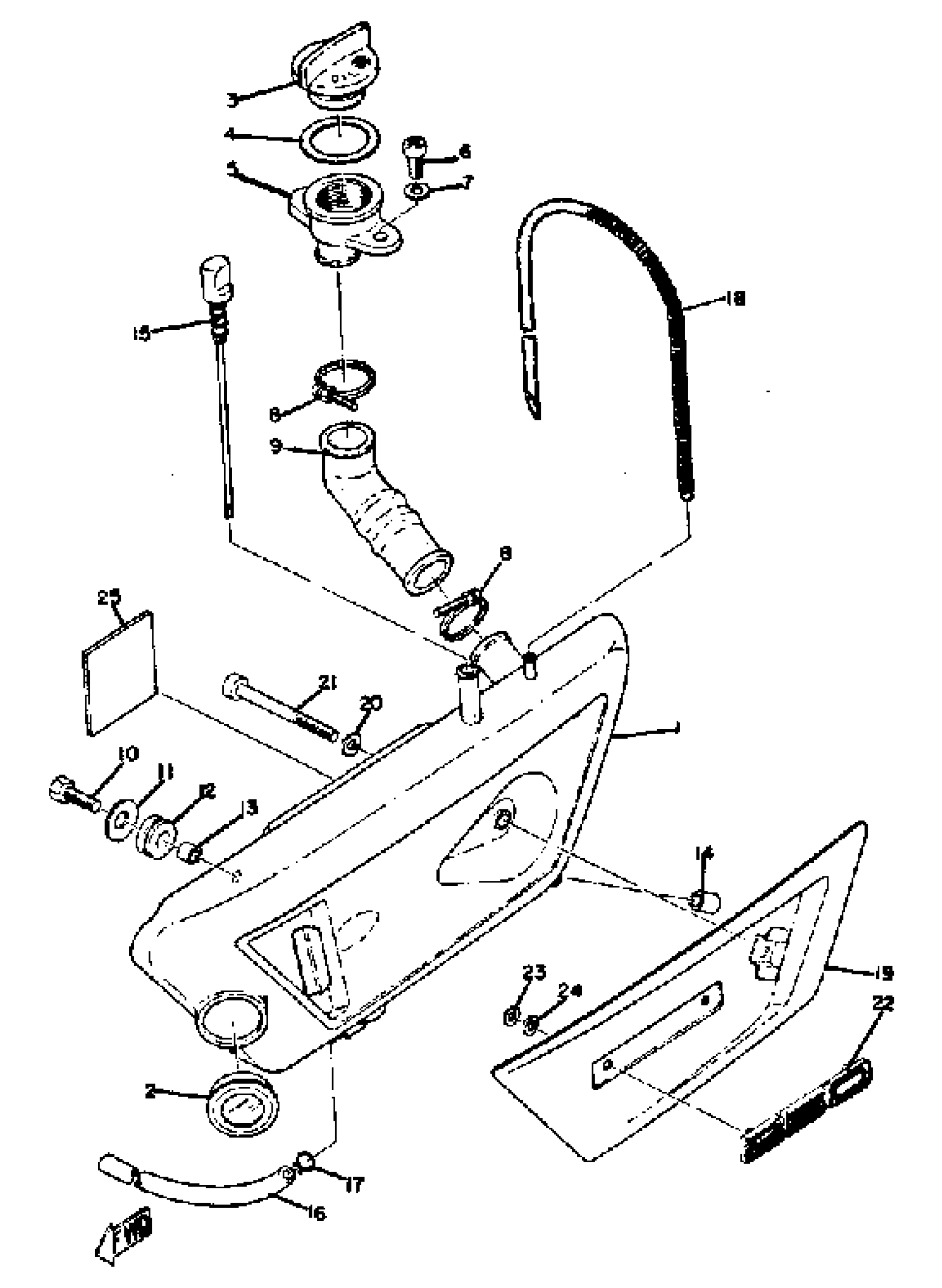

Yamaha R5 (R5) 1970 OIL TANK Diagram

#

Description
Price

1

OIL TANK ASSEMBLY

(278-21705-00-34)

Unavailable

1

OIL TANK ASSEMBLY

(278-21705-00-71)

Unavailable

2

GAUGE, LEVEL

214-21761-00-00

Unavailable

3

BODY, OIL TANK CAP

1A0-21771-00-00

$35.99

4

GASKET 214217720000

90430-29114-00

$8.49

5

TUBE, FILLER 1

278-21752-00-00

Unavailable

6

SCREW PAN HEAD

98580-06020-00

$8.49

7

WASHER, SPRING

92995-06100-00

Unavailable

8

CLAMP, HOSE

(90460-24005-00)

Unavailable

9

BOSS, CONNECTOR

(278-21753-00-00)

Unavailable

10

BOLT, HEXAGON

97017-06020-00

$4.06

11

WASHER, PLATE

90201-06380-00

$0.60

12

GROMMET 839774310000

90480-14023-00

$7.49

13

COLLAR (J10)

90387-06026-00

$8.49

14

DAMPER, OIL TANK

437-21779-00-00

Unavailable

15

GAUGE, OIL

1A0-21792-00-00

Unavailable

16

HOSE (L700)

90445-09122-00

Unavailable

17

CLIP 101235600

90467-08003-00

Unavailable

18

PIPE, OIL TNK BRTHR

(278-21745-00-00)

Unavailable

19

COVER

(278-21788-00-34)

Unavailable

19

COVER

(278-21788-00-71)

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

SCREW PAN HEAD

98580-06565-00

Unavailable

22

EMBLEM 6

(278-21786-02-71)

Unavailable

22

EMBLEM 6

(278-21786-02-93)

Unavailable

23

NUT SPRING 116283170100

90183-04005-00

Unavailable

24

WASHER PLATE 174283160000

90202-04003-00

Unavailable

25

SEAL

(214-21268-00-00)

Unavailable
