1970 Yamaha R5 (R5) Oiil Pump Diagram

← All diagrams

Find the part on the Oiil Pump diagram for your 1970 Yamaha R5 (R5), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

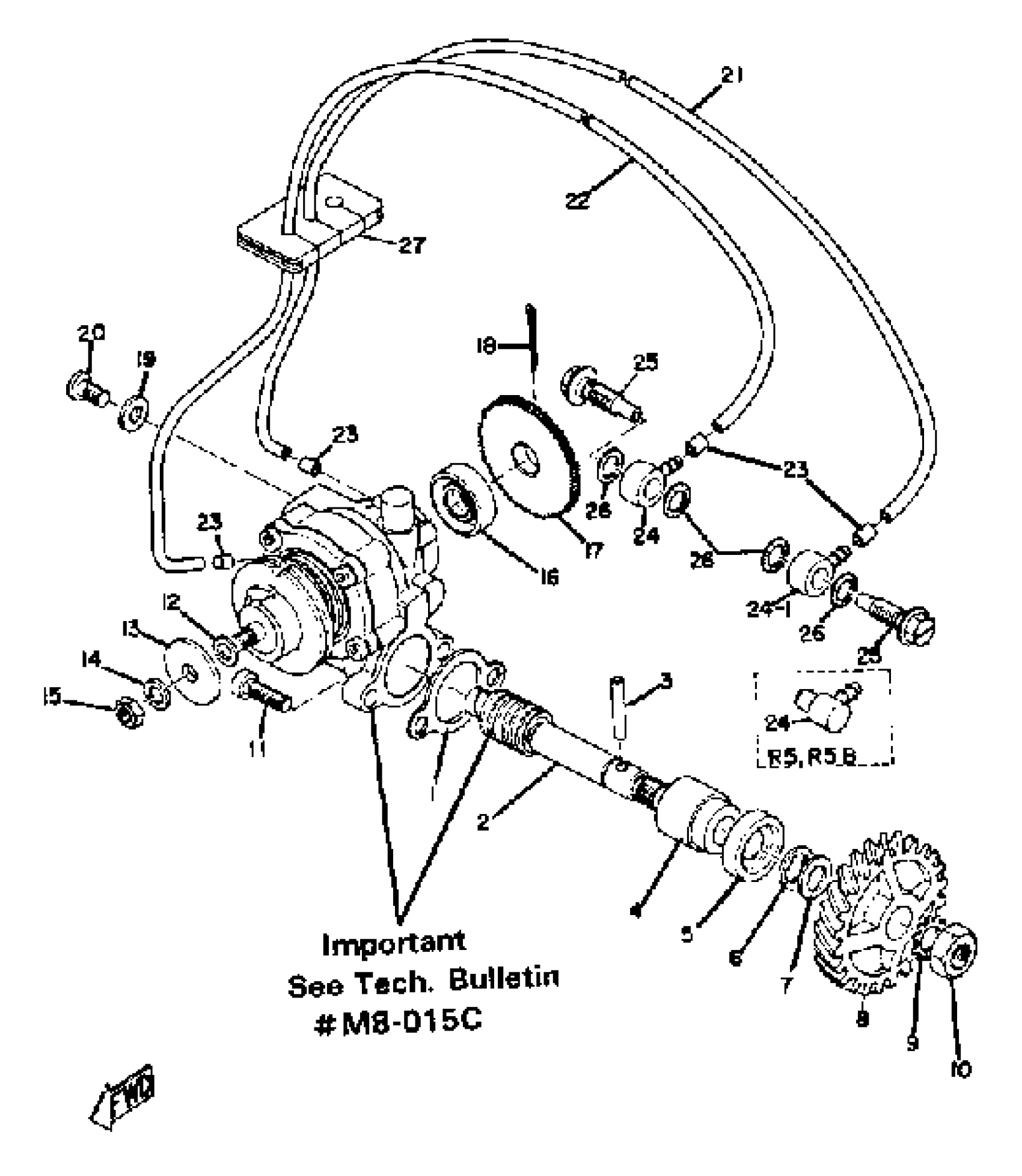

1970 Yamaha R5 (R5) Oiil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BANJO, DELIVERY PIPE

214-13162-01-00

1

$26.11

In stock

1

OIL PUMP ASSEMBLY

(360-13101-01-00)

1
Out of stock

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

2

SHAFT, WORM (278-13175-00)

278-13175-01-00

1
Out of stock

3

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

4

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

5

OIL SEAL (10X22X7-137)

93101-10002-00

1

$6.68

In stock

6

CIRCLIP(2R6)

99001-08600-00

1
Out of stock

7

WASHER, PLATE(52H)

90201-105J4-00

1

$6.88

In stock

8

GEAR, PUMP DRIVE

278-13178-00-00

1
Out of stock

9

WASHER (688)

92990-08400-00

1

$3.46

In stock

10

. NUT

95380-08700-00

1

$3.07

In stock

11

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

12

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

13

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

15

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

16

OIL SEAL (J10)

93101-10090-00

—

$6.17

In stock

17

PLATE, STARTER

(137-13128-00-00)

1
Out of stock

18

. PIN, COTTER

91401-12018-00

1
Out of stock

19

GASKET 137131870000

90430-04004-00

—
Out of stock

20

SCREW, BIND

98980-04008-00

1

$3.26

In stock

21

HOSE (L700)

90445-05M07-00

1
Out of stock

22

HOSE (L700)

90445-05M07-00

1
Out of stock

23

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

24

NOZZLE

3XV-13741-00-00

1
Out of stock

25

BOLT UNION 137131650000

90401-06001-00

—

$7.48

In stock

26

GASKET(3FP)

90430-06224-00

—

$4.32

In stock

27

HOLDER, OIL PIPE

278-13174-00-00

1
Out of stock
