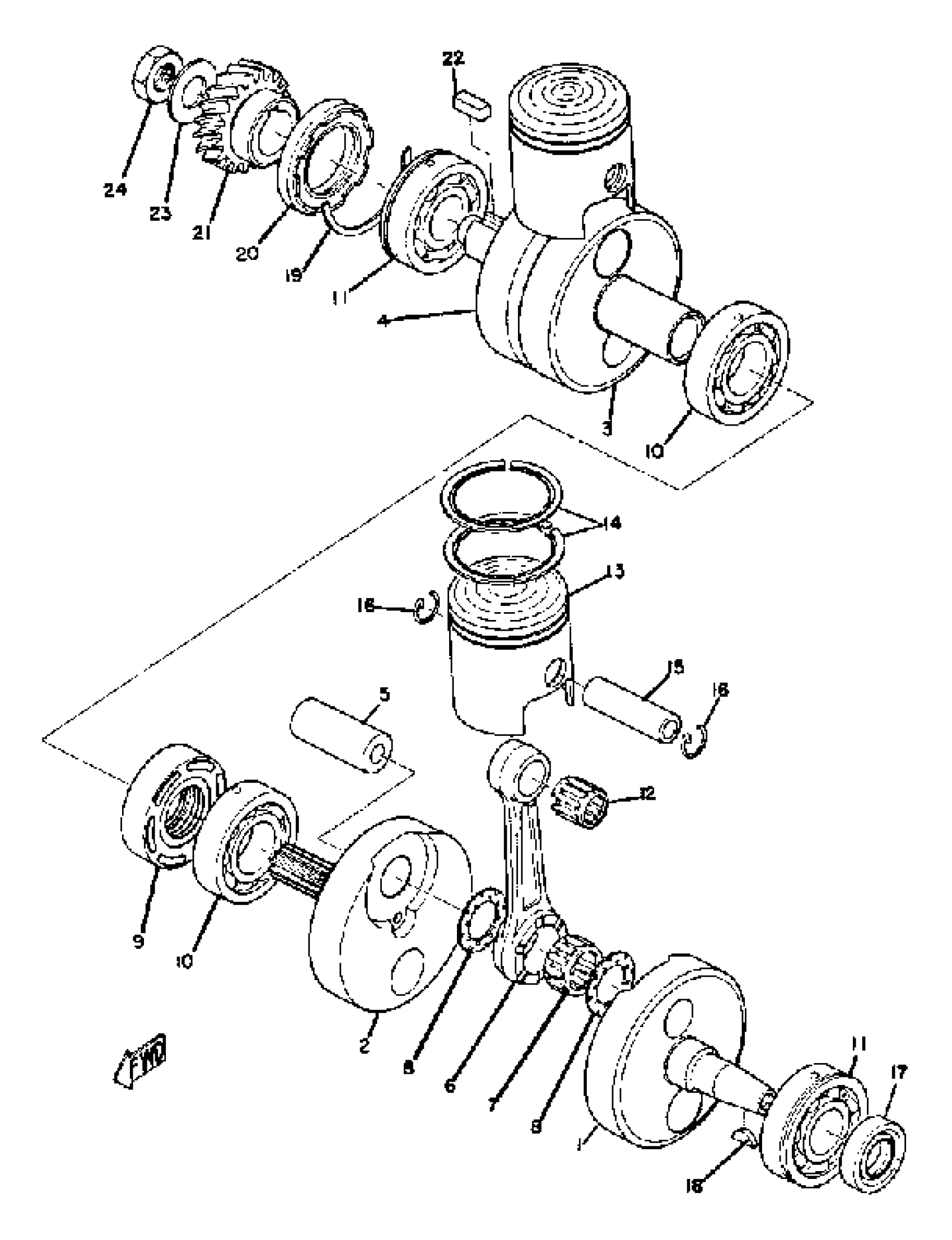

Yamaha R5 (R5) 1970 CRANKSHAFT - PISTON Diagram

#

Description
Price

1

CRANK 1

(278-11412-00-00)

Unavailable

1

CRANKSHAFT ASSEMBLY

(360-11400-00-00)

Unavailable

2

CRANK 2

(278-11422-00-00)

Unavailable

3

CRANK 3

(278-11432-00-00)

Unavailable

4

CRANK 4

(278-11442-00-00)

Unavailable

5

PIN, CRANK

8G8-11681-00-00

$58.99

6

ROD, CONNECTING

34X-11651-00-00

Unavailable

7

BEARING, CYLINDRICAL(3SB)

93310-422C8-00

$46.99

8

WASHER (29L)

90209-22248-00

Unavailable

9

. SEAL, LABYRINTH 1

278-11515-00-00

Unavailable

10

BRG,R-B 6206C3 62MM KY(4A0)

93306-20621-00

$79.99

11

BEARING(1UA)

93306-30549-00

$65.99

12

BRG,CYL-CAL ROLLER 14-7G KY

93310-216E1-00

$26.99

13

PISTON STD

278-11631-09-96

Unavailable

13

PISTON 1 O/S 0.25

278-11635-09-00

Unavailable

13

PISTON 2 O/S 0.50

278-11636-09-00

Unavailable

13

PISTON 3 O/S 0.75

278-11637-09-00

Unavailable

13

PISTON 4 O/S 1.00

278-11638-09-00

Unavailable

14

PISTON RINGSET STD

(278-11610-01-00)

Unavailable

14

PISTON RINGSET 1ST

278-11610-11-00

Unavailable

14

PISTON RINGSET 2ND

278-11610-21-00

Unavailable

14

PISTON RINGSET 3RD

278-11610-31-00

Unavailable

14

PISTON RINGSET 4TH

(278-11610-41-00)

Unavailable

14

PISTON RINGSET STD

360-11610-02-00

Unavailable

14

PISTON RINGSET 1ST

360-11610-12-00

Unavailable

14

PISTON RINGSET 2ND

360-11610-22-00

Unavailable

14

PISTON RINGSET 3RD

360-11610-32-00

Unavailable

14

PISTON RINGSET 4TH

360-11610-42-00

Unavailable

15

PIN, PISTON

4L0-11633-00-00

Unavailable

16

CIRCLIP (137-11634-00)

93450-17025-00

Unavailable

17

OIL SEAL, SW-TYPE

93103-20046-00

Unavailable

18

KEY,WOODRUFF

90280-04005-00

Unavailable

19

CIRCLIP

278-17424-01-00

Unavailable

20

OIL SEAL, SW-TYPE

(93103-40058-00)

Unavailable

21

GEAR, PRI DRIVE

(278-16111-01-00)

Unavailable

22

KEY, STRAIGHT (584)

90282-07023-00

Unavailable

23

SPRING

214-16119-00-00

Unavailable

24

NUT

90170-16425-00

Unavailable

25

PISTON KIT STD

(278-11630-01-00)

Unavailable

26

PISTON KIT 1ST

(278-11630-11-00)

Unavailable

27

PISTON 2 O/S 0.50

278-11636-09-00

Unavailable
