1969 Yamaha R3 (R3) Front Wheel Diagram

← All diagrams

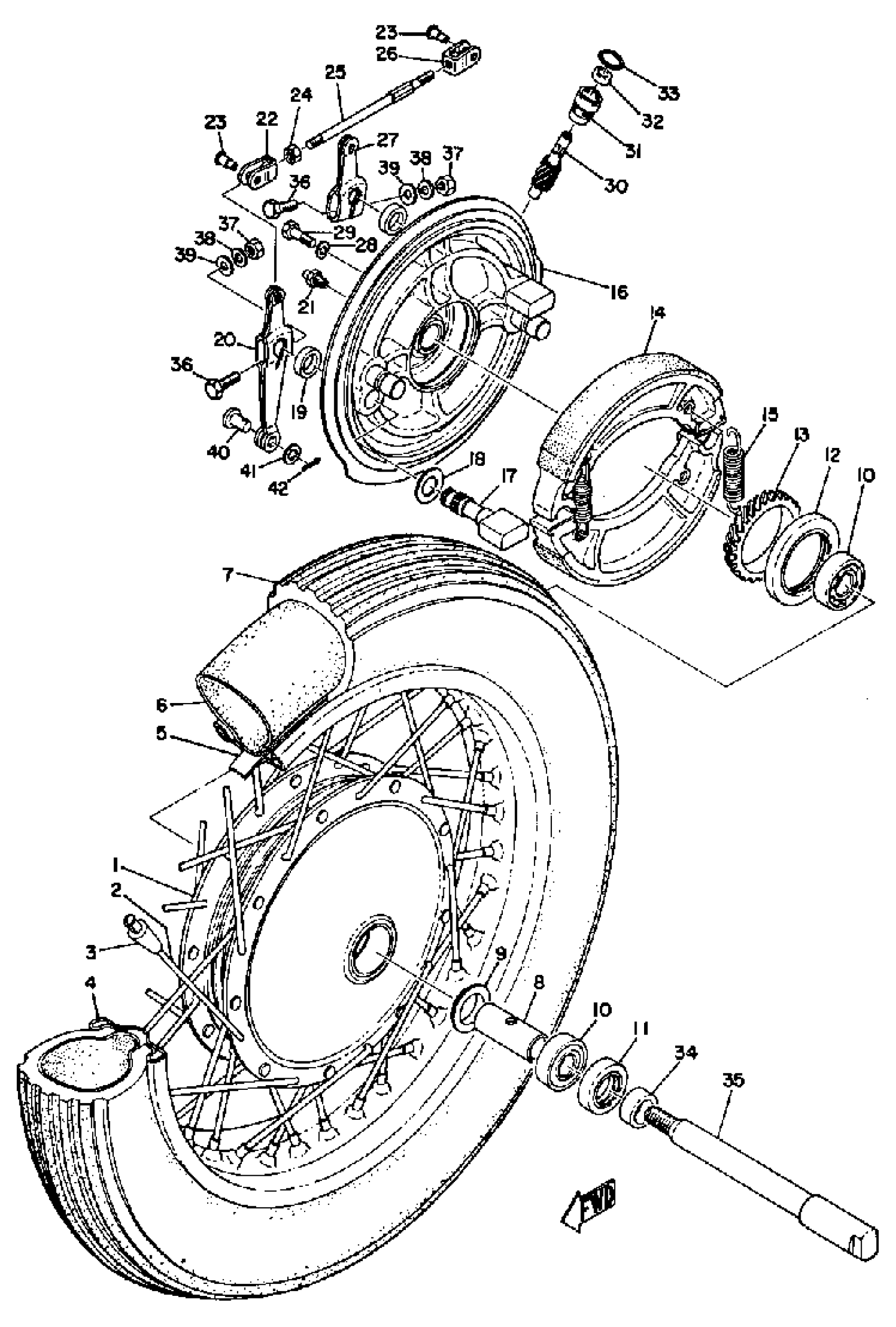

Find the part on the Front Wheel diagram for your 1969 Yamaha R3 (R3), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha R3 (R3) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(152-25111-00-00)

1
Out of stock

2

SPOKE SET, FRONT

152-25104-00-00

1
Out of stock

3

BALANCER, WHEEL

3HT-25398-00-00

1

$6.89

In stock

4

RIM 1.60X18

(94416-18013-00)

1
Out of stock

5

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

6

TUBE (5H5)

94227-18195-00

1
Out of stock

7

YOKO 300S18 Y986

(94130-18363-00)

1
Out of stock

8

SPACER, BEARING

(152-25117-00-00)

1
Out of stock

9

FLANGE, SPACER

146-25315-00-00

1

$6.38

In stock

10

1

$31.64

In stock

11

OIL SEAL, SDD-TYPE

(93105-24006-00)

1
Out of stock

12

OIL SEAL, OS-TYPE

(93107-50003-00)

1
Out of stock

13

GEAR, DRIVE

(152-25135-00-00)

1
Out of stock

14

BRAKESHOE SET-2PCS

168-W2535-00-00

1
Out of stock

15

1

$8.09

In stock

16

PLATE, BRAKE SHOE

(156-25121-01-00)

1
Out of stock

17

CAMSHAFT

(168-25151-00-00)

1
Out of stock

18

SHIM, CAM SHAFT

148-25353-00-00

—

$6.40

In stock

19

SEAL, CAM SHAFT

148-25359-00-00

—
Out of stock

20

LEVER,CAMSHAFT 1

168-25155-00-00

1
Out of stock

21

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

22

END, ROD 1

152-25163-00-00

1
Out of stock

23

PIN, SPEC'L SHAPE

90249-06095-00

1
Out of stock

24

NUT(650)

95380-06700-00

—

$6.17

In stock

25

ROD, CONNECTING

(152-25161-00-00)

1
Out of stock

26

END, ROD 2

152-25164-00-00

1
Out of stock

27

LEVER, CAMSHAFT 2

(168-25156-00-00)

1
Out of stock

28

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

29

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

30

GEAR, METER

(152-25138-00-00)

1
Out of stock

31

BUSHING

109-25136-00-00

—

$8.78

In stock

32

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

33

O-RING (26H)

93210-14579-00

—

$5.69

In stock

34

COLLAR

(90387-17136-00)

1
Out of stock

35

AXLE, WHEEL

(152-25181-00-00)

1
Out of stock

36

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

37

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

38

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

39

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

40

PIN W/HOLE 307181180000

90240-08013-00

—

$5.10

In stock

41

WASHER, PLATE 1562722600

90201-08083-00

—
Out of stock

42

PIN, COTTER

91490-20025-00

—

$1.31

In stock
