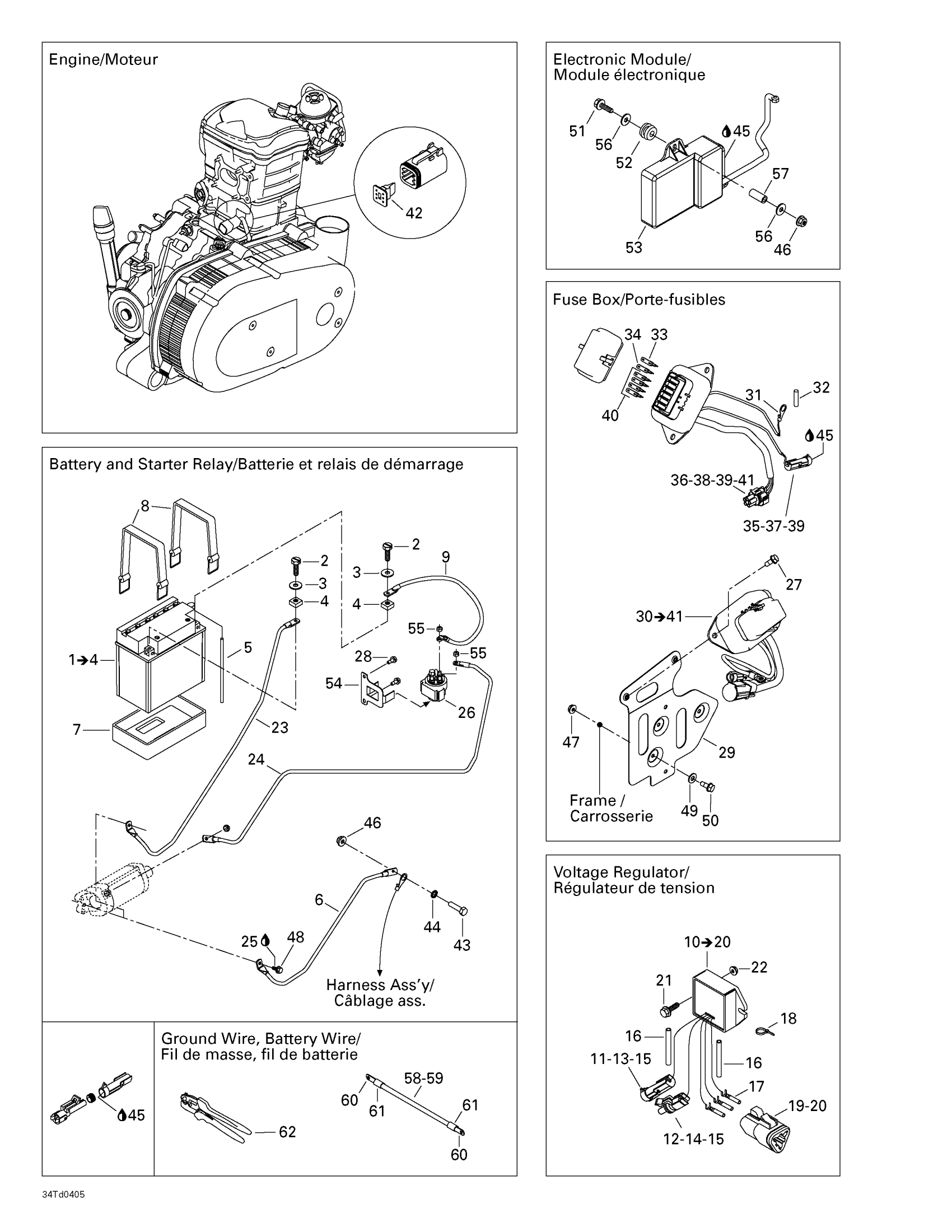

Can-Am Quest XT, 2004 Battery And Electrical Accessories Diagram

#

Description
Price

1

Battery 19A | Includes 5 to 8

278001756

Unavailable

2

Hex. Screw M6 X 16

207161644

Unavailable

3

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

4

Hex. Nut M6

232061414

$0.44

5

Was 415110000 Polyurethane Hose 5.2 mm

219704414

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Lower Battery Pad

278001746

Unavailable

8

Retainer Strap

293850097

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

VOLT REGULATOR ASS'Y - Call your local BRP dealership | Includes 15 to 25

710000449

Unavailable

11

Male Terminal | XT Models

278000222

$2.55

12

Female Terminal

278000223

Unavailable

13

Female Housing, 1 Circuit

278000161

Unavailable

14

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

15

Wire Seal

278000218

Unavailable

16

LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership

409901300

Unavailable

17

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

18

Tie Wrap 94 mm | 4X4

293750001

$0.83

19

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

Unavailable

20

Female Lock

409207200

$3.48

21

Hex. Flange Screw M6 X 25

207662544

Unavailable

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

23

Engine Ground Cable

710000211

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Loctite 243, 10 ml

293800060

$20.77

26

Starter Relay

710000344

$119.97

27

Hex. Forming Screw M6 X 10

210261050

$1.42

28

Hex. Self-threaded Screw 1/4"-20 X 3/4"

250000061

Unavailable

29

Bracket Module, Black

710000443

Unavailable

30

FUSE HOLDER ASS'Y - Call your local BRP dealership | Includes 42 to 53

710000579

$102.28

31

Open Barrel Terminal

278001392

Unavailable

32

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

33

Fuse, 30 Amperes

410917200

$3.22

34

Fuse, 20 Amperes

409003900

$3.22

35

Male Terminal

409004300

$5.46

36

Female Terminal

409007300

$0.36

37

Female Housing, 1 Circuit

278000161

Unavailable

38

Wire Seal

278000218

Unavailable

39

Wire Seal

710000048

Unavailable

40

Fuse, 15 Amperes

278000343

$2.72

41

Female Housing, 5 Circuit

710000106

Unavailable

42

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

43

Hex. Screw M6 X 25

207162544

Unavailable

44

External Serrated Lock Washer 6 mm

234461608

Unavailable

45

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

47

Hex. Flange Elastic Nut M5

233251414

Unavailable

48

Hex. Flange Screw M6 X 16

207661644

Unavailable

49

Flat Washer M5

234051410

Unavailable

50

Hex. Screw M5 X 20

207152044

$0.88

51

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

52

Grommet

709000582

$4.38

53

Electronic Module

710000625

Unavailable

54

Solenoid Support, Black

710000300

Unavailable

55

Hex. Elastic Stop Nut M6

232561600

$0.92

56

Flat Washer

224060201

Unavailable

57

Bushing

293900105

Unavailable

58

Ground Cable Battery, no 6, meter)

278001680

Unavailable

59

Cable Battery, no 6, meter)

278001690

Unavailable

60

Terminal 45°, Small Hole

278001682

Unavailable

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

Terminal 30°, 2 Holes

278001776

Unavailable

61

Was 710000483 Heat Shrink Tubing

219704447

Unavailable

62

Crimp Plier

529035730

Unavailable
