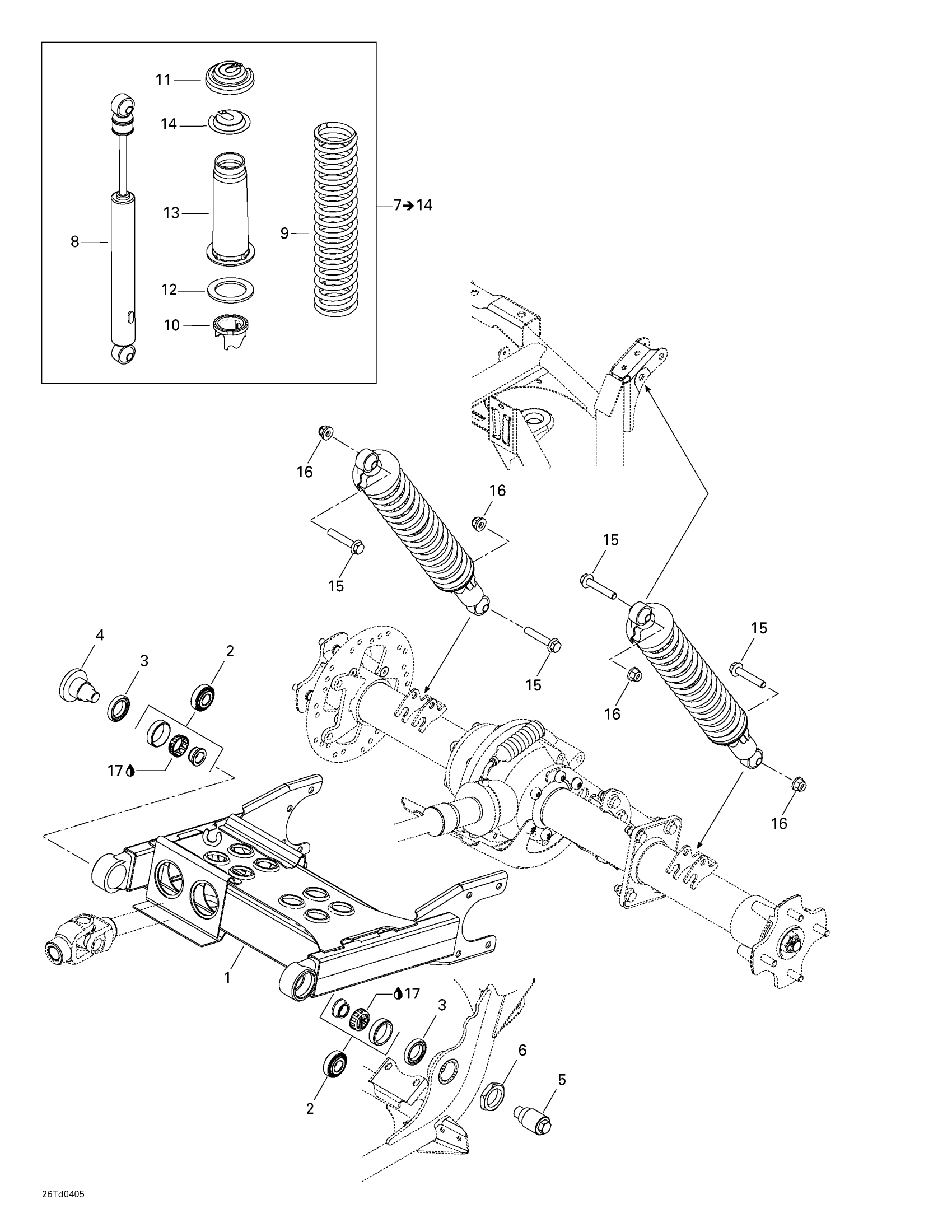

Can-Am Quest XT, 2004 Rear Suspension Diagram

#

Description
Price

1

SWING ARM, BLACK - Call your local BRP dealership

706000298

$286.89

2

CONE BEARING - Call your local BRP dealership

706000169

Unavailable

3

OIL SEAL - Call your local BRP dealership

706000010

Unavailable

4

RH Pivot Bolt

706000092

Unavailable

5

LH PIVOT BOLT - Call your local BRP dealership

706000093

$33.05

6

HEX. JAM NUT - Call your local BRP dealership

706000006

$13.05

7

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

8

Rear Shock

706000328

Unavailable

9

Rear Spring, Yellow

706000301

Unavailable

Rear Spring | Traxter CVT STD & XT (Camo)

706000304

Unavailable

10

RING ADJUSTER - Call your local BRP dealership

706000317

Unavailable

11

Spring Stopper

706200881

$10.30

12

SPRING SEAT - Call your local BRP dealership

706000533

$9.74

13

Protector

706000032

Unavailable

14

Cap

706200785

Unavailable

15

Hex. Flange Screw M10 X 55

207605544

Unavailable

16

Hex. Flange Elastic Nut M10

233201414

$1.26

17

Synthetic Grease, 400 G

293550010

Unavailable
