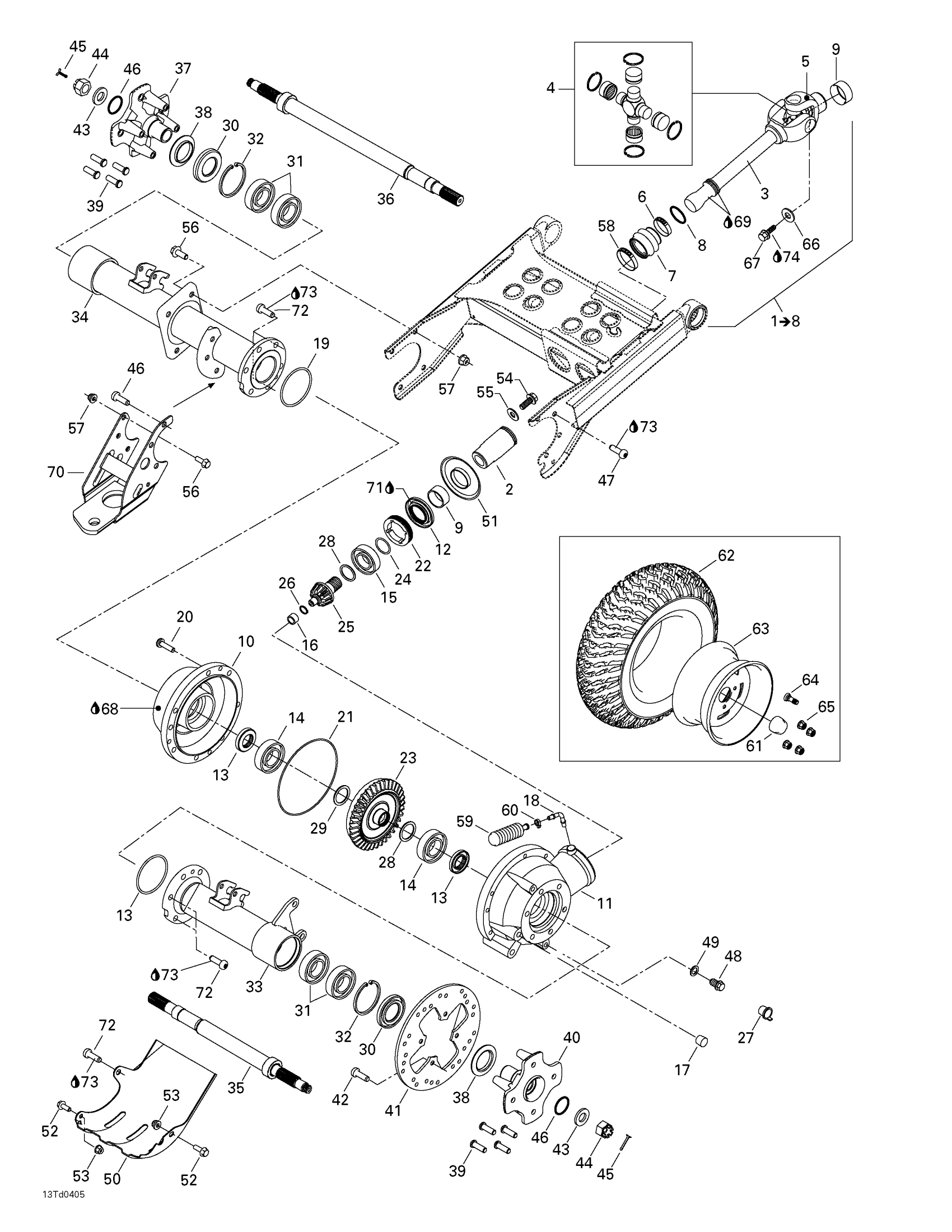

Can-Am Quest XT, 2004 Drive System, Rear Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

2

Front Bushing Shaft Kit | 4X4

703500678

$104.58

3

REAR DRIVE AXLE ASS'Y - Call your local BRP dealership | Includes 3 to 9

705500405

Unavailable

REAR DRIVE AXLE ASS'Y - Call your local BRP dealership | Includes 3 to 9

705500405

Unavailable

4

Universal Joint

715900326

$69.20

Ens. Croix*U-Joint Cross Kit

715900325

$69.20

5

Fixe Yoke

715900101

$27.66

Fixed Yoke Joint

715900116

$59.97

6

Collar | 4X4

705400148

Unavailable

7

Protector

705400147

Unavailable

8

SEALING RING - Call your local BRP dealership

705500315

Unavailable

9

Wear Ring | 4X4

705400036

$25.35

10

Rear Cover

705500175

Unavailable

11

PINION REAR COVER - Call your local BRP dealership

705500515

Unavailable

12

Oil Seal

705500248

Unavailable

13

Gasket | 4X4

705401618

$17.66

14

Ball Bearing | 4X4

705401606

$49.20

15

Ball Bearing | 4X4

705500260

$30.39

16

Needle Bearing | 4X4

705500261

Unavailable

17

Drain Plug | 4X4

705500894

$11.06

18

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

19

O-RING - Call your local BRP dealership

705500263

Unavailable

20

Screw | 4X4

705401601

$9.29

21

Seal | 4X4

705500265

$16.12

22

Nut | 4X4

705401603

$36.89

23

Crown Gear

705500223

Unavailable

24

O-Ring | 4X4

705500267

$6.25

25

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

26

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

27

PROTECTION PLUG - Call your local BRP dealership

705500516

Unavailable

28

Pinion Gear Shim 1.67 mm

705502061

$16.12

Pinion Gear Shim .022"

705500075

Unavailable

29

Shim | 4X4

705401604

$55.35

Shim | 4X4

705401604

$55.35

30

OIL SEAL - Call your local BRP dealership

705500099

Unavailable

31

BALL BEARING - Call your local BRP dealership

705500251

Unavailable

32

RETAINING RING - Call your local BRP dealership

705500249

Unavailable

33

RH AXLE TUBE - Call your local BRP dealership

705500250

Unavailable

34

LH AXLE TUBE - Call your local BRP dealership

705500182

Unavailable

35

RH AXLE - Call your local BRP dealership

705500183

Unavailable

36

LH AXLE - Call your local BRP dealership

705500184

Unavailable

37

Wheel Hub Ass'y | Includes 50 - 52.

705500254

Unavailable

38

WEAR RING - Call your local BRP dealership

705500100

Unavailable

39

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

40

LH Wheel Rear Hub

705500451

Unavailable

41

Brake Disc

705600343

Unavailable

42

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

43

WASHER - Call your local BRP dealership

250200019

Unavailable

44

Hex. Flange Castellated Nut M18

232291413

$2.82

45

Cotter Pin

250400036

$1.74

46

O-RING - Call your local BRP dealership

705500271

Unavailable

47

Torx Screw M10 X 30

250000085

Unavailable

48

Fill Level Plug | 4X4

705500504

$7.61

49

Copper Washer | 4X4

705500506

$0.36

50

Differential Protector, Black

705500185

Unavailable

51

JOINT PROTECTOR - Call your local BRP dealership

705500214

Unavailable

52

Hex. Flange Screw M8 X 16

207681644

$4.02

53

Hex. Flange Nut M8

233181414

$0.91

54

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

55

Flat Washer M10 | 4X4

250200014

$1.17

56

Hex. Flange Screw M10 X 25

207602544

$1.33

57

Hex. Flange Elastic Nut M10

233201414

$1.26

58

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

59

Rubber Bellow | 4X4

705400552

$6.02

60

Tie Wrap 94 mm | 4X4

293750001

$0.83

61

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

62

Tire 25X10R12 MST | Traxter CVT STD

705503225

$147.66

63

Rear Rim, Grey

705500239

Unavailable

Rear rim (black) | CAMO

705500424

Unavailable

Rear Rim, Chrome | Quest XT.

705500339

Unavailable

64

Rim Valve With Cap

705400193

$6.69

65

HEX. NUT - Call your local BRP dealership

705400013

Unavailable

66

Washer

211200041

$2.63

67

HEX. FLANGED SCREW M8 X 16 - Call your local BRP dealership

207681686

Unavailable

68

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62

69

Graisse *Grease

293550062

$15.35

70

Trailer Hook, Black

705500244

Unavailable

71

Synthetic Grease, 400 G

293550010

Unavailable

72

Torx Screw M10 X 30

250000085

Unavailable

73

Loctite 609, 10 ml

413703100

$24.58

74

Loctite 271, 10 ml

293800005

$20.77
