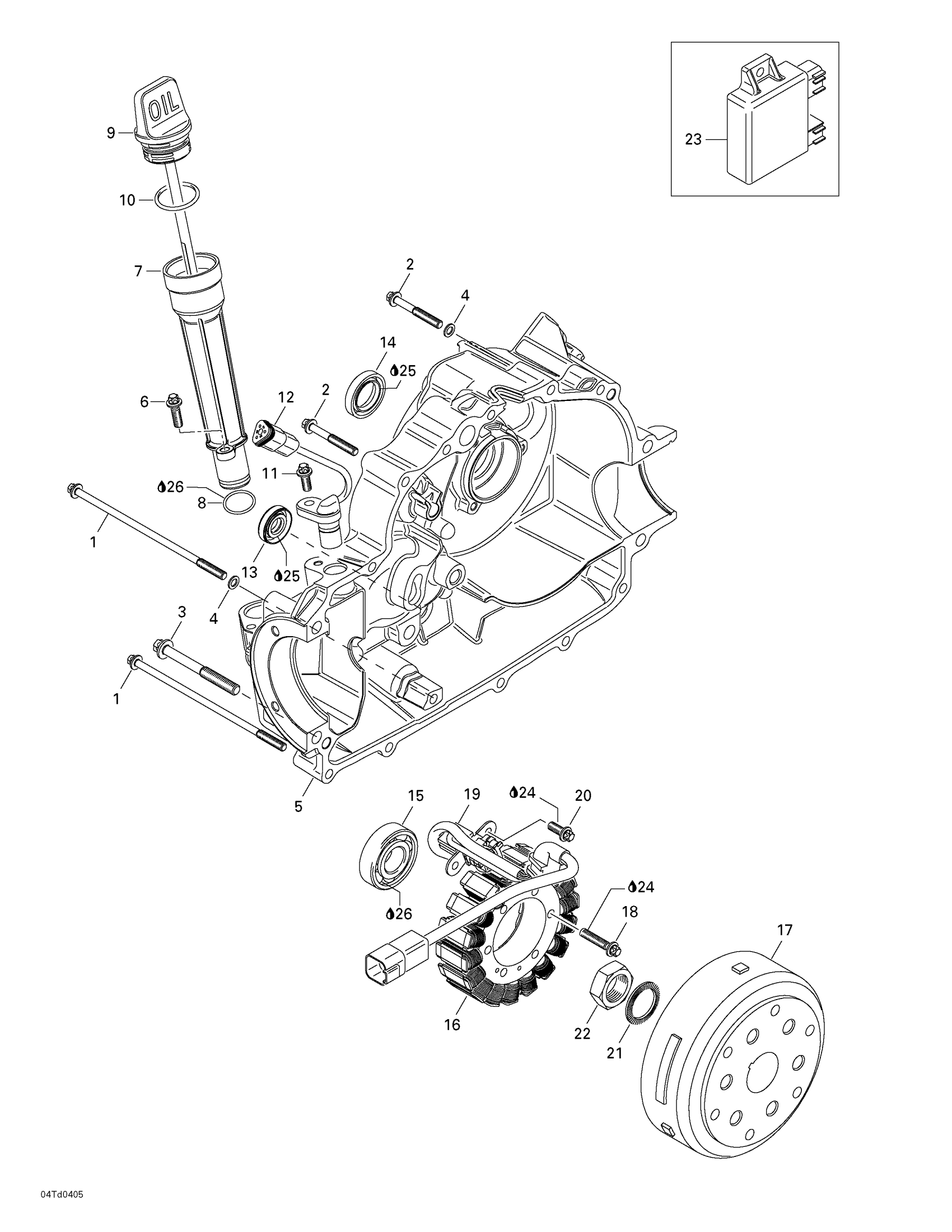

Can-Am Quest XT, 2004 Magneto Diagram
#
Description
Price
1
Torx Flange Screw M6 X 130
420440982
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Torx Flange Screw M8 X 65
420440402
Unavailable
4
Sealing Washer
404146600
Unavailable
5
Not Available As Spare Part - Friction Washer
Unavailable
6
Torx Flange Screw M6 X 25
420440234
Unavailable
7
Dipstick Tube
420956980
Unavailable
8
O-RING - Call your local BRP dealership
420630430
Unavailable
9
OIL DIPSTICK - Call your local BRP dealership
420956895
Unavailable
10
O-ring
420430590
Unavailable
12
Camshft Position Sensor Ass'y
420265727
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
Generator | Includes 16 To 17
420296630
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Torx Flange Screw M6 X 35
420440274
Unavailable
19
Cable Cover
420260870
Unavailable
21
Disc
420845510
Unavailable
22
Hex. Nut M24
420242012
Unavailable
23
Amplifier Box
420265820
Unavailable
25
Grease, Super Lube
293550030
Unavailable
26
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
