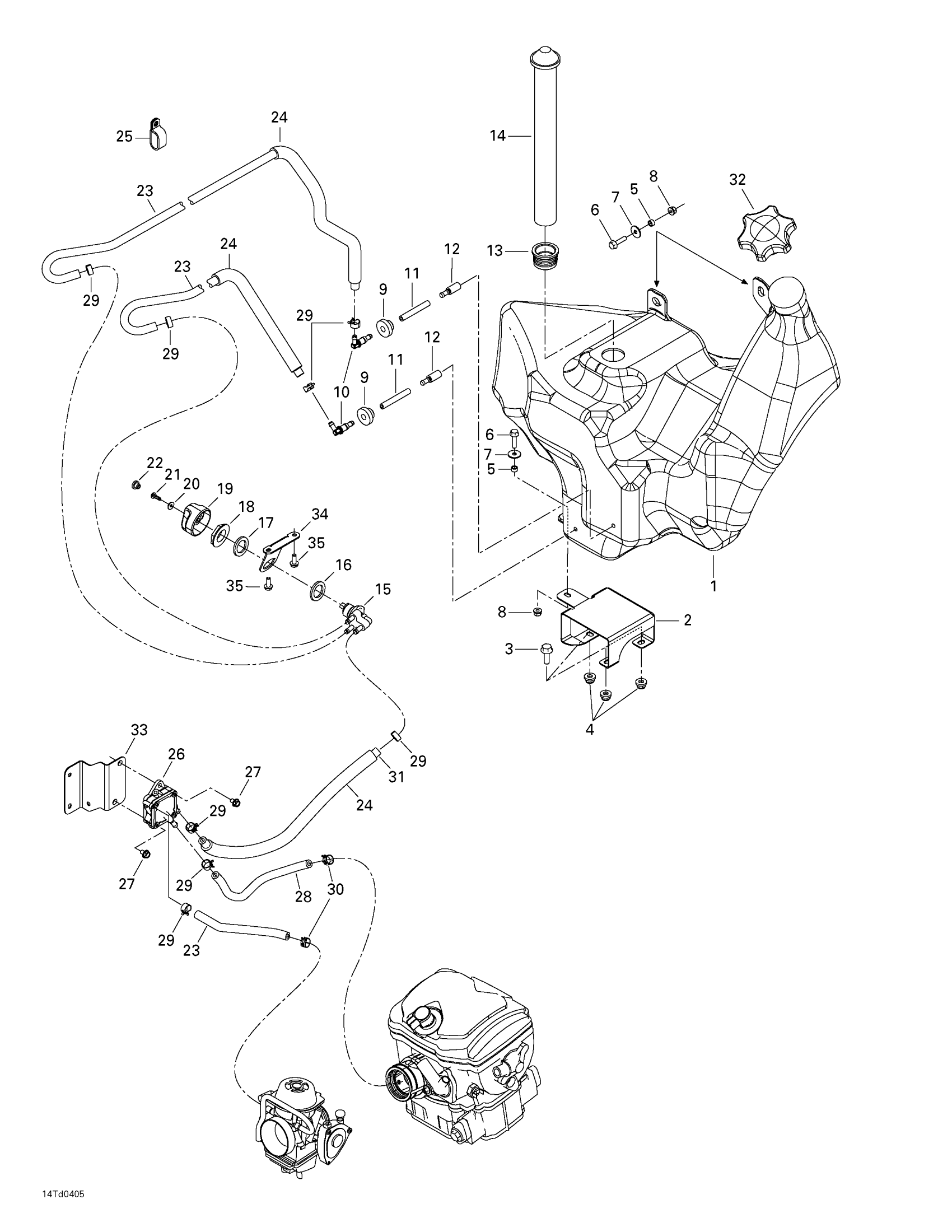

Can-Am Quest XT, 2004 Fuel Tank Diagram

#

Description
Price

1

Fuel Tank

709000035

Unavailable

2

Fuel Tank Support, Black

709000039

Unavailable

3

Hex. Flange Screw M8 X 20

207682044

$0.92

4

Hex. Flange Elastic Nut M8

233281414

$1.14

5

Bushing | DS 650 X

293900104

$5.10

6

Hex. Flange Screw M6 X 25

207662544

$0.53

7

Flat Washer

224061201

$1.11

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

9

Grommet

570045500

$6.13

10

Elbow Male Connector

414580600

$3.50

11

Polyurethane Hose 10000Mm Long

219704410

$46.12

12

Fuel Filter

414865700

$8.39

13

Grommet

293720058

$10.67

14

FUEL GAUGE - Call your local BRP dealership

709000078

Unavailable

15

Fuel Valve

275500098

$34.42

16

GASKET - Call your local BRP dealership

293250004

Unavailable

17

Washer

250200015

Unavailable

18

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

19

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

20

Flat Washer 4 mm

234040600

$0.46

21

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

22

Black, Cap

275500241

$2.76

23

Hose

219704549

$46.24

24

Was 409901800 Tubing (13 mm)

219704400

$9.40

25

Open Clamp

709000057

$4.78

26

FUEL PUMP - Call your local BRP dealership

707200000

Unavailable

27

Hex. Flange Screw M6 X 10

210261040

$1.25

28

FORMED HOSE - Call your local BRP dealership

709000047

Unavailable

29

Oetiker Clamp

293650042

$1.40

30

Spring Clamp

414415200

$0.81

31

Formed Hose

709000068

Unavailable

32

FUEL CAP - Call your local BRP dealership

709000059

Unavailable

33

Pump Support

709000040

Unavailable

34

Valve Support, Black

709000070

Unavailable

35

Hex. Flange Screw M6 X 16

210261650

$1.22
