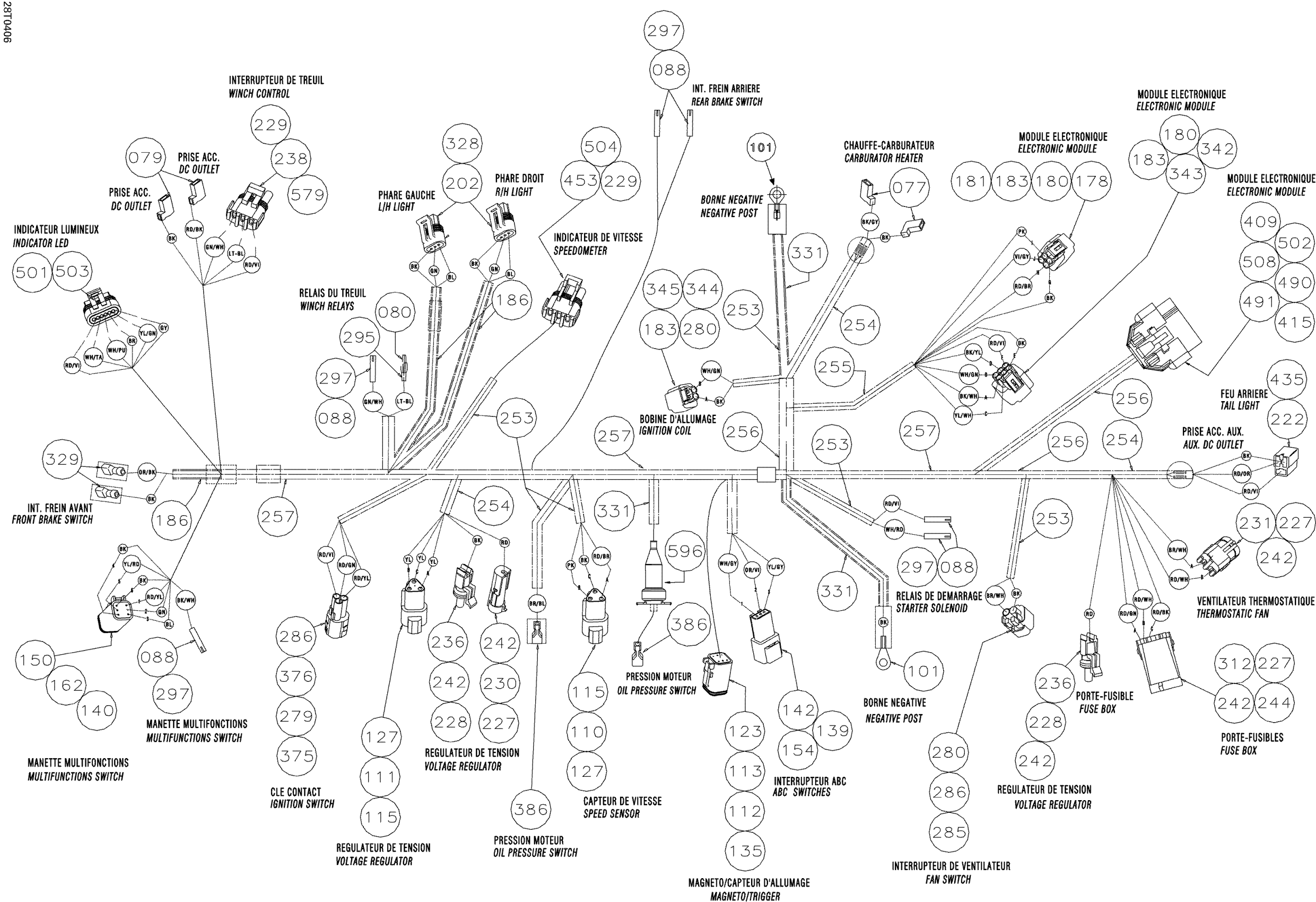

Can-Am Quest MAX, 2004 Electrical Harness Diagram
#
1
Harness Ass'y | Includes Items 1 to 596
710000463
Unavailable
80
Male Terminal
278000230
Unavailable
88
Female Terminal | DS 650 X
278001009
Unavailable
101
Open Barrel Terminal
278001392
Unavailable
111
Male Terminal
515175823
Unavailable
112
Female Terminal
278000632
Unavailable
113
FEMALE TERMINAL - Call your local BRP dealership
278001661
Unavailable
115
Male Housing
278002378
Unavailable
123
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
Unavailable
178
Lock, 4 Circuits
710000187
Unavailable
181
Housing Tab, 4 Circuits
710000188
Unavailable
186
Vinyl Tubing, Low Temp 3000Mm Long
219704424
Unavailable
222
Female Housing
409204300
Unavailable
229
Female Terminal
278000223
Unavailable
230
Female Housing, 1 Circuit
278000161
Unavailable
231
Female Housing, 2 Circuits
278000217
Unavailable
236
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership
278000219
Unavailable
238
Male Housing, 3 Circuits
278000273
Unavailable
242
Wire Seal
278000218
Unavailable
244
Wire Seal
278000216
Unavailable
254
Was 409901700 Tubing (9 mm)
219704399
Unavailable
255
Was 409901800 Tubing (13 mm)
219704400
Unavailable
256
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
257
Was 409901600 Tubing 19mm
219704398
Unavailable
280
Female Terminal
409012100
Unavailable
285
HOUSING-TAB - Call your local BRP dealership
710000078
Unavailable
286
Seal
409012300
Unavailable
295
Insulated Sheath
278001008
Unavailable
297
Insulated Sheath
278001007
Unavailable
328
MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
278001467
Unavailable
331
PROTECTOR TUBE, 4MM 1000MM LONG - Call your local BRP dealership
219704446
Unavailable
342
FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710000190
Unavailable
375
Male Terminal
710000218
Unavailable
376
HOUSING-TAB - Call your local BRP dealership
710000219
Unavailable
386
Female Terminal
710000255
Unavailable
409
Plug
515175812
Unavailable
453
Female Terminal Housing, 3 Circuits
710000347
Unavailable
490
SEAL WIRE - Call your local BRP dealership
710000394
Unavailable
491
FEMALE HOUSING - Call your local BRP dealership
710000395
Unavailable
501
FEMALE TERMINAL - Call your local BRP dealership
710000412
Unavailable
502
HOUSING - Call your local BRP dealership
710000413
Unavailable
503
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710000414
Unavailable
504
Wire Seal
278001065
Unavailable
508
Retainer Block
710000424
Unavailable
596
CAP - Call your local BRP dealership
710000670
Unavailable
