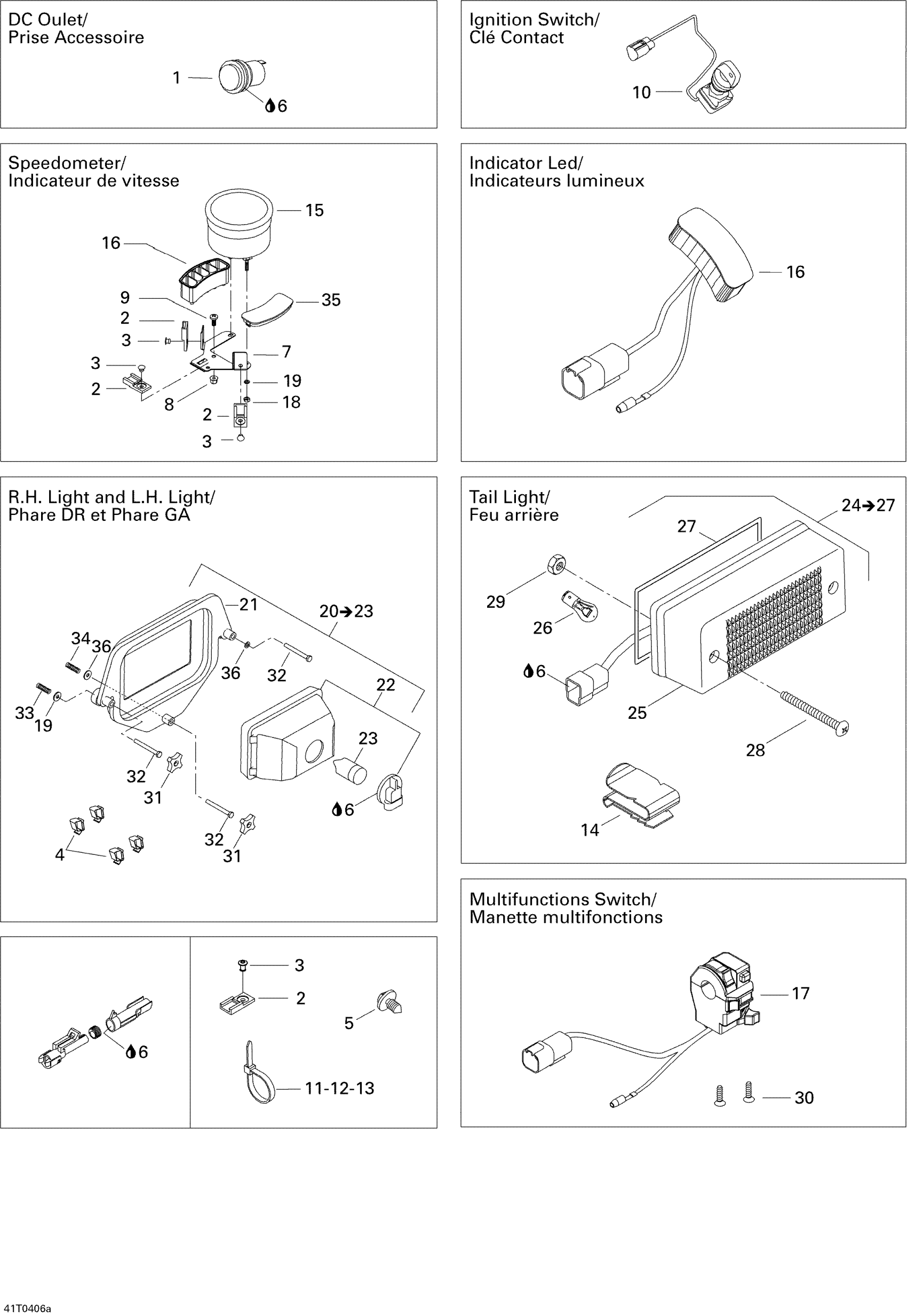

Can-Am Quest MAX, 2004 Electrical Accessories 1 Diagram

#

Description
Price

1

Outlet Power Kit, 12 Volts

861507200

Unavailable

2

Clip

270000141

$8.33

3

Pop Rivet 3/16"

390402400

Unavailable

4

Clip

414227300

$1.45

5

Mount Dart

293730040

$0.86

6

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

7

Housing Support, Black

710000159

Unavailable

8

Elastic Stop Nut M5

232551414

Unavailable

9

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

$0.98

10

Ignition Switch Ass'y | Includes 17 to 21

710000192

Unavailable

10

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

10

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

$15.35

11

Tie Wrap 368 mm

293750008

$0.85

12

Tie Wrap 142 mm

293750002

Unavailable

13

Tie-Rap 180 mm

414115200

$0.09

14

CLIP - Call your local BRP dealership

409014200

$4.23

15

Speedometer

710000524

Unavailable

16

RH Warning Light

710000407

Unavailable

17

Multi-Function Switch | Includes 19 to 21

710000404

Unavailable

18

NUT-STOP ELASTIC IFI 100/107 - Call your local BRP dealership

211100051

Unavailable

19

Flat Washer 4 mm

234040600

Unavailable

20

HEADLAMP ASS'Y - Call your local BRP dealership | Includes 31 to 34

710000174

Unavailable

21

LAMP SUPPORT - Call your local BRP dealership

705000283

$20.74

22

LAMP HOUSING - Call your local BRP dealership

705000284

Unavailable

23

BULB - Call your local BRP dealership

710000176

Unavailable

24

Tail Light Housing

710000102

Unavailable

25

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

26

Bulb

520000758

$7.49

27

GASKET - Call your local BRP dealership

710000129

$8.43

28

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

29

Hex. Flange Elastic Nut M5

233251414

Unavailable

30

Socket Head Screw M5 X 35

205053588

Unavailable

31

Handle

572106600

Unavailable

32

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

Unavailable

33

SPRING - Call your local BRP dealership

710000285

$5.35

34

Spring

517168600

Unavailable

35

LIGHT COVER - Call your local BRP dealership

709400102

Unavailable

36

Flat Washer 4 mm, Stainless

234042600

Unavailable
