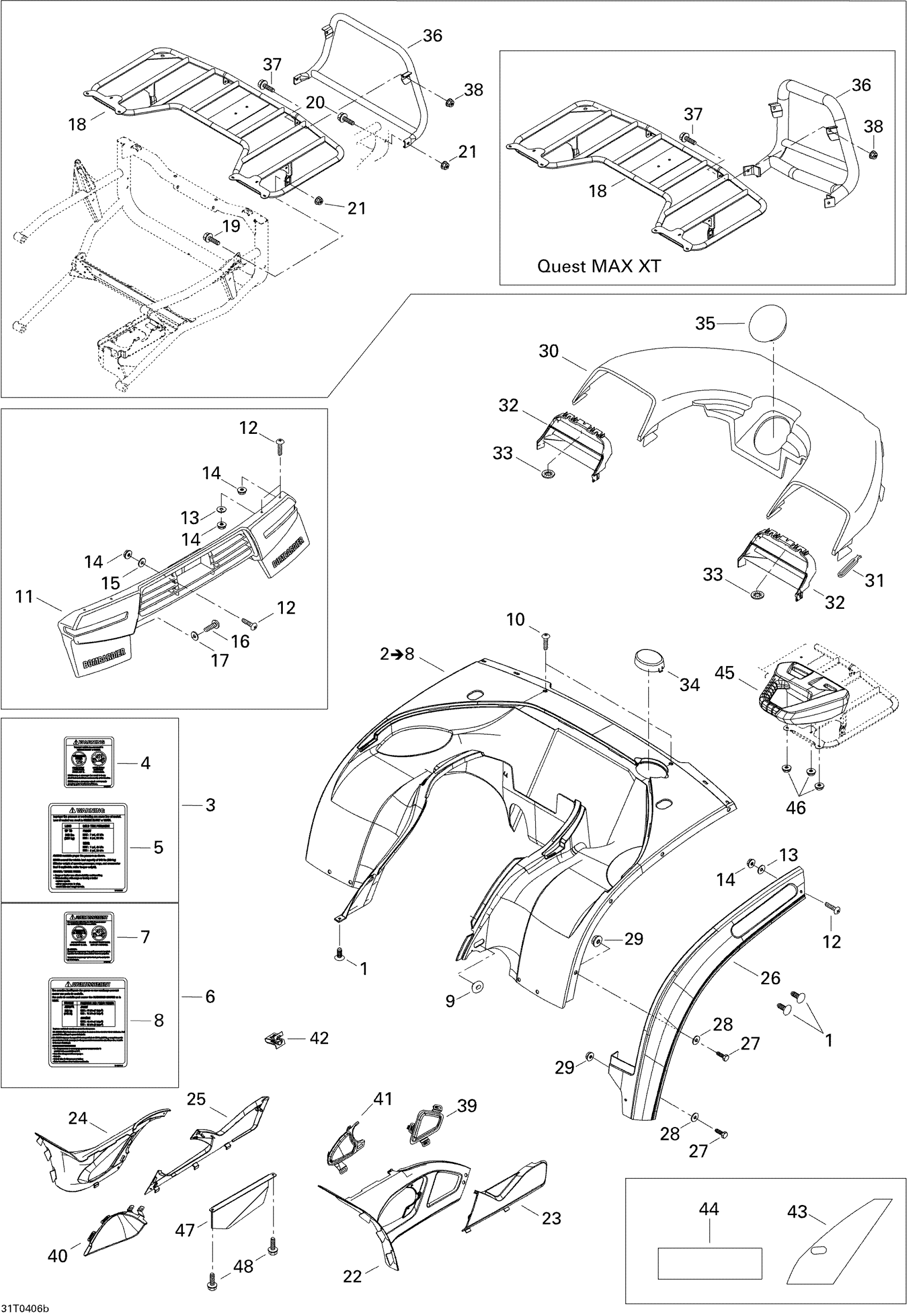

Can-Am Quest MAX, 2004 Body And accessories, Rear View Diagram
#
1
Black, Dart
293730011
Unavailable
1
Black, Dart
293730011
Unavailable
2
Rear Fender Kit, Viper Red | includes Items 2 to 8
703500403
Unavailable
3
Warning Label Ass'y, English | includes Items 3 to 5
704900751
Unavailable
4
Warning Label, English | (Passenger under 12 years old)
704900634
Unavailable
5
Not Available As Spare Part - Friction Washer
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
7
Warning Label, French
704900437
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Oblong Grommet
705003668
Unavailable
10
PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership
732600009
Unavailable
11
Rear Fascia, Slate Gray
705000709
Unavailable
12
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
13
Flat Washer
224060201
Unavailable
14
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
15
Flat Washer
224060201
Unavailable
16
PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership
732600009
Unavailable
18
Luggage Rack, Black
705000874
Unavailable
19
Hex. Flange Screw M8 X 20
207682044
Unavailable
20
Hex. Flange Screw M8 X 50
207685044
Unavailable
21
Hex. Flange Elastic Nut M8
233281414
Unavailable
22
LH Upper Panel, Viper Red
705000934
Unavailable
23
LH Lower Panel, Viper Red
705000942
Unavailable
24
RH Upper Panel, Viper Red | Includes 27 To 29
703500404
Unavailable
25
RH Lower Panel, Viper Red
705000946
Unavailable
26
LH Rear Mudguard
705001117
Unavailable
26
RH Rear Mudguard
705001118
Unavailable
28
Flat Washer
224060201
Unavailable
29
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
30
Fender Cover, Viper Red | Red
705000576
Unavailable
31
Windshield Latch
570023800
Unavailable
32
LH Grill, Black
705000180
Unavailable
32
RH Grill, Black
705000181
Unavailable
36
Rear Bumper, Black | XT
705000799
Unavailable
36
Rear Bumper, Black | Traxter 5 Speed STD
705000602
Unavailable
37
Hex. Flange Screw M8 X 20
207682046
Unavailable
38
Hex. Elastic Flange Nut M8
233281416
Unavailable
39
LH Rear Grill, Black
705000367
Unavailable
40
Black, RH Rear Grille
705000952
Unavailable
41
LH Front Grill
705000368
Unavailable
42
Edge Clip
517302785
Unavailable
43
Reflective Sheet
705001297
Unavailable
44
Reflective Sheet
705000492
Unavailable
45
LH Handle
705000703
Unavailable
45
RH Handle
705000704
Unavailable
46
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
47
Heatshield
705001317
Unavailable
