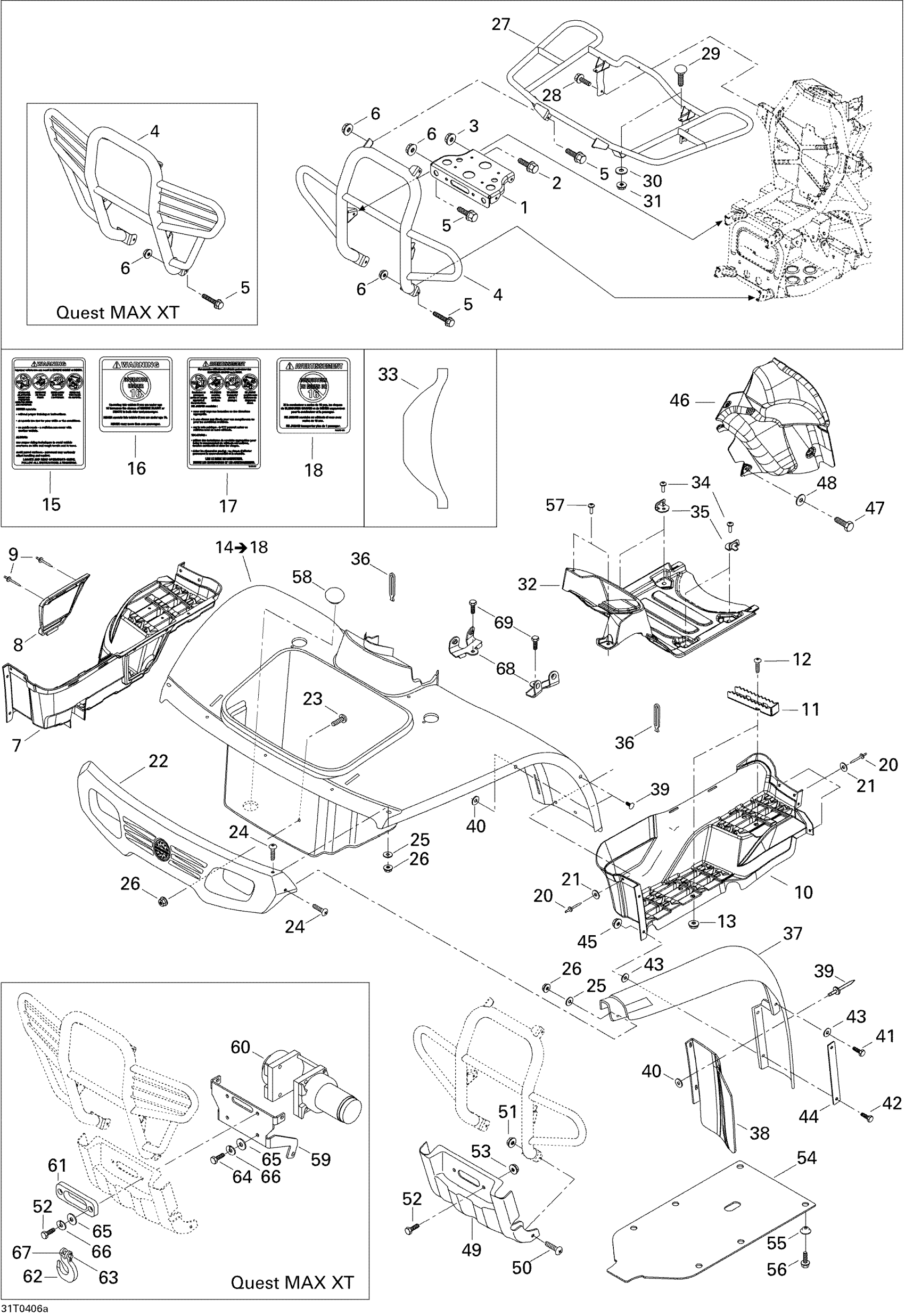

Can-Am Quest MAX, 2004 Body and accessories, Front View Diagram

#

Description
Price

1

WINCH LATCH, BLACK - Call your local BRP dealership

705200196

Unavailable

2

Hex. Flange Screw M8 X 25

207682544

$0.90

3

Hex. Flange Elastic Nut M8

233281414

Unavailable

4

FRONT BUMPER, BLACK - Call your local BRP dealership | Traxter 5 Speed XT

705000585

Unavailable

4

Front Bumper, Black | Traxter 5 Speed STD

705000591

Unavailable

5

Hex. Flange Screw M8 X 25

207682544

$0.90

6

Hex. Flange Elastic Nut M8

233281414

Unavailable

7

RH Footboard, Grey

705000931

Unavailable

8

Acces Panel

705001120

Unavailable

9

Tuflok Plastic Rivet

293150230

Unavailable

10

LH Footboard, Grey

705000932

Unavailable

11

Footrest, Black

705001083

Unavailable

12

Hex. Flange Screw M6 X 25

207662554

$1.48

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

14

Front Fender, Red | includes Items 14 to 18

703500402

Unavailable

15

Warning Decal, Death And Injuries | English Version

704901749

Unavailable

16

Warning Decal, Under 16 Years Old | English Version

704901753

Unavailable

17

Warning Label

704900435

Unavailable

18

WARNING DECAL, UNDER 16 YEARS OLD - Call your local BRP dealership | French Version

704900436

Unavailable

20

Tuflok Plastic Rivet

293150230

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Front Fascia, Slate Gray

705000708

Unavailable

23

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

24

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

25

Flat Washer

224060201

Unavailable

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

27

Front Luggage Rack, Black

703500264

Unavailable

28

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

29

TRUSS PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

250000035

Unavailable

30

Flat Washer

224061121

$0.44

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

32

Console

705001052

Unavailable

33

Reflective Sheet

705000541

Unavailable

34

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

35

HOOK, BLACK - Call your local BRP dealership

705000369

Unavailable

36

Windshield Latch

570023800

Unavailable

37

LH Front Mudguard

705000711

Unavailable

37

RH Front Mudguard

705000712

Unavailable

38

Mudguard Extension

705000755

Unavailable

39

Tuflok Plastic Rivet

293150230

Unavailable

40

Flat Washer 8 mm

234082410

$1.11

41

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

42

Hex. Screw M6 X 25

207162544

Unavailable

43

Flat Washer

224060201

Unavailable

44

PLATE - Call your local BRP dealership

705000754

$7.89

45

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

46

LH TANK PROTECTOR - Call your local BRP dealership

705000133

$21.51

46

RH TANK PROTECTOR - Call your local BRP dealership

705000134

$21.51

47

Hex. Flange Screw M6 X 16

210261650

$1.22

48

Flat Washer

224061201

Unavailable

49

PROTECTOR PLATE, SLATE GRAY - Call your local BRP dealership

705000713

$20.74

50

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

51

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

52

Hex. Flange Screw M10 X 25

207602544

Unavailable

52

Socket Screw 5/16-18 X 1 1/2" | Traxter 5 Speed XT

250000042

Unavailable

53

Hex. Flange Elastic Nut M10

233201414

$1.26

54

Skid Plate

705000949

Unavailable

55

CUP - Call your local BRP dealership

705200533

Unavailable

56

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

Unavailable

57

Tuflock Phillips Plastic Screw

414745900

$1.30

58

Rubber Cover

570041600

Unavailable

59

Mounting Plate | Traxter 5 Speed XT

705000994

Unavailable

60

WINCH - Call your local BRP dealership

705000839

Unavailable

61

CABLE GUIDE - Call your local BRP dealership

705000194

$23.82

62

Winch Hook Kit

705014949

Unavailable

63

Cotter Pin

250400022

Unavailable

64

SOCKET SCREW 5/16-18 X 1 - Call your local BRP dealership

250000041

Unavailable

65

Flat Washer 8 mm

234081410

Unavailable

66

Lock Washer 8 mm

234181401

Unavailable

67

Clevis Pin

250400021

Unavailable

68

Bracket, Black

705000311

Unavailable

69

Hex. Forming Screw M6 X 10

210261050

$1.42
