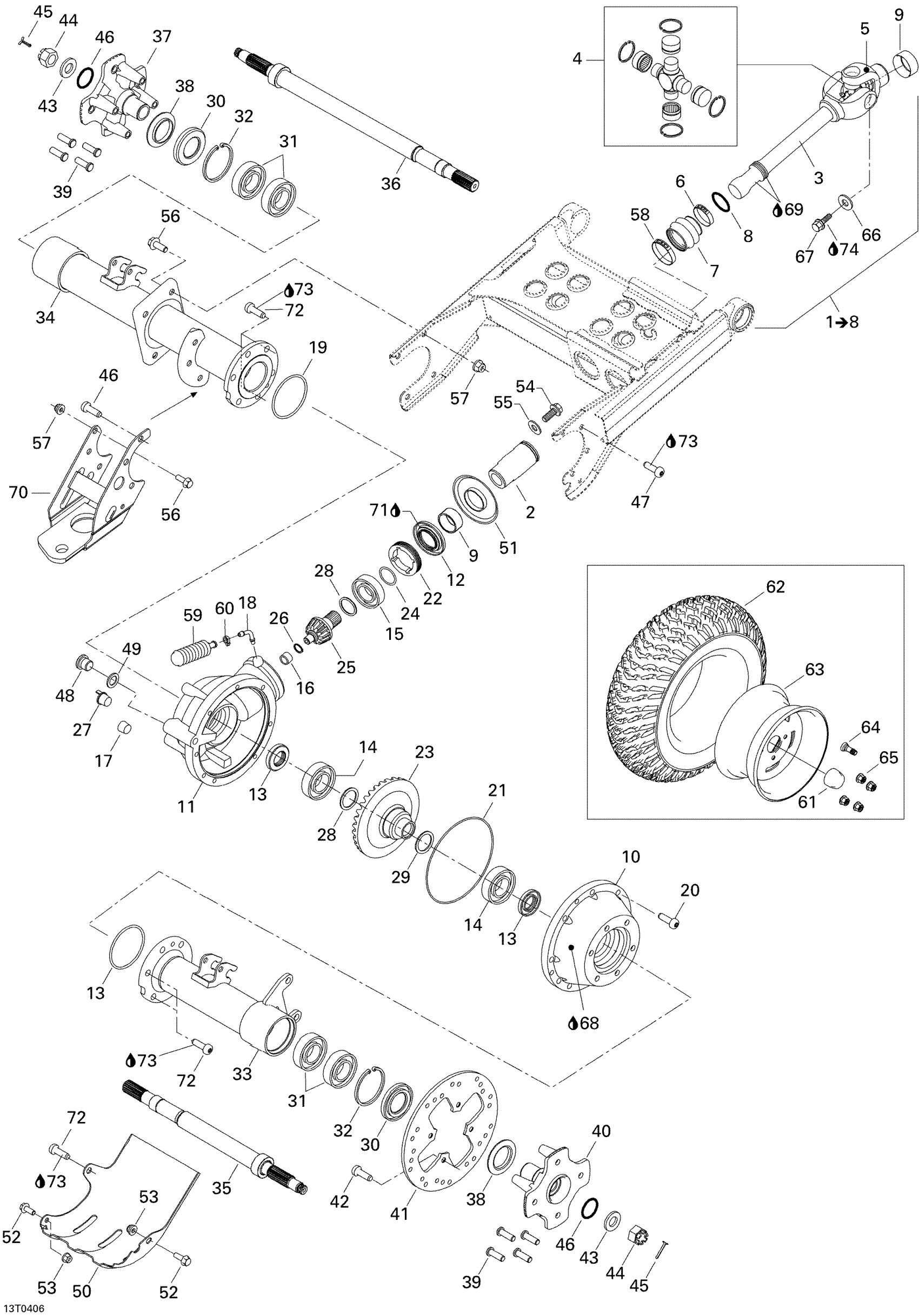

Can-Am Quest MAX, 2004 Drive System, Rear Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Front Bushing Shaft Kit | 4X4

703500678

$101.46

3

REAR DRIVE AXLE ASS'Y - Call your local BRP dealership | Includes 3 to 9

705500405

Unavailable

4

Universal Joint

715900326

$64.15

5

Fixe Yoke

715900101

$26.84

6

Collar | 4X4

705400148

Unavailable

7

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

8

SEALING RING - Call your local BRP dealership

705500315

Unavailable

9

Wear Ring | 4X4

705400036

$24.60

10

Rear Cover

705500175

Unavailable

11

PINION REAR COVER - Call your local BRP dealership

705500515

Unavailable

12

Oil Seal

705500248

Unavailable

13

Gasket | 4X4

705401618

$17.13

14

Ball Bearing | 4X4

705401606

$47.73

15

Ball Bearing | 4X4

705500260

$29.82

16

Needle Bearing | 4X4

705500261

Unavailable

17

Drain Plug | 4X4

705500894

$10.24

18

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

19

O-RING - Call your local BRP dealership

705500263

Unavailable

20

Screw | 4X4

705401601

$8.67

21

Seal | 4X4

705500265

$15.64

22

Nut | 4X4

705401603

$33.55

23

Crown Gear

705500223

Unavailable

24

O-Ring | 4X4

705500267

$6.06

25

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

26

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

27

PROTECTION PLUG - Call your local BRP dealership

705500516

Unavailable

28

Pinion Gear Shim 1.67 mm

705502061

$15.64

28

Pinion Gear Shim .022"

705500075

Unavailable

29

Shim | 4X4

705401604

$51.46

29

Shim | 4X4

705401604

$51.46

30

OIL SEAL - Call your local BRP dealership

705500099

Unavailable

31

BALL BEARING - Call your local BRP dealership

705500251

Unavailable

32

RETAINING RING - Call your local BRP dealership

705500249

Unavailable

33

RH AXLE TUBE - Call your local BRP dealership

705500250

Unavailable

34

LH AXLE TUBE - Call your local BRP dealership

705500182

Unavailable

35

RH AXLE - Call your local BRP dealership

705500183

Unavailable

36

LH AXLE - Call your local BRP dealership

705500184

Unavailable

37

Wheel Hub Ass'y | Includes 50 - 52.

705500254

Unavailable

38

WEAR RING - Call your local BRP dealership

705500100

Unavailable

39

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.18

40

LH Wheel Rear Hub

705500451

Unavailable

41

Brake Disc

705600343

Unavailable

42

Torx Screw M8 X 16, Scotch Grip

235381646

$2.40

43

WASHER - Call your local BRP dealership

250200019

Unavailable

44

Hex. Flange Castellated Nut M18

232291413

$3.24

45

Cotter Pin

250400036

$2.00

46

O-RING - Call your local BRP dealership

705500271

Unavailable

47

Torx Screw M10 X 30

250000085

Unavailable

48

Fill Level Plug | 4X4

705500504

$8.73

49

Copper Washer | 4X4

705500506

$0.42

50

Differential Protector, Black

705500565

Unavailable

51

JOINT PROTECTOR - Call your local BRP dealership

705500214

Unavailable

52

Hex. Flange Screw M8 X 16

207681644

$3.90

53

Hex. Flange Nut M8

233181414

$1.04

54

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.49

55

Flat Washer M10 | 4X4

250200014

$1.34

56

Hex. Flange Screw M10 X 25

207602544

$1.52

57

Hex. Flange Elastic Nut M10

233201414

$1.45

58

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.22

59

Rubber Bellow | 4X4

705400552

$5.84

60

Tie Wrap 94 mm | 4X4

293750001

$0.96

61

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

62

Tire 25X10R12 MST | Traxter CVT STD

705503225

$143.25

63

REAR RIM - Call your local BRP dealership | Traxter CVT XT (Camo)

705500547

Unavailable

63

Rear Rim

705500555

Unavailable

64

Rim Valve With Cap

705400193

$6.49

65

Steel Wheel Nut

250100042

$3.07

66

Washer

211200041

$3.01

67

HEX. FLANGED SCREW M8 X 16 - Call your local BRP dealership

207681686

Unavailable

68

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$15.64

69

Graisse *Grease

293550062

$14.90

70

Trailer Hook, Black

705500244

Unavailable

71

Synthetic Grease, 400 G

293550010

Unavailable

72

Torx Screw M10 X 30

250000085

Unavailable

73

Loctite 609, 10 ml

413703100

$23.85

74

Loctite 271, 10 ml

293800005

$23.85
