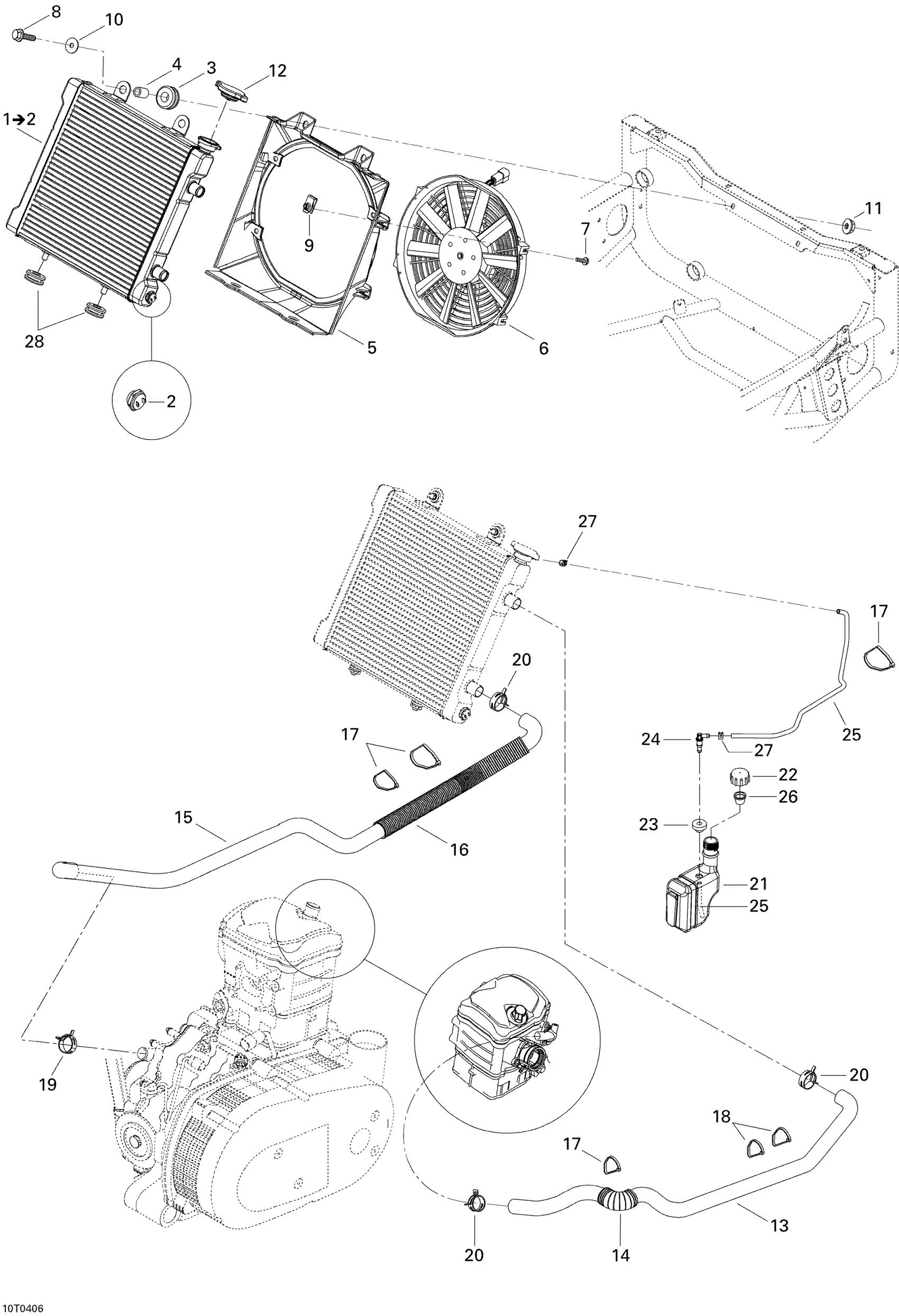

Can-Am Quest MAX, 2004 Liquid Cooling Diagram

#

Description
Price

1

RADIATOR ASS'Y - Call your local BRP dealership | Includes 1 to 2

709200109

Unavailable

2

Temperature Sensor

715900095

$64.90

3

Grommet

709000582

$4.25

4

Bushing

293900019

$7.21

5

OUTER SHROUD - Call your local BRP dealership

709200111

Unavailable

6

FAN ASS'Y - Call your local BRP dealership | Includes 6 to 8

709200112

Unavailable

7

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

8

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

9

Panel Nut M6 X 1.0

250100198

$1.99

10

Flat Washer

250200082

$0.40

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

12

Radiator Pressure Cap

709200207

$21.61

13

RADIATOR INLET HOSE - Call your local BRP dealership

709200047

Unavailable

14

PROTECTION SHIELD - Call your local BRP dealership

709200031

Unavailable

15

RADIATOR OUT HOSE - Call your local BRP dealership

709200048

Unavailable

16

PROTECTION SHIELD - Call your local BRP dealership

709200032

Unavailable

17

Tie-Rap 180 mm

414115200

$0.10

18

Tie Wrap 368 mm

293750008

$0.97

19

Norma Spring Clamp

293650108

$3.88

20

Norma Spring Clamp

293650109

$3.88

21

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

22

TANK CAP - Call your local BRP dealership

709200009

Unavailable

23

Grommet

709200285

$8.13

24

Elbow Male Connector

414580600

$4.01

25

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

26

PROTECTION CAP - Call your local BRP dealership

709200205

Unavailable

27

Spring Clamp

414554800

$0.81

28

Grommet

705003932

$2.89
