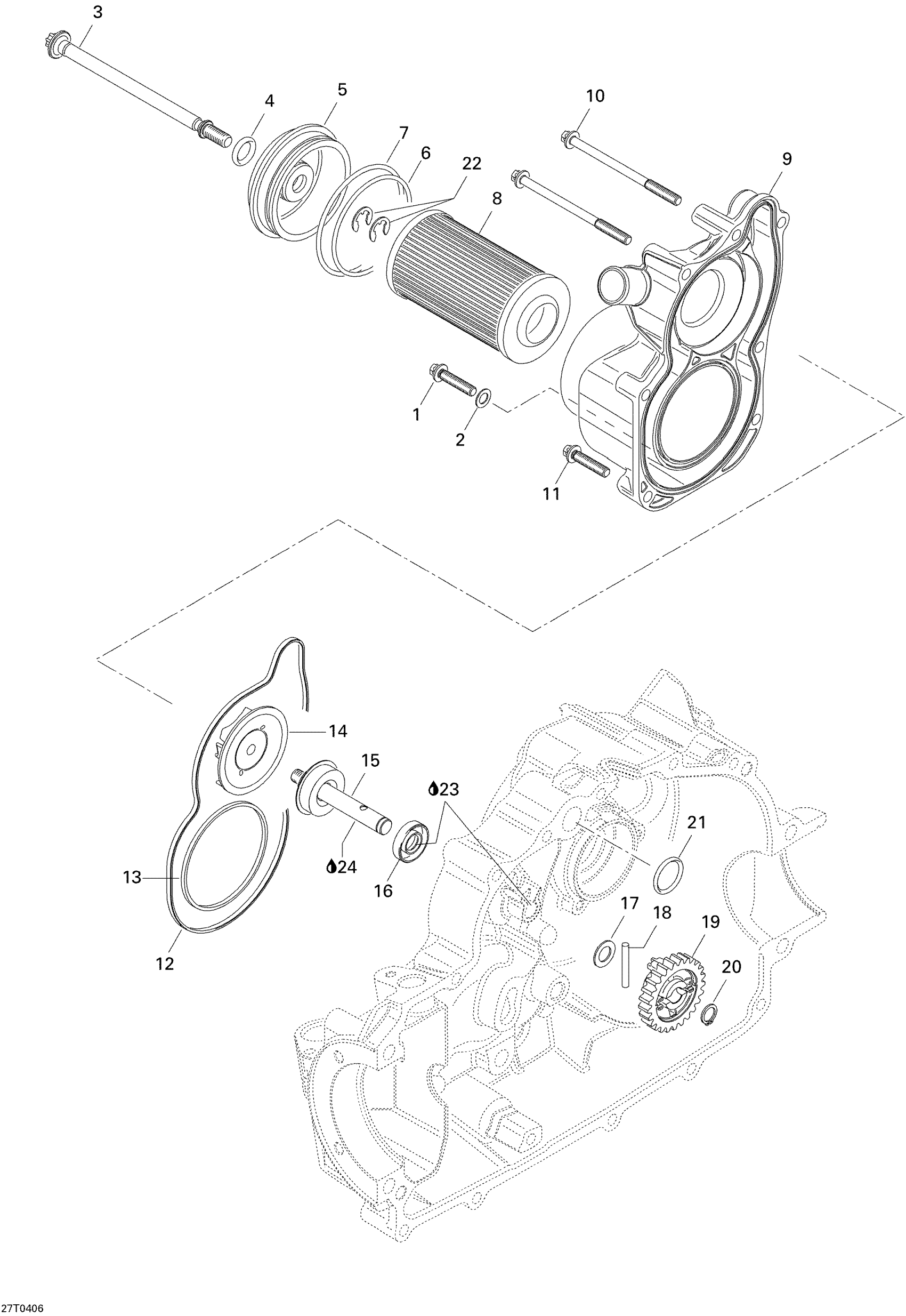

Can-Am Quest MAX, 2004 Engine Cooling Diagram
#
Description
Price
1
Torx Flange Screw M6 X 35
420440274
Unavailable
2
Sealing Washer
404146600
Unavailable
3
Oil Filter Screw Kit
295501207
Unavailable
4
O-Ring
420950860
Unavailable
5
OIL FILTER COVER - Call your local BRP dealership
420610326
Unavailable
7
O-Ring
420850500
Unavailable
8
Oil Filter
420956741
Unavailable
9
WATER PUMP HOUSING - Call your local BRP dealership
420222651
Unavailable
10
Torx Flange Screw M6 X 85
420641228
Unavailable
11
Torx Flange Screw M6 X 35
420440274
Unavailable
12
GASKET - Call your local BRP dealership
420630100
Unavailable
14
WATER IMPELLER - Call your local BRP dealership
420222540
Unavailable
15
Waterpump Shaft
420220827
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
19
Idle Gear, 25 Teeth
420635191
Unavailable
20
Snap Ring
420245330
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
RETAINING RING - Call your local BRP dealership
420845240
Unavailable
23
Grease, Super Lube
293550030
Unavailable
24
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
