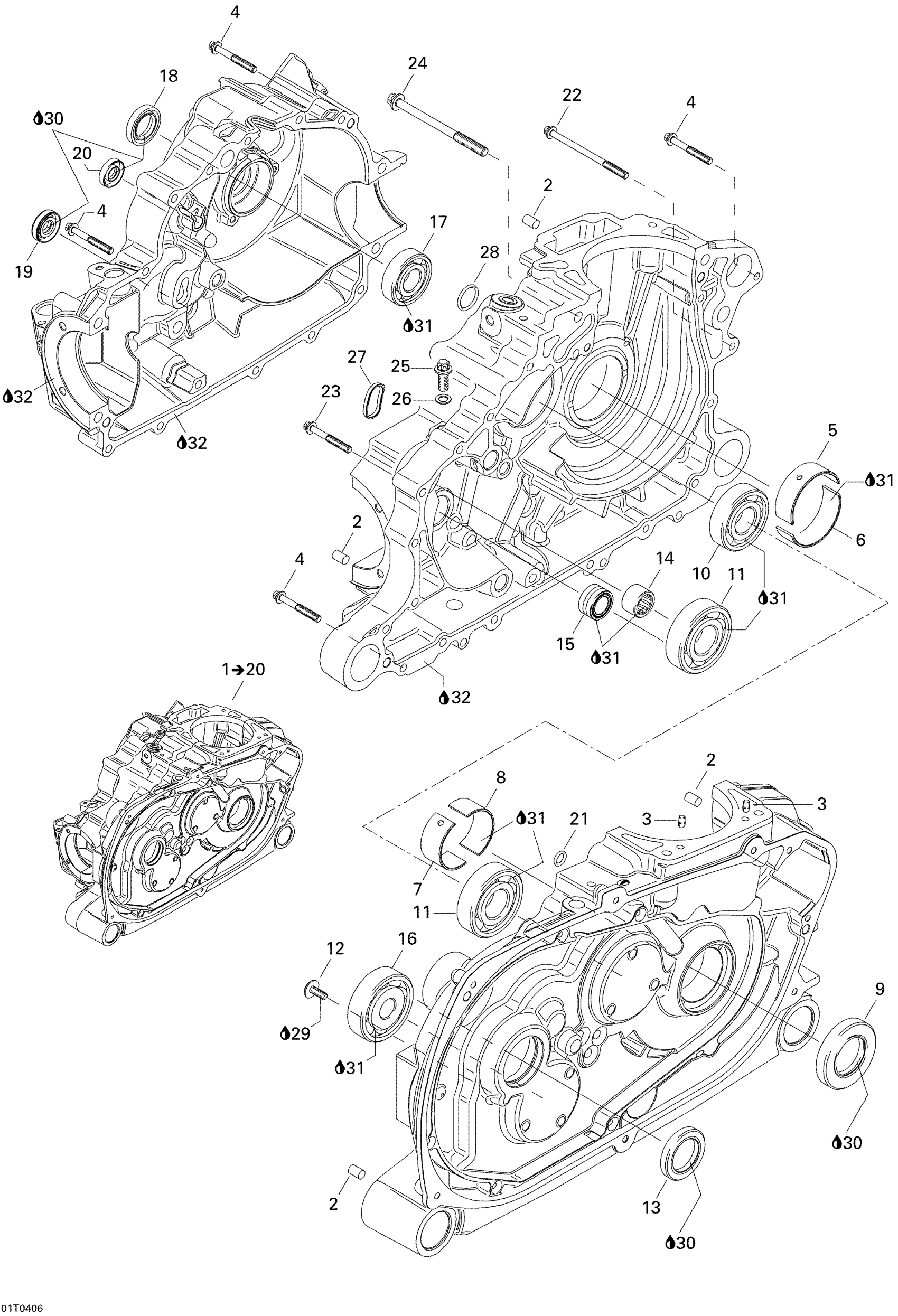

Can-Am Quest MAX, 2004 Crankcase Diagram
#
Description
Price
1
Crankcase Ass'y | Includes 1 To 21
420296652
Unavailable
2
Center Pin 8 X 12
420632010
Unavailable
3
Drive Pin 5 X 10
420929650
Unavailable
5
BEARING SLEEVE - Call your local BRP dealership
420933492
Unavailable
6
Bushing_Half - Call your local BRP dealership
420933495
Unavailable
7
Bushing_Half - Call your local BRP dealership
420233740
Unavailable
8
Bushing_Half - Call your local BRP dealership
420233745
Unavailable
9
Oil Seal
420630152
Unavailable
10
BALL BEARING 63/22 - Call your local BRP dealership
420632200
Unavailable
11
Ball Bearing
420932822
Unavailable
12
Torx Screw M6 X 16
420241529
Unavailable
13
Oil Seal
420950089
Unavailable
14
Needle Bushing
420832240
Unavailable
15
Needle Bushing
420232085
Unavailable
17
Ball Bearing 6204
420932433
Unavailable
18
Oil Seal
420930392
Unavailable
20
Oil Seal
420250450
Unavailable
21
O-Ring
420850900
Unavailable
22
Torx Flange Screw M6 X 85
420641228
Unavailable
24
Torx Flange Screw M8 X 90
420440412
Unavailable
27
GASKET - Call your local BRP dealership
420630180
Unavailable
28
O-RING - Call your local BRP dealership
420950180
Unavailable
30
Grease, Super Lube
293550030
Unavailable
31
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
