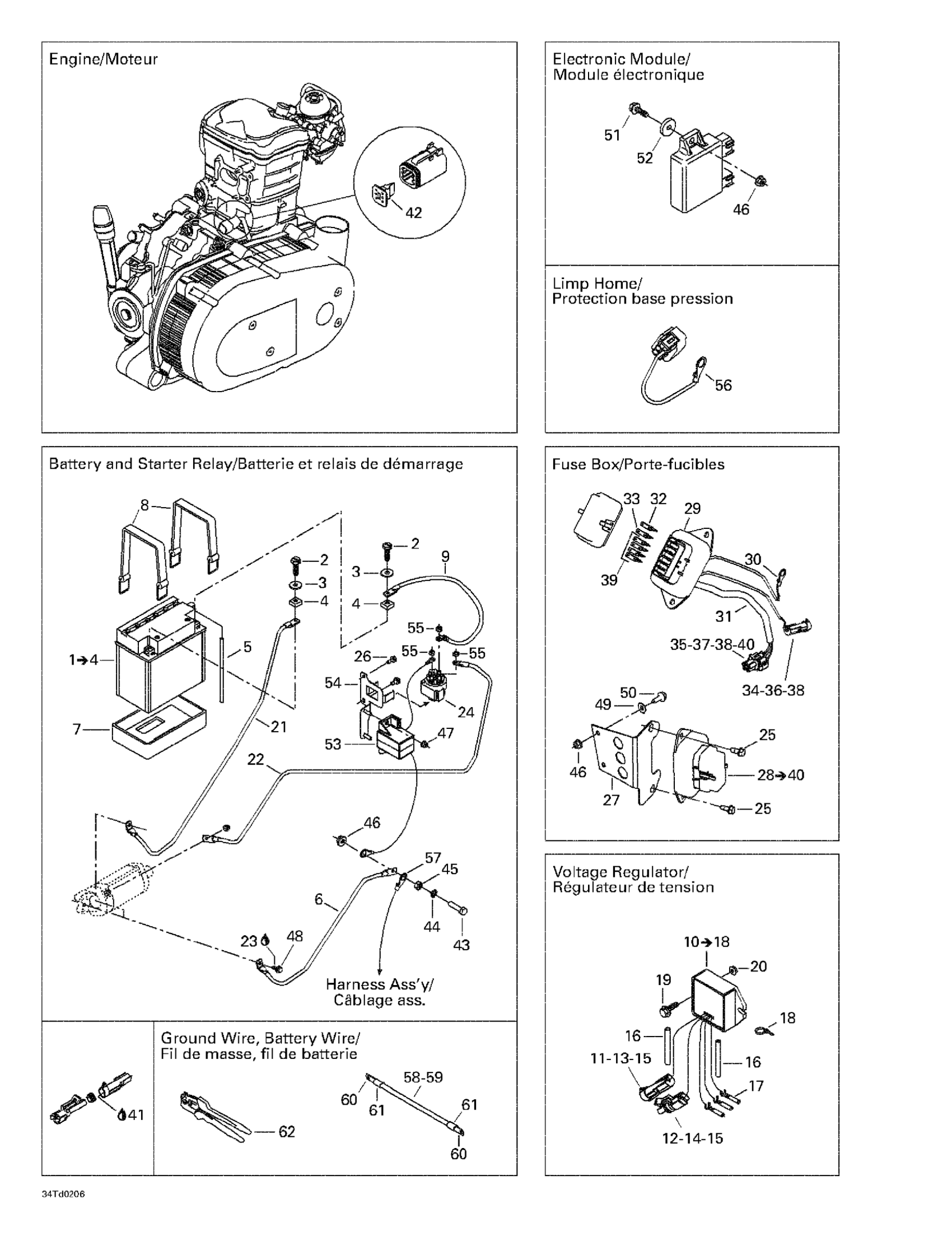

Can-Am Quest, Green/vert, 2002 Battery And Electrical Accessories Diagram

#

Description
Price

1

Battery 19A | Includes 5 to 8

278001756

$162.45

2

Hex. Screw M6 X 16

207161644

$0.61

3

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

4

Hex. Nut M6

232061414

$0.44

5

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Lower Battery Pad

278001746

Unavailable

8

Retainer Strap

293850097

$9.26

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Volt Regulator Ass'y | Includes 18 to 26

710000169

Unavailable

11

Male Terminal | XT Models

278000222

$2.55

12

Female Terminal

278000223

$2.55

13

Female Housing, 1 Circuit

278000161

$8.98

14

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

15

Wire Seal

278000218

$3.48

16

LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership

409901300

Unavailable

17

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

18

Tie Wrap 94 mm | 4X4

293750001

$0.83

19

Hex. Flange Screw M6 X 20

207662044

$1.66

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

21

Engine Ground Cable

710000211

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Loctite 243, 10 ml

293800060

$20.77

24

Starter Relay

710000344

$119.97

25

Hex. Flange Screw M6 X 16

210261650

$1.22

26

Hex. Self-threaded Screw 1/4"-20 X 3/4"

250000061

Unavailable

27

Module Bracket

710000138

Unavailable

28

Fuse Hoder | Includes 28 - 40.

710000212

$102.28

29

Fuse Box

710000213

Unavailable

30

Open Barrel Terminal

278001392

$4.12

31

Tubing 6 Mm 3000Mm Long

219704425

$13.14

32

Fuse, 30 Amperes

410917200

$3.22

33

Fuse, 20 Amperes

409003900

$3.22

34

Male Terminal

409004300

$5.46

35

Female Terminal

409007300

$0.36

36

Female Housing, 1 Circuit

278000161

$8.98

37

Wire Seal

278000218

$3.48

38

Wire Seal

710000048

$5.10

39

Fuse, 15 Amperes

278000343

$2.72

40

Female Housing, 5 Circuit

710000106

Unavailable

41

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

42

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

$2.48

43

Hex. Screw M6 X 25

207162544

$1.05

44

External Serrated Lock Washer 6 mm

234461608

$0.92

45

Hex. Nut M6

232061414

$0.44

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

47

Hex. Flange Elastic Nut M5

233251414

$1.66

48

Hex. Flange Screw M6 X 16

207661644

$0.61

49

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

50

Hex. Screw M5 X 20

207152044

$0.88

51

Hex. Flange Screw M6 X 25

207662544

$0.53

52

RUBBER WASHER - Call your local BRP dealership

250200002

$4.95

53

Coil External

710000317

Unavailable

54

Support

710000318

Unavailable

55

Hex. Elastic Stop Nut M6

232561600

$0.92

56

BARREL-OPEN - Call your local BRP dealership

710000293

Unavailable

57

Open Barrel Terminal

278001392

$4.12

58

Ground Cable Battery, no 6, meter)

278001680

Unavailable

Ground Cable Battery, No. 4, Meter

278001681

Unavailable

59

Cable Battery, no 6, meter)

278001690

Unavailable

60

Terminal 45°, Small Hole

278001682

Unavailable

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

61

Was 710000483 Heat Shrink Tubing

219704447

$74.58

62

Crimp Plier

529035730

Unavailable
