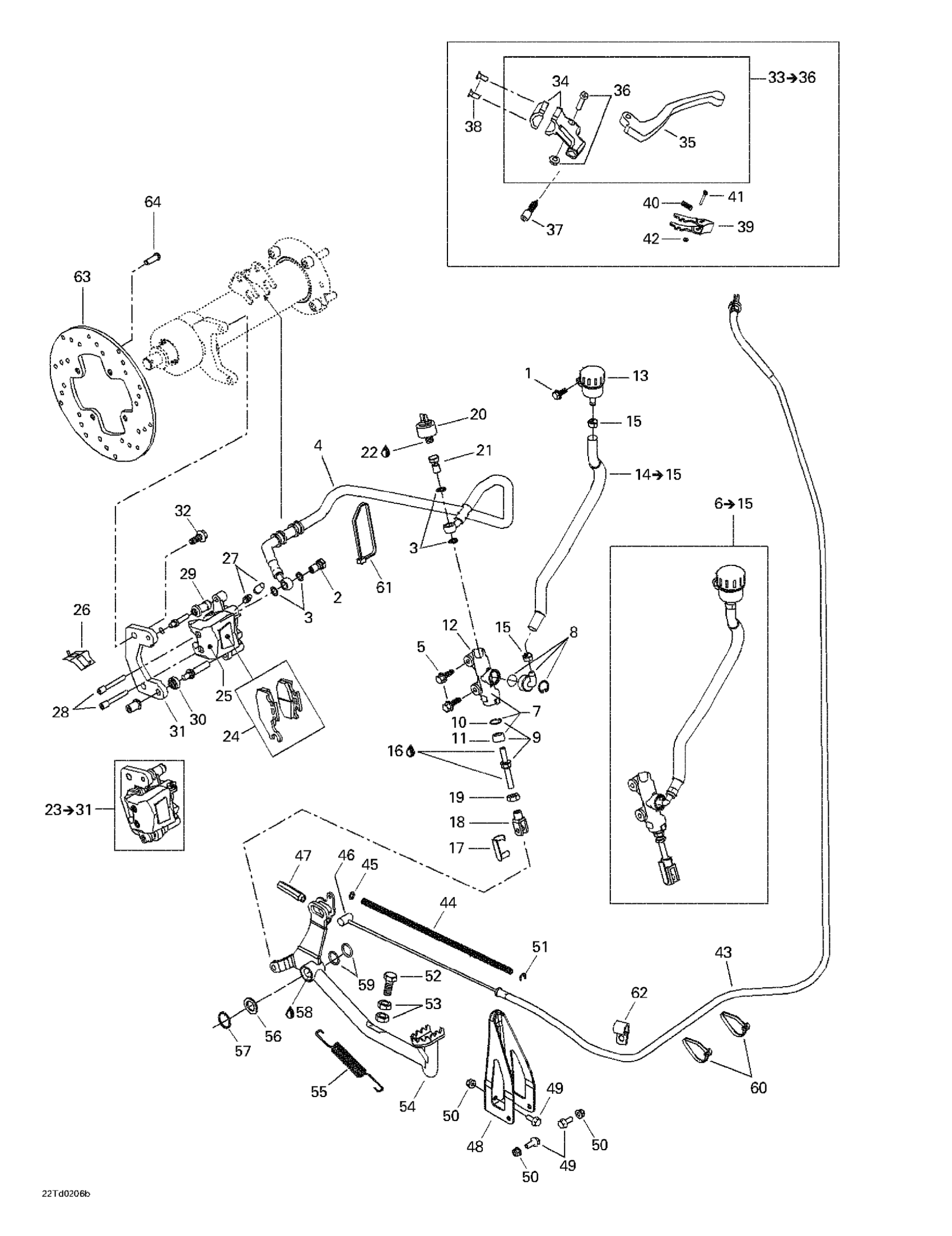

Can-Am Quest, Green/vert, 2002 Hydraulic Rear Brake Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

210261650

$1.22

2

Banjo Bolt (M10 x 1.25 thread)

705600609

Unavailable

3

Washer

414920600

Unavailable

4

BRAKE LINE - Call your local BRP dealership

705601392

$66.89

5

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

Unavailable

6

REAR MASTER CYLINDER ASS'Y - Call your local BRP dealership

705600154

Unavailable

7

Piston Set

705600063

Unavailable

8

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Circlip

705600068

Unavailable

11

Compression Boot

705600090

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Oil Tank, Brake Fluid Reservoir

705600182

$36.89

14

OIL HOUSING HOSE - Call your local BRP dealership

705600169

$46.89

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Pin Kit

219702305

Unavailable

18

Yoke

705600100

Unavailable

19

Hex. Nut M8

232081414

Unavailable

20

Interrupteur *Brake Switch

710001345

Unavailable

21

BANJO BOLT - Call your local BRP dealership

705600092

Unavailable

22

Was 293800013 Loctite 56765

219704454

Unavailable

23

REAR CALIPER - Call your local BRP dealership | Includes 51 To 59

705600122

Unavailable

24

Brake Pad Kit

705600150

$49.97

25

Piston Set

705600078

$36.89

26

Spring

705600079

Unavailable

27

Bleeding Screw

705600080

Unavailable

28

Pin Set (2)

705600081

Unavailable

29

Compression Boot

705600082

Unavailable

30

Compression Boot

705600083

Unavailable

31

Lining Support

705600149

Unavailable

32

Hex. Screw M10 X 14, Scotch Grip

250000163

Unavailable

33

Brake Handle | Includes 61 to 66

705600269

Unavailable

34

CLAMP KIT - Call your local BRP dealership

705600270

$65.35

35

LEVER - Call your local BRP dealership

705600186

$60.74

36

Pivot Kit

705600187

Unavailable

37

Cable Screw

250000030

Unavailable

38

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205351646

Unavailable

39

Lock lever

705600224

$13.05

40

SPRING - Call your local BRP dealership

705600225

$3.05

41

Screw M3 X 22

208032291

Unavailable

42

Elastic Stop Nut M3

232531423

$0.54

43

REAR BRAKE CABLE - Call your local BRP dealership

705600124

Unavailable

44

Spring

705600173

Unavailable

45

FLAT WASHER - Call your local BRP dealership

705600145

$4.58

46

CABLE BARREL - Call your local BRP dealership

705600146

$10.74

47

NUT - Call your local BRP dealership

705600147

Unavailable

48

Cable Support

705600191

Unavailable

49

Hex. Flange Screw M6 X 16

207661644

Unavailable

50

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

51

Circlip

705600272

$7.69

52

Hex. Screw M10 X 25

207102544

Unavailable

53

Hex. Nut M10 X 1.5

232006414

$1.11

54

BRAKE PEDAL, BLACK - Call your local BRP dealership

705600125

$53.82

55

BRAKE PEDAL SPRING - Call your local BRP dealership

705600107

$18.43

56

WASHER - Call your local BRP dealership

503107800

$2.03

57

CIRCLIP - Call your local BRP dealership

293370012

Unavailable

58

Synthetic Grease, 400 G

293550010

Unavailable

59

O-RING - Call your local BRP dealership

293300053

$5.35

60

Tie-Rap 180 mm

414115200

$0.09

61

Tie Wrap 368 mm

293750008

$0.85

62

CLIP - Call your local BRP dealership

414351600

$2.89

63

Brake disc

705600167

Unavailable

64

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09
