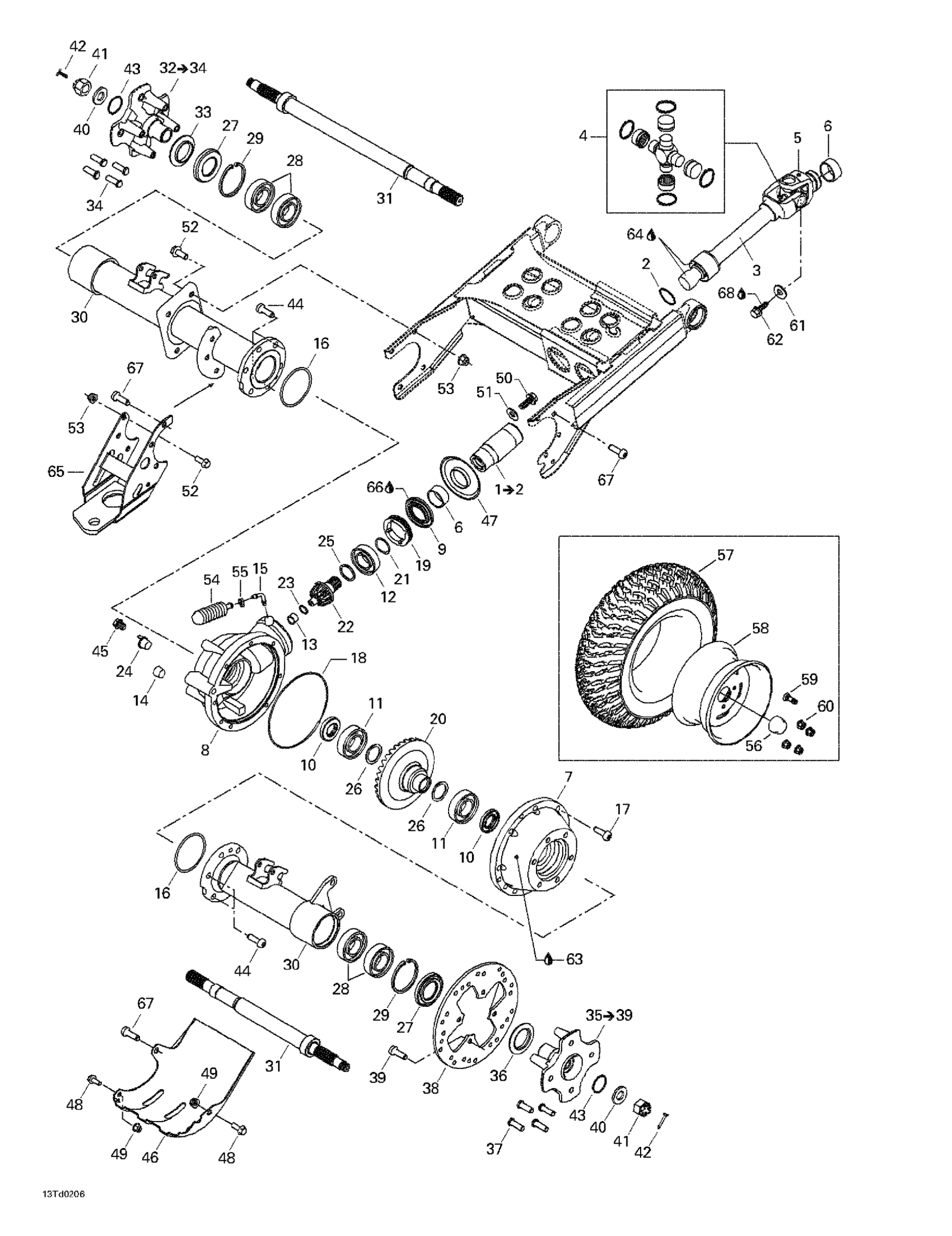

Can-Am Quest, Green/vert, 2002 Drive System, Rear Diagram

#

Description
Price

1

COUPLER - Call your local BRP dealership | Includes 1 - 2.

705500380

Unavailable

2

SEALING RING - Call your local BRP dealership

705500315

$5.35

3

Rear Axle

705500169

Unavailable

4

Ens. Croix*U-Joint Cross Kit

715900325

$69.20

5

Fixed Yoke Joint

715900116

$59.97

6

Wear Ring | 4X4

705400036

Unavailable

7

Rear Cover

705500175

Unavailable

8

Differential Carrier

705500177

Unavailable

9

Oil Seal

705500248

Unavailable

10

Gasket | 4X4

705401618

Unavailable

11

Ball Bearing | 4X4

705401606

Unavailable

12

Ball Bearing | 4X4

705500260

Unavailable

13

Needle Bearing | 4X4

705500261

Unavailable

14

Drain Plug | 4X4

705500894

$11.06

15

VENT VALVE - Call your local BRP dealership | 4X4

705500893

$14.37

16

O-RING - Call your local BRP dealership

705500263

$15.35

17

Screw | 4X4

705401601

Unavailable

18

Seal | 4X4

705500265

$16.12

19

Nut | 4X4

705401603

Unavailable

20

Crown Gear

705500223

$295.35

21

O-Ring | 4X4

705500267

Unavailable

22

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

23

RETAINING RING - Call your local BRP dealership | 4X4

705500269

$8.43

24

Protector Plug

705500246

Unavailable

25

Pinion Gear Shim .022"

705500075

Unavailable

26

Shim | 4X4

705401604

Unavailable

27

OIL SEAL - Call your local BRP dealership

705500099

$13.82

28

BALL BEARING - Call your local BRP dealership

705500251

Unavailable

29

RETAINING RING - Call your local BRP dealership

705500249

$11.51

30

RH AXLE TUBE - Call your local BRP dealership

705500250

Unavailable

LH AXLE TUBE - Call your local BRP dealership

705500182

$366.12

31

RH AXLE - Call your local BRP dealership

705500183

$283.05

LH AXLE - Call your local BRP dealership

705500184

$283.05

32

Wheel Hub Ass'y | Includes 50 - 52.

705500254

$188.43

33

WEAR RING - Call your local BRP dealership

705500100

Unavailable

34

Wheel Stud M10 X 1.25 | 2X4

250300055

Unavailable

35

Rear wheel hub | Includes 35 - 39.

705500256

$188.43

36

WEAR RING - Call your local BRP dealership

705500100

Unavailable

37

Wheel Stud M10 X 1.25 | 2X4

250300055

Unavailable

38

Brake disc

705600167

Unavailable

39

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

40

WASHER - Call your local BRP dealership

250200019

$2.02

41

Hex. Flange Castellated Nut M18

232291413

Unavailable

42

Cotter Pin

250400036

$1.74

43

O-RING - Call your local BRP dealership

705500271

Unavailable

44

Torx Screw M10 X 30

250000085

Unavailable

45

Fill level plug

705500228

Unavailable

46

Differential Protector, Black

705500185

Unavailable

47

JOINT PROTECTOR - Call your local BRP dealership

705500214

Unavailable

48

Hex. Flange Screw M8 X 16

207681644

Unavailable

49

Hex. Flange Nut M8

233181414

Unavailable

50

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

Unavailable

51

Flat Washer M10 | 4X4

250200014

$1.17

52

Hex. Flange Screw M10 X 25

207602544

Unavailable

53

Hex. Flange Elastic Nut M10

233201414

$1.26

54

Rubber Bellow | 4X4

705400552

Unavailable

55

Tie Wrap 94 mm | 4X4

293750001

$0.83

56

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

57

Rear Tire

705500230

Unavailable

58

Rear Rim, Grey

705500239

Unavailable

59

Rim Valve With Cap

705400193

Unavailable

60

HEX. NUT - Call your local BRP dealership

705400013

Unavailable

61

Washer

211200041

Unavailable

62

HEX. FLANGED SCREW M8 X 16 - Call your local BRP dealership

207681686

Unavailable

63

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

Unavailable

64

Graisse *Grease

293550062

$15.35

65

Trailer Hook, Black

705500244

Unavailable

66

Synthetic Grease, 400 G

293550010

Unavailable

67

Torx Screw M10 X 30

250000085

Unavailable

68

Loctite 271, 10 ml

293800005

Unavailable
