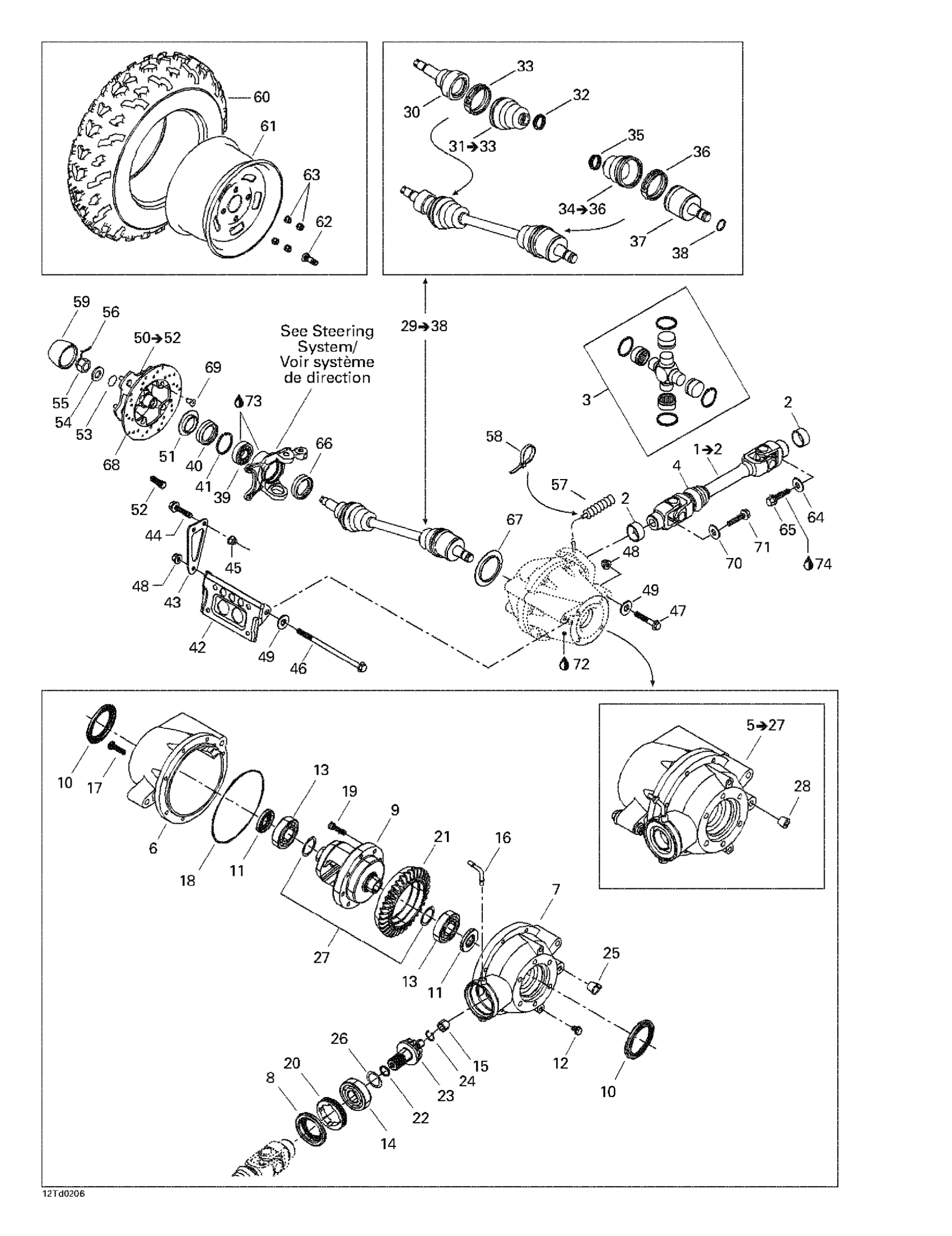

Can-Am Quest, Green/vert, 2002 Drive System, Front Diagram

#

Description
Price

1

Drive axle | Includes 1 - 2.

703500143

Unavailable

2

Wear Ring | 4X4

705400036

$25.35

3

Ens. Croix*U-Joint Cross Kit

715900325

$69.20

4

PROTECTOR - Call your local BRP dealership

705400051

Unavailable

5

Front differencial ass'y | Includes 5 - 27.

705400086

Unavailable

6

Front Cover

705400099

Unavailable

7

Differential Carrier

705500177

Unavailable

8

Oil Seal | 4X4

705401481

$18.43

9

DIFFERENTIAL - Call your local BRP dealership

705400404

Unavailable

10

OIL SEAL - Call your local BRP dealership

705400019

Unavailable

11

Gasket | 4X4

705401618

$17.66

12

Drain Plug | 4X4

705500894

$11.06

13

Ball Bearing | 4X4

705401606

$49.20

14

Ball Bearing | 4X4

705500260

$30.39

15

Needle Bearing | 4X4

705500261

Unavailable

16

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

17

Screw | 4X4

705401601

$9.29

18

Seal | 4X4

705500265

$16.12

19

RING GEAR SCREW - Call your local BRP dealership | 4X4

705400101

Unavailable

20

Nut | 4X4

705401603

$36.89

21

Crown Gear

705400103

Unavailable

22

O-Ring | 4X4

705500267

$6.25

23

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

24

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

25

Protector Plug

705500246

Unavailable

26

Pinion Gear Shim 1.67 mm

705502061

$16.12

27

Shim | 4X4

705401604

$55.35

28

Fill level plug

705500228

Unavailable

29

RH CV JOINT - Call your local BRP dealership | Includes 32 to 41

705400125

Unavailable

LH CV JOINT - Call your local BRP dealership | Includes 32 to 41

705400124

Unavailable

30

CV JOINT - Call your local BRP dealership

705400093

Unavailable

31

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

$41.51

32

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

33

Clamp | 4X4

705400180

Unavailable

34

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

$41.51

35

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

36

Clamp | 4X4

705400181

Unavailable

37

RH Plunging Joint

705400128

Unavailable

LH Plunging Joint

705400129

Unavailable

38

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

39

Ball Bearing

293350150

$51.93

40

OIL SEAL - Call your local BRP dealership

705500099

Unavailable

41

Circlip

293370019

$4.98

42

Bracket (Differential)

705400068

Unavailable

43

RH Diffential Front Bracket

705400069

Unavailable

44

Hex. Flange Screw M8 X 20

207682044

$0.92

45

Hex. Flange Elastic Nut M8

233281414

$1.14

46

Flange Screw M10 X 200, Scotch Grip

250000024

Unavailable

47

HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership | 7413/7414. 7415/7416. 7417/7418.

207506044

Unavailable

48

Hex. Flange Nut M10

233101414

$4.10

49

Flat Washer

250200003

Unavailable

50

Wheel Hub Ass'y | Includes 50 - 52.

705500254

Unavailable

51

WEAR RING - Call your local BRP dealership

705500100

Unavailable

52

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

53

O-RING - Call your local BRP dealership

705500271

Unavailable

54

WASHER - Call your local BRP dealership

250200019

Unavailable

55

Hex. Flange Castellated Nut M18

232291413

$2.82

56

Cotter Pin

250400036

$1.74

57

Rubber Bellow | 4X4

705400552

$6.02

58

Tie Wrap 94 mm | 4X4

293750001

$0.83

59

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

60

Tire 205 X 80 R12

705402890

$133.82

61

Front Rim

705400010

Unavailable

62

Rim Valve With Cap

705400193

$6.69

63

HEX. NUT - Call your local BRP dealership

705400013

Unavailable

64

Washer

211200041

$2.63

65

HEX. FLANGED SCREW M8 X 16 - Call your local BRP dealership

207681686

Unavailable

66

Oil Seal | 4X4

293250090

$23.05

67

Wear Ring

705400016

Unavailable

68

Brake disc 205 mm

705600168

Unavailable

69

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

70

Flat Washer M10 | 4X4

250200014

$1.17

71

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

72

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62

73

Synthetic Grease, 400 G

293550010

Unavailable

74

Loctite 271, 10 ml

293800005

$20.77
