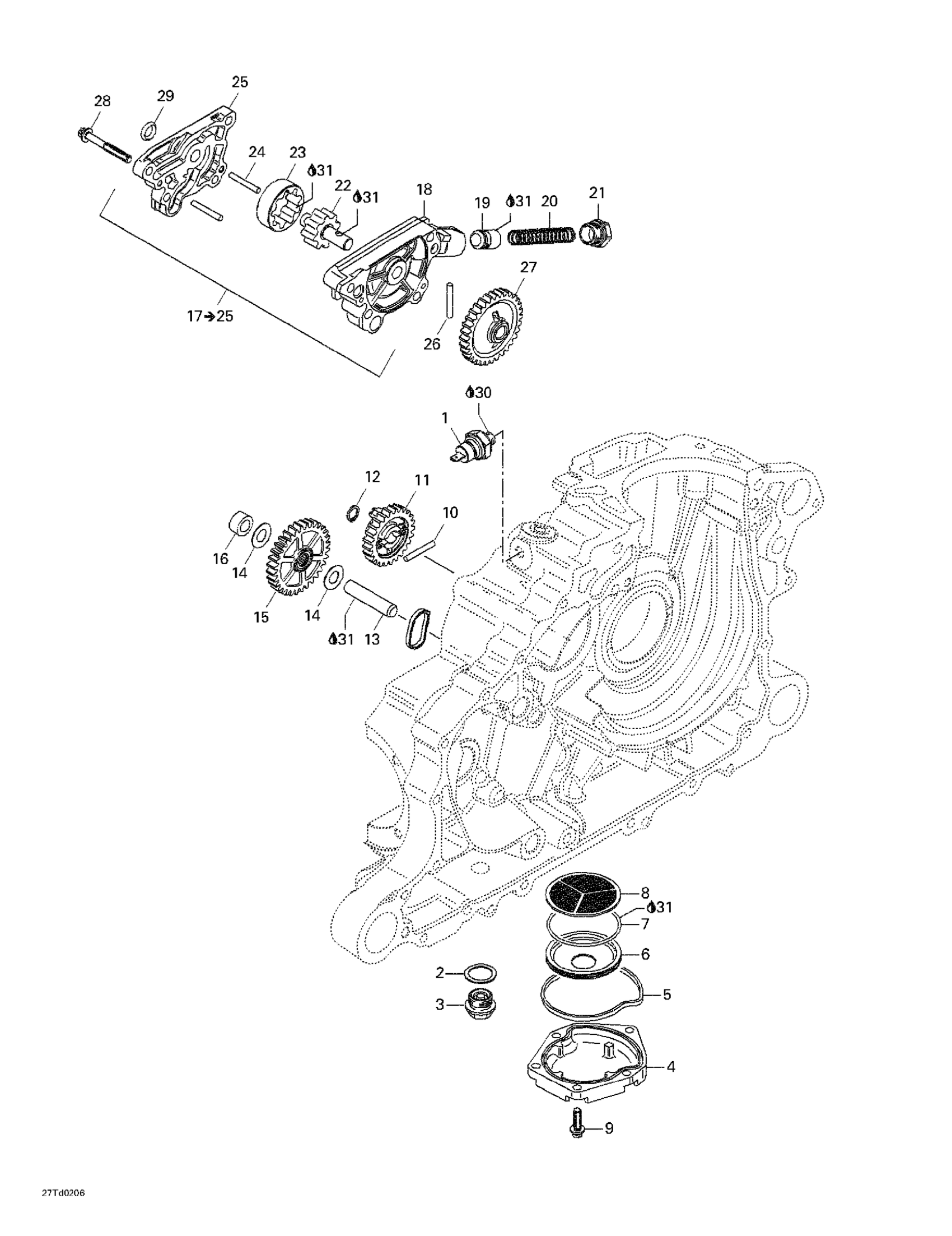

Can-Am Quest, Green/vert, 2002 Engine Lubrication Diagram

#

Description
Price

1

Oil Pressure Switch

711256775

Unavailable

2

Crush Washer

420552280

$3.43

3

Drain Plug M18 X 1.5

420840278

$22.36

4

OIL SIEVE COVER - Call your local BRP dealership

420211940

Unavailable

5

Rubber Ring

420650560

$14.34

6

Oil Collector

420256650

$46.99

7

O-Ring

420650697

$9.25

8

OIL SIEVE - Call your local BRP dealership

420256570

Unavailable

9

Torx Flange Screw M6 X 25

420641238

$3.07

10

Needle Pin

420232431

$4.21

11

Idle Gear, 25 Teeth

420635191

$15.64

12

Snap Ring

420245330

$1.64

13

Location Pin

711229300

Unavailable

14

THRUST WASHER - Call your local BRP dealership

420927952

Unavailable

15

SPROCKET, 32 TEETH - Call your local BRP dealership

420834267

Unavailable

16

Spacer

711247080

Unavailable

17

Oil Pump Ass'y | Includes 17 - 25.

711296505

Unavailable

18

Oil Pump Housing

420610221

$89.52

19

Piston Valve

711256637

Unavailable

20

Compression Spring

420238220

$7.24

21

Screw Plug M16 x 1.25

711641165

Unavailable

22

Oil Pump Shaft

711220812

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Needle Pin

420232431

$4.21

25

Oil Pump Cover

711610210

Unavailable

26

Needle Pin

420232431

$4.21

27

Oil Pump Gear, 32 Teeth

420635220

$19.37

28

Torx Flange Screw M6 x 45

711641193

Unavailable

29

O-ring

420250290

$7.60

30

Loctite 243, 10 ml

293800060

$21.49

31

Not Available As Spare Part - Friction Washer

Unavailable
