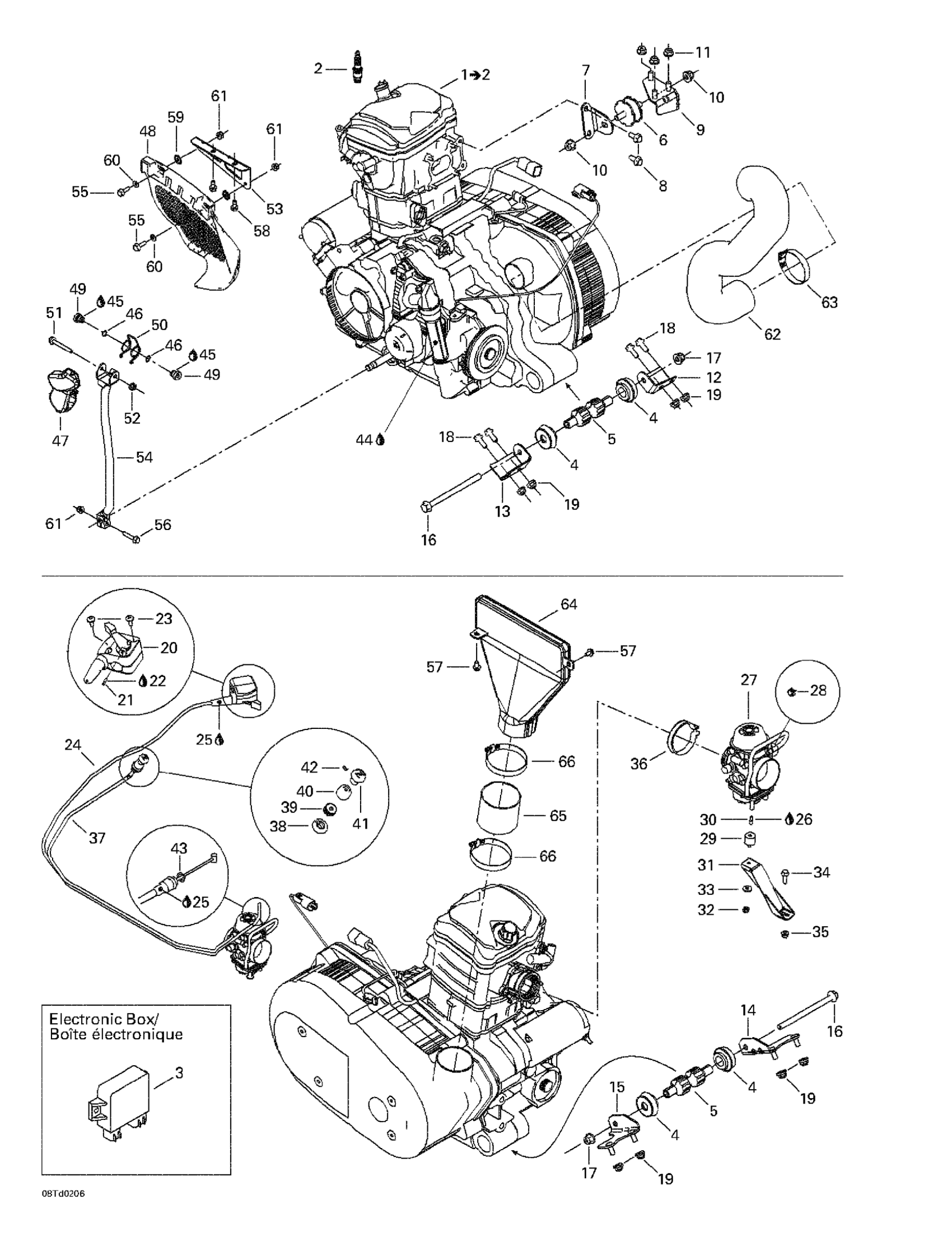

Can-Am Quest, Green/vert, 2002 Engine And Engine Support Diagram

#

Description
Price

1

Rotax 4 strokes engine "514" | Includes 1 - 2.

707000216

Unavailable

2

Spark Plug, NGK DCP-R8E

715900637

$5.66

3

Amplifier box

711265820

Unavailable

4

Anti-Vibration Mount

707000094

Unavailable

5

ENGINE SUPPORT BUSHING - Call your local BRP dealership

707000019

Unavailable

6

RUBBER MOUNT - Call your local BRP dealership

707000174

Unavailable

7

Engine Support, Black

707000159

Unavailable

8

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

(Scotch Grip)

(SCOTCHGRIP)

Unavailable

9

Engine Bracket

707000161

Unavailable

10

Hex. Flange Elastic Nut M10

233201414

$1.26

11

Hex. Flange Elastic Nut M8

233281414

$1.14

12

LH FRONT ENGINE BRACKET, BLACK - Call your local BRP dealership

707000132

$11.51

13

RH Front Engine Bracket, Black

707000101

Unavailable

14

RH Rear Engine Bracket

707000207

Unavailable

15

LH Rear Engine Bracket

707000210

Unavailable

16

Hex. Flange Screw M10 X 140

230604044

$5.19

17

Hex. Flange Elastic Nut M10

233201414

$1.26

18

Hex. Flange Screw M8 X 20

207682044

$0.92

19

Hex. Flange Elastic Nut M8

233281414

$1.14

20

THROTTLE HANDLE - Call your local BRP dealership

709400016

$55.35

21

SCREW-SET SOCKET DIN.913 - Call your local BRP dealership

250000017

Unavailable

22

Loctite BLACK/MAX Gel Tube, 20 g

293800061

Unavailable

23

Screw M5 x 30

205353046

Unavailable

24

THROTTLE CABLE - Call your local BRP dealership

707000097

Unavailable

25

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

26

Loctite 243, 10 ml

293800060

$20.77

27

CARBURETOR BSR42-7 - Call your local BRP dealership | Traxter 500 CVT

707200181

Unavailable

28

Spring Clamp

414420700

$0.68

29

Anti-vibration Mount

707000248

Unavailable

30

THREADED INSERT - Call your local BRP dealership

707000250

$11.51

31

CABURETOR SUPPORT - Call your local BRP dealership

707000252

Unavailable

32

HEX. ELASTIC STOP NUT - Call your local BRP dealership

212000006

$1.19

33

Washer | DS 650 X

391301600

$0.48

34

Hex. Flange Screw M6 X 20

207662044

$1.66

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

36

Clamp

512059062

Unavailable

37

CHOKE CABLE - Call your local BRP dealership

707000357

Unavailable

38

D SHAPE WASHER - Call your local BRP dealership

707000067

Unavailable

39

HOLDER CAP - Call your local BRP dealership

707000087

$4.58

40

Rubber Cap

707000088

Unavailable

41

BUTTON - Call your local BRP dealership

707000089

$9.20

42

PHILLIPS SCREW M3 X 5 - Call your local BRP dealership

250000108

Unavailable

43

O-RING - Call your local BRP dealership

293300075

$5.35

44

Not Available As Spare Part - Friction Washer

Unavailable

45

Synthetic Grease, 400 G

293550010

Unavailable

46

O-RING - Call your local BRP dealership

293300081

$5.68

47

SHIFTER HANDLE - Call your local BRP dealership | Includes 39 To 40

705500282

Unavailable

48

Transmission Guide

707000139

Unavailable

49

PIVOT SLEEVE - Call your local BRP dealership

707000205

Unavailable

50

LEVER SPRING - Call your local BRP dealership

705500283

$10.74

51

Hex. Flange Screw M6 X 50

207665044

$3.38

52

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

53

Guide Support

707000187

Unavailable

54

LOWER LEVER - Call your local BRP dealership

707000169

Unavailable

55

Hex. Flange Screw M6 X 20

207662044

$1.66

56

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

57

Hex. Forming Screw M6 X 10

210261050

$1.42

58

Hex. Flange Screw M6 X 16

210261650

$1.22

59

Lock Washer Serrated M6

250200041

$0.92

60

Flat Washer

224061121

$0.44

61

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

62

AIR INTAKE - Call your local BRP dealership

707000152

Unavailable

63

Tridon Clamp

293650023

$11.72

64

Exhaust

707000153

Unavailable

65

FLEXIBLE ADAPTOR - Call your local BRP dealership

707000154

Unavailable

66

Tridon Clamp

293650064

$7.80
