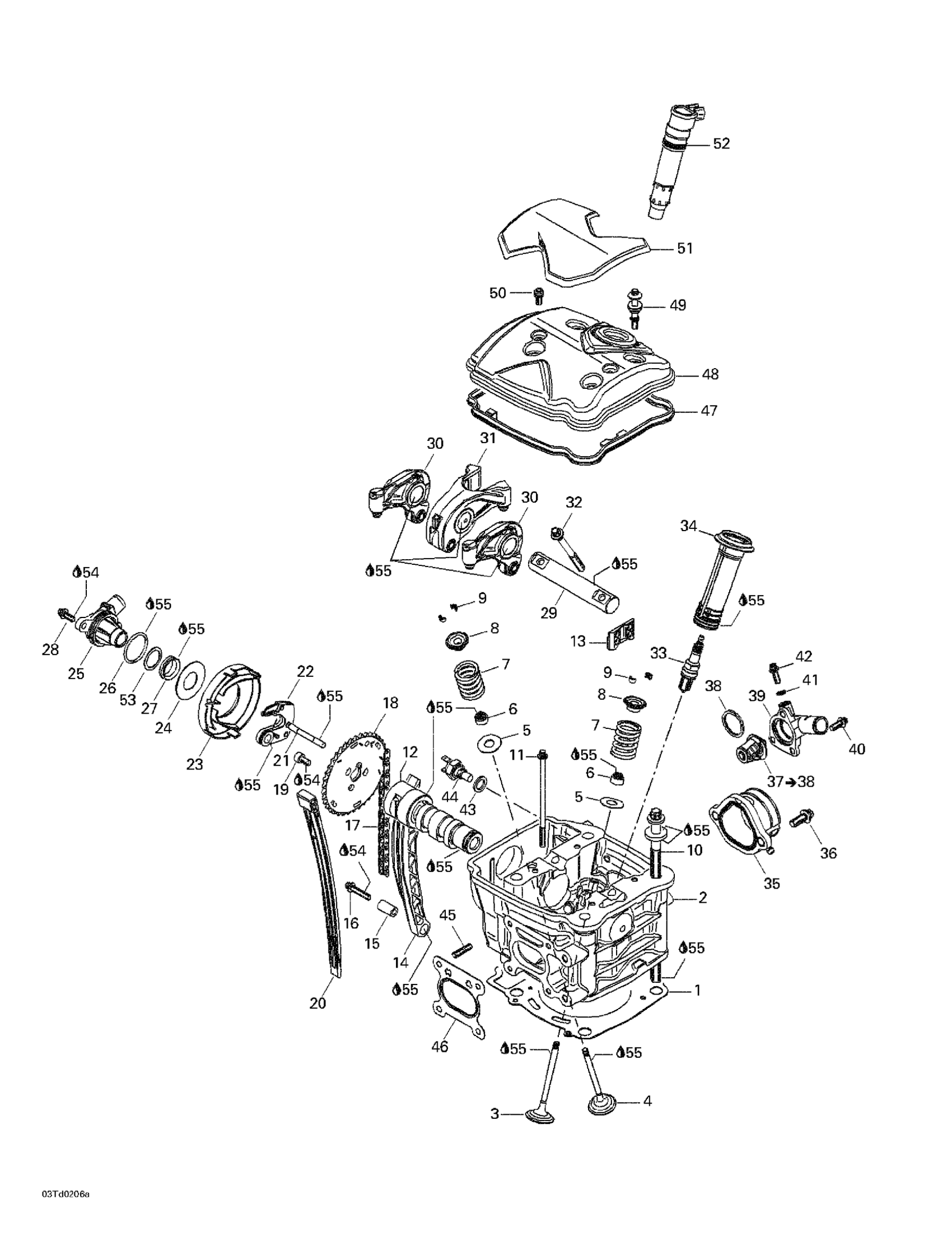

Can-Am Quest, Green/vert, 2002 Cylinder Head Diagram

#

Description
Price

1

GASKET - Call your local BRP dealership

711950660

Unavailable

2

Cylinder Head

711613476

Unavailable

3

Intake Valve 38MM

420253163

$38.78

4

Exhaust Valve 31 mm

420254027

$84.30

5

Thrust Washer

420627525

$1.72

6

Seal

420230510

$13.51

7

Valve Spring

420238180

$14.90

8

Valve Spring Retainer

420254283

$8.09

9

Valve Cotter

420253645

$7.01

10

TORX SCREW M11 X 215 - Call your local BRP dealership

420641020

Unavailable

11

Torx Screw M6 x 105

711641333

Unavailable

12

Camshaft

711220770

Unavailable

13

Camshaft Guide

420851694

$30.57

14

Chain Tension Guide

420236541

$14.90

15

Distance Sleeve

711247100

Unavailable

16

Torx Flange Screw M6 X 35

420641258

$3.19

17

Camshaft Chain

420297957

$94.75

18

Timing Gear, 38 Teeth

420254309

$66.39

19

Allen Screw M6 X 12

420840032

$4.15

20

Chain Guide

420236501

$13.18

21

Deko Shaft

711220792

Unavailable

22

Centrifugal Weight

711231061

Unavailable

23

Cover

711660032

Unavailable

24

Thrust Washer

711627490

Unavailable

25

CAMSHAFT COVER - Call your local BRP dealership

711610270

Unavailable

26

O-Ring

711950872

Unavailable

27

V-Ring 20S FPM Blow By Valve

420630125

$10.76

28

Hex. Flange Screw M6 x 16

711241751

Unavailable

29

Rocker Arm Shaft

711854599

Unavailable

30

Rocker Arm, Exhaust

420254329

$129.07

31

Rocker Arm, Inner

420254316

$170.12

32

Torx Screw M8 X 72

420641080

$5.04

33

Spark Plug, NGK DCP-R8E

715900637

$6.49

34

Spark Plug Pipe

420851754

$26.09

35

Rubber Flange

420267270

$79.07

36

TORX FLANGE SCREW M8 X 25 - Call your local BRP dealership

711641243

Unavailable

37

Thermostat | Includes 53 to 54

420222495

$35.04

38

Thermostat Gasket

420650300

$8.09

39

Thermostat Cover

711222660

Unavailable

40

Torx Flange Screw M6 x 16

711641043

Unavailable

41

Sealing Washer

404146600

$0.72

42

Torx Flange Screw M6 x 16

711641043

Unavailable

43

Copper Washer

420250640

$0.93

44

Temperature Switch

420897938

Unavailable

45

Stud M6 x 16

711240010

Unavailable

46

Gasket

711950680

Unavailable

47

Sealing Ring

420630071

$17.13

48

Valve Cover

711610185

Unavailable

49

Allen Screw M6 x 30,5

420440561

$4.21

50

TORX SCREW M6 X 8 - Call your local BRP dealership

420641488

Unavailable

51

Valve Cover

711660200

Unavailable

52

Ignition Coil

711664025

Unavailable

53

THRUST WASHER - Call your local BRP dealership

420227440

Unavailable

54

Loctite 243, 10 ml

293800060

$21.49

55

Not Available As Spare Part - Friction Washer

Unavailable
