Description

Price

1

GASKET - Call your local BRP dealership

711630080

Unavailable

2

Cylinder Ass'y | Includes 2 - 3.

711923947

Unavailable

3

Drive Pin 5 X 10

420929650

$1.34

4

Piston Ass'y, Standard, 99.96 mm | Traxter 500 CVT, Includes 4 To 5

420296565

$161.17

5

Piston Set Ring, Standard | Traxter 500 CVT

420890380

$58.47

6

Piston Pin

420216250

$21.42

7

Circlip

420845580

$2.13

8

Chain Tensioner Housing

420236510

$11.09

9

O-Ring

420430373

$2.63

10

Torx Flange Screw M6 X 25

420641238

$2.68

11

Chain Tensioner Plunger

420236521

$14.48

12

Spring

420238120

$7.23

13

Plug Screw

420641150

$7.23

14

O-Ring

420250890

$2.50

15

Engine Gasket Set

711684120

Unavailable

16

Loctite 243, 10 ml

293800060

$20.77

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Crankshaft Ass'y

711296861

Unavailable

19

Connecting Rod | Includes 19 - 20.

711917545

Unavailable

20

Connecting rod Screw M10 X 1

420640991

$9.37

21

Half-Bearing

420933523

$14.27

22

Woodruff Key 4 X 5

420246570

$3.29

23

SHIM - Call your local BRP dealership

420627363

$13.82

24

Shim

711627502

Unavailable

25

Balancing Shaft

711220785

$360.74

26

PLUG - Call your local BRP dealership

420660300

$8.43

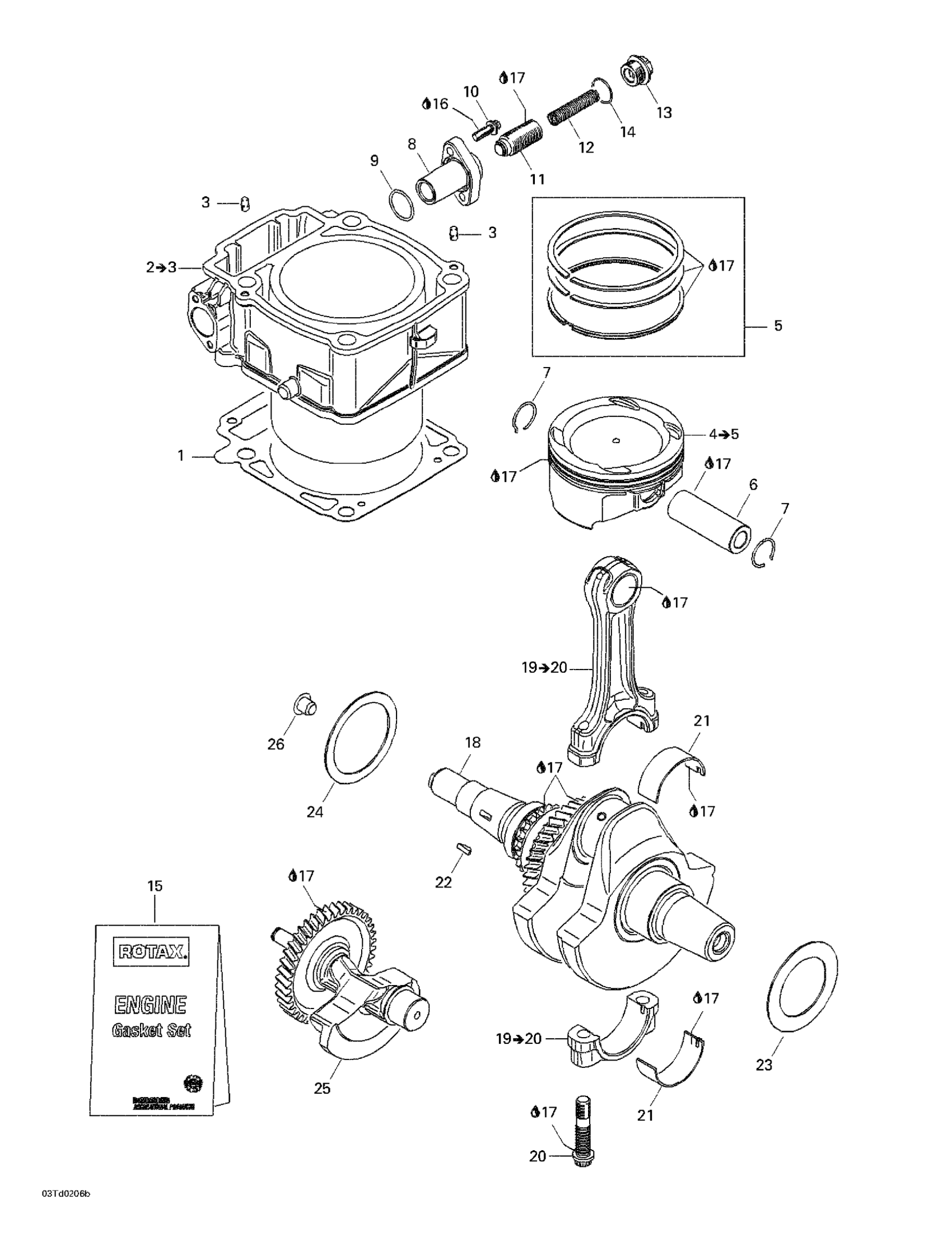

Can-Am Quest, Green/vert, 2002 Crankshaft And Cylinder Diagram
