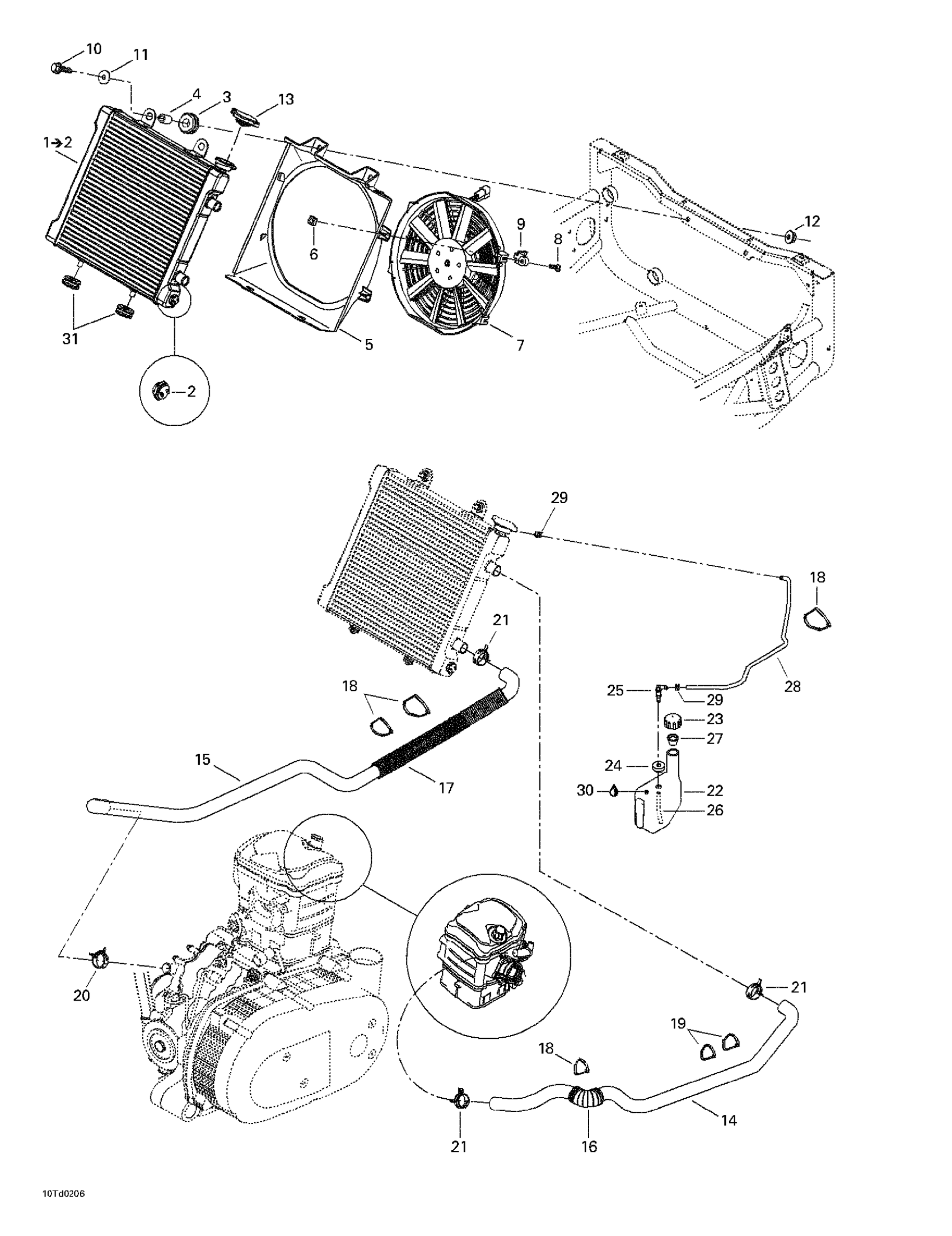

Can-Am Quest, Green/vert, 2002 Cooling System Diagram

#

Description
Price

1

Radiator ass'y | Includes 1 - 2.

709200088

Unavailable

2

Temperature Sensor

715900095

$66.89

3

Grommet

709000582

$4.38

4

Bushing

293900019

Unavailable

5

Outlet shroud

709200013

Unavailable

6

Square Nut M6

232862412

$1.18

7

Fan ass'y

709200004

Unavailable

8

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

9

Fan Support

709200017

Unavailable

10

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

11

Flat Washer

250200082

Unavailable

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

13

Radiator Pressure Cap

709200207

Unavailable

14

RADIATOR INLET HOSE - Call your local BRP dealership

709200047

Unavailable

15

RADIATOR OUT HOSE - Call your local BRP dealership

709200048

Unavailable

16

PROTECTION SHIELD - Call your local BRP dealership

709200031

Unavailable

17

PROTECTION SHIELD - Call your local BRP dealership

709200032

Unavailable

18

Tie-Rap 180 mm

414115200

$0.09

19

Tie Wrap 368 mm

293750008

$0.85

20

Norma Spring Clamp

293650108

Unavailable

21

Norma Spring Clamp

293650109

Unavailable

22

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

23

TANK CAP - Call your local BRP dealership

709200009

Unavailable

24

Grommet

709200285

$8.38

25

Elbow Male Connector

414580600

$3.50

26

Was 415110000 Polyurethane Hose 5.2 mm

219704414

Unavailable

27

PROTECTION CAP - Call your local BRP dealership

709200205

Unavailable

28

Was 415110000 Polyurethane Hose 5.2 mm

219704414

Unavailable

29

Spring Clamp

414554800

$0.83

30

ANTIFREEZE BOTTLE12X1 - Call your local BRP dealership

219700362

Unavailable

31

Grommet

709000582

$4.38
