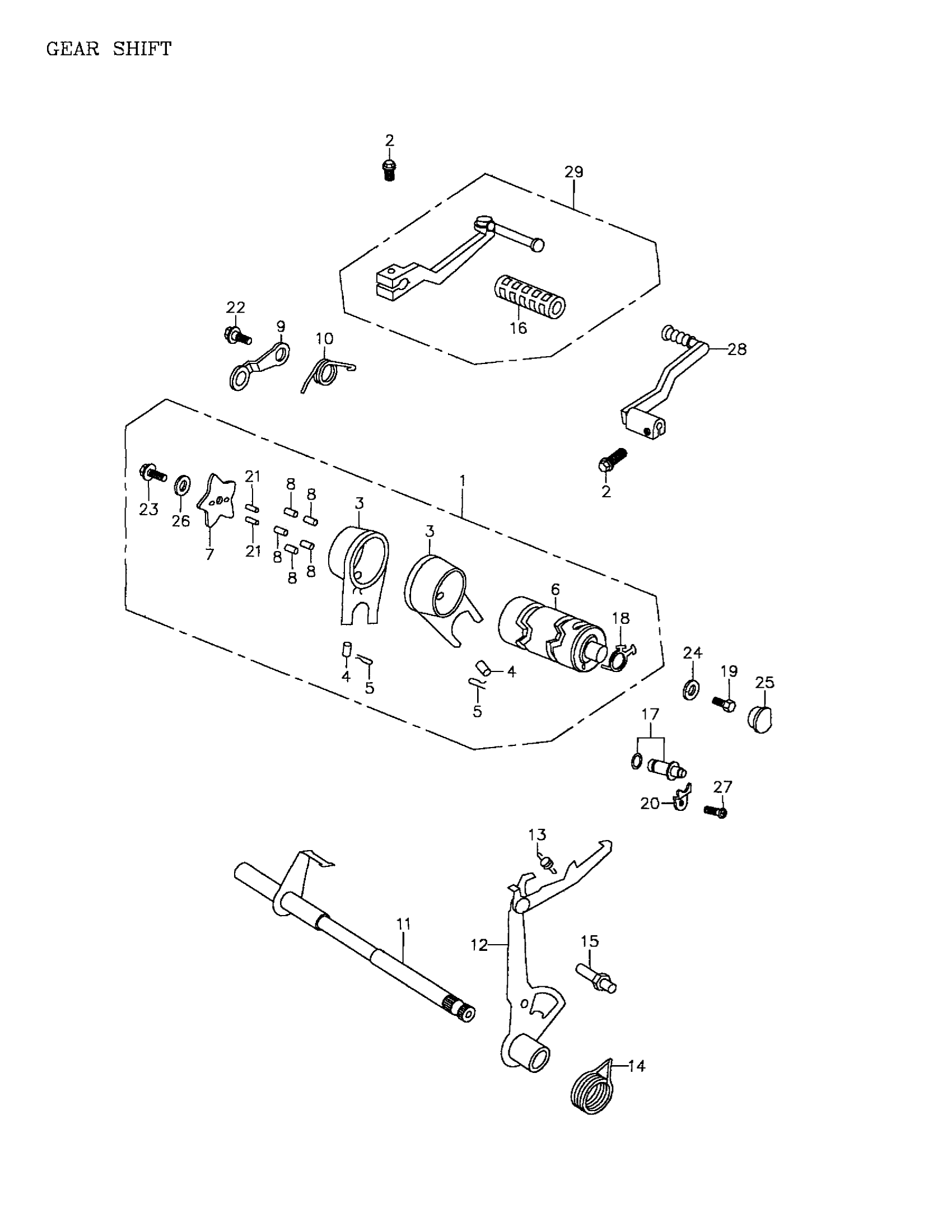

Can-Am Quest 90 4-strokes, 2003 Gear Shift 172a-13 Diagram

#

Description
Price

1

GEAR SHIFT DRUM ASSY. - Call your local BRP dealership

A24300152000

$126.12

2

Hex. Washer Face Bolt M6 X 20

A960000602010

Unavailable

3

GEAR SHIFT FORK - Call your local BRP dealership

A24211152000

Unavailable

4

Gear Shift Fork Guide Pin

A24261152000

Unavailable

5

Gear Shift Fork Guide Pin Clip

A94251152000

Unavailable

6

Gear Shift Drum

A24301152000

Unavailable

7

SHIFT DRUM STOPPER PLATE - Call your local BRP dealership

A24411152000

Unavailable

8

Gear Shift Drum Pin

A24421152000

Unavailable

9

Gear Shift Drum Stopper Comp.

A24430152000

Unavailable

10

Shift Drum Stopper Spring

A24435152000

Unavailable

11

Gear Shift Spindle Comp.

A24611152000

Unavailable

12

GEAR SHIFT ARM - Call your local BRP dealership

A24630152000

$13.05

13

GEAR SHIFT ARM SPRING - Call your local BRP dealership

A24641152000

$3.92

14

GEAR SHIFT RETURN SPRING - Call your local BRP dealership

A24651152000

$6.89

15

Gear Shift Return Spring Pin

A24652152000

Unavailable

16

Starter Rubber

A28311152000

Unavailable

17

NEUTRAL CONTACT SWITCH ASS'Y - Call your local BRP dealership

A35750108000

$12.28

18

Neutral Switch Rotor

A35753108000

Unavailable

19

HEXAGONAL BOLT M6 X 16 - Call your local BRP dealership

A920000601610

$1.35

20

Contact Fixing Plate

A35755108000

Unavailable

21

ROLLER - Call your local BRP dealership

A9622030085

$4.58

22

Shaft Drum Stopper Arm Pivot

A901110601416

Unavailable

23

Hex. Bolt M6 X 18

A920000601810

Unavailable

24

PLAIN WASHER, 6 X 18 X 2 - Call your local BRP dealership

A941010618020

Unavailable

25

Rubber Cap

A96421152000

Unavailable

26

Plain Washer

A941010618012

Unavailable

27

Pan Head Phillips Bolt M6 X 12

A9350006012

Unavailable

28

Gear Shaft Pedal Comp.

A24701152001

Unavailable

29

PULL STARTER ARM ASS'Y - Call your local BRP dealership

A28300152000

Unavailable
