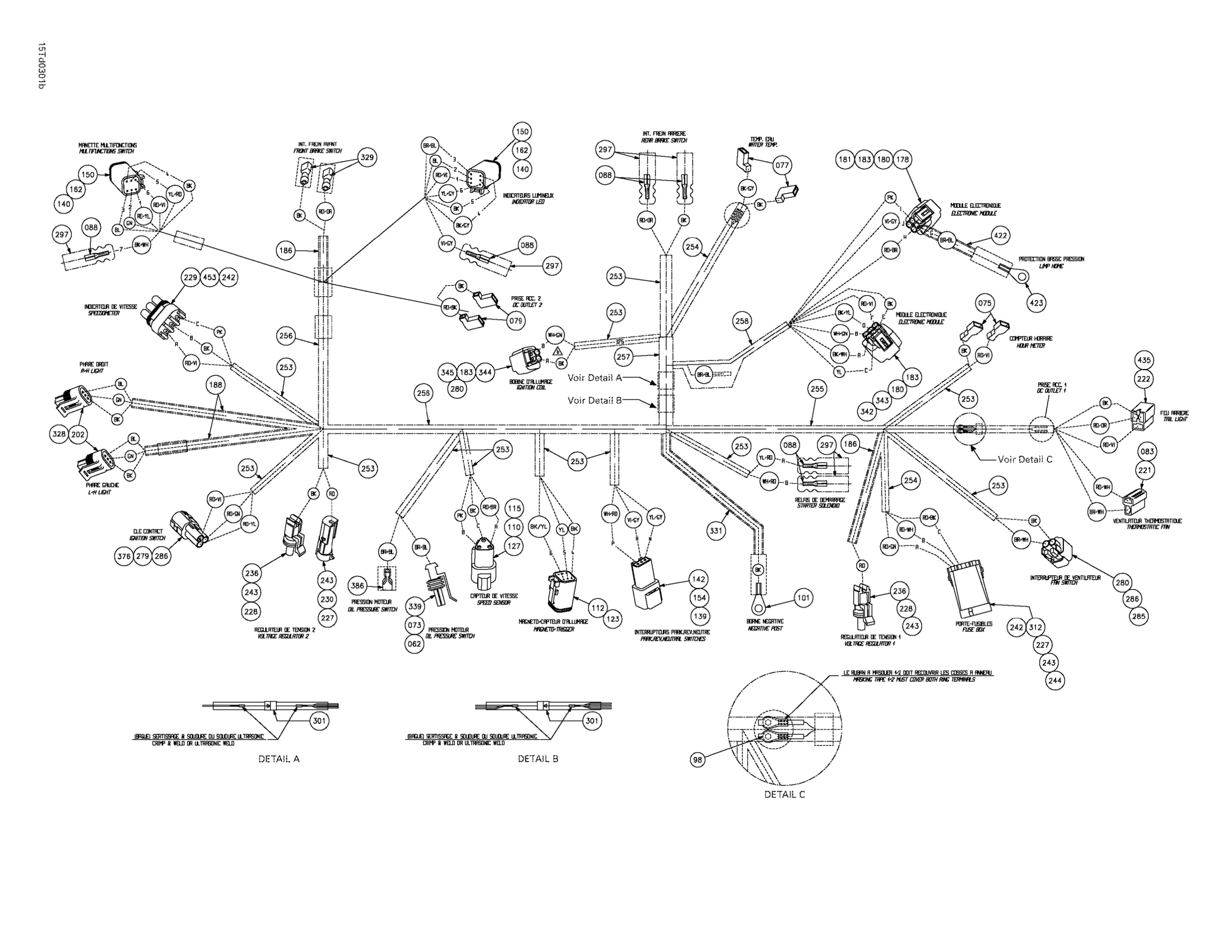

Can-Am Quest 650, 2003 Main Harness Diagram

#

Description
Price

62

Harness Ass'y | Includes 62 - 435.

710000348

Unavailable

62

Female Terminal

278001014

$2.72

73

Wire Seal

278001013

$2.72

75

Female Terminal

409010700

$5.08

77

Female Terminal

409010300

$4.12

79

Female Terminal

710000038

$4.60

83

Female Terminal

561503100

Unavailable

85

Female Terminal

710000221

Unavailable

88

Female Terminal | DS 650 X

278001009

$2.55

92

Female Housing (8 Circuits)

710000035

Unavailable

98

Open Barrel

710000222

Unavailable

101

Open Barrel Terminal

278001392

$4.12

110

Male Terminal

278000631

$4.12

112

Female Terminal

278000632

$1.69

115

Male Housing

278002378

$10.91

123

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

127

Male Lock, 3 Circuits

409207600

$3.02

139

MALE TERMINAL - Call your local BRP dealership

409014800

$3.14

140

FEMALE TERMINAL - Call your local BRP dealership

409015100

$3.97

142

MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership

710000044

$23.51

150

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

$9.48

154

MALE LOCK, 3 CIRCUITS - Call your local BRP dealership

710000043

$5.46

162

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

$3.05

178

Lock, 4 Circuits

710000187

Unavailable

180

FEMALE TERMINAL - Call your local BRP dealership

278001638

$2.99

181

Housing Tab, 4 Circuits

710000188

Unavailable

183

WIRE SEAL - Call your local BRP dealership

710000189

$2.28

186

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

188

Not Available As Spare Part - Friction Washer

Unavailable

202

Female Terminal

278001114

$2.55

221

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

222

Female Housing

409204300

Unavailable

227

Male Terminal

409004300

$5.46

228

Female Terminal

409007300

$0.36

229

Female Terminal

278000223

$2.55

230

Female Housing, 1 Circuit

278000161

$8.98

236

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

242

Wire Seal

278000218

$3.48

243

Wire Seal

710000048

$5.10

244

Wire Seal

278000216

$2.55

253

Tubing 6 Mm 3000Mm Long

219704425

$13.14

254

Was 409901700 Tubing (9 mm)

219704399

$79.97

255

Was 409901800 Tubing (13 mm)

219704400

$9.40

256

Tubing 16 Mm 1000Mm Long

219704408

$6.23

257

Was 409901600 Tubing 19mm

219704398

$89.97

258

Tubing 10 MM 1000MM Long

219704407

$2.20

279

Male Terminal

409011300

$5.78

280

Female Terminal

409012100

$3.73

285

HOUSING-TAB - Call your local BRP dealership

710000078

$19.77

286

Seal

409012300

$4.38

297

Insulated Sheath

278001007

$3.22

301

Not Available As Spare Part - Friction Washer

Unavailable

312

MALE HOUSING, 5 CIRCUITS - Call your local BRP dealership

710000107

$8.43

328

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278001467

$9.97

329

Female Terminal

710000082

$6.03

331

PROTECTOR TUBE, 4MM 1000MM LONG - Call your local BRP dealership

219704446

Unavailable

339

Male Housing, 1 Circuit

278001012

$12.65

342

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710000190

Unavailable

343

LOCK, 6 CIRCUITS - Call your local BRP dealership

710000191

$7.66

344

FEMELLE HOUSING, 2 CIRCUITS - Call your local BRP dealership

278001637

$10.74

345

SECONDARY LOCK - Call your local BRP dealership

278001640

$2.99

376

HOUSING-TAB - Call your local BRP dealership

710000219

$8.43

386

Female Terminal

710000255

Unavailable

422

Not Available As Spare Part - Friction Washer

Unavailable

423

BARREL-OPEN - Call your local BRP dealership

710000293

Unavailable

435

Not Available As Spare Part - Friction Washer

Unavailable
