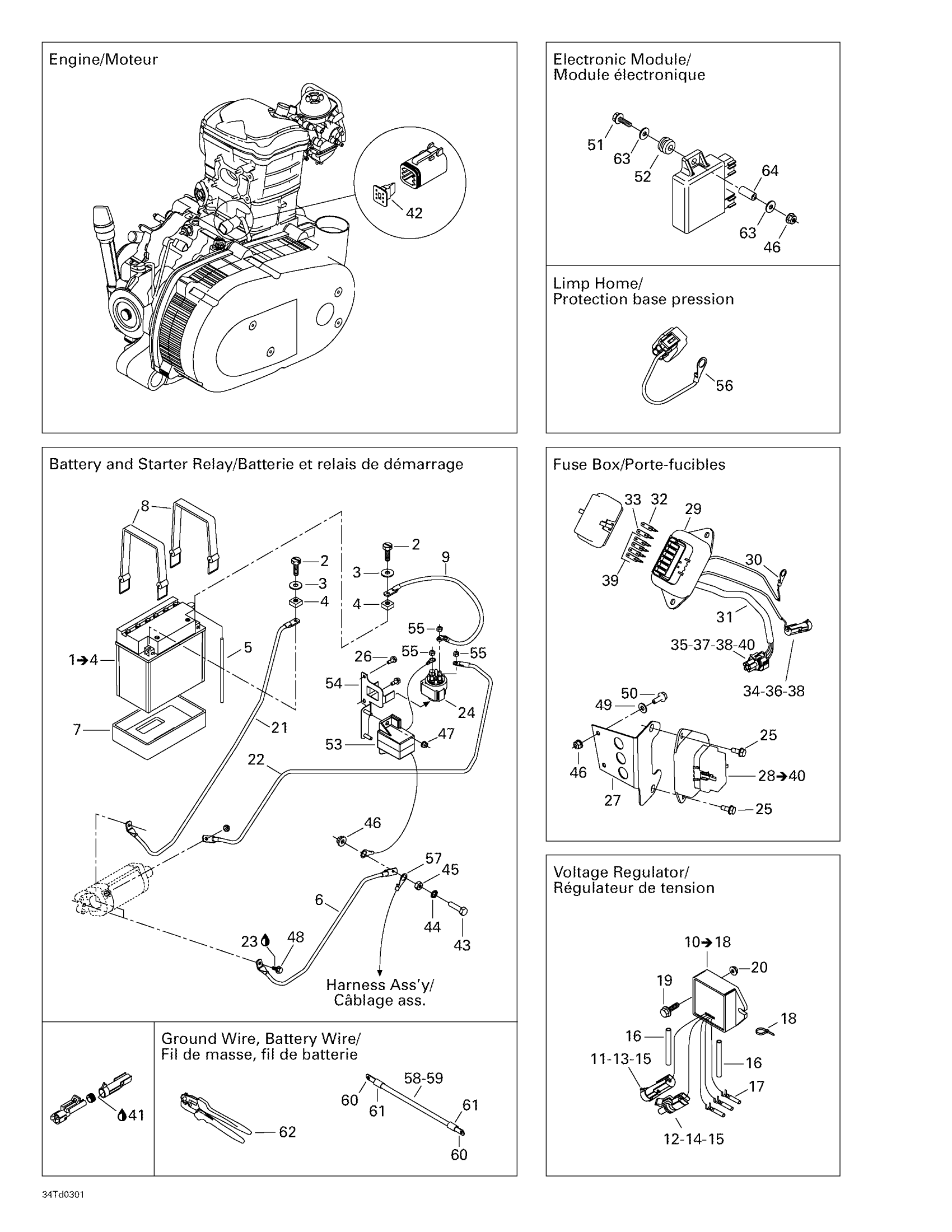

Can-Am Quest 650, 2003 Battery And Electrical Accessories Diagram

#

Description
Price

1

Battery 19A | Includes 5 to 8

278001756

Unavailable

2

Hex. Screw M6 X 16

207161644

Unavailable

3

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

4

Hex. Nut M6

232061414

$0.44

5

Was 415110000 Polyurethane Hose 5.2 mm

219704414

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Lower Battery Pad

278001746

Unavailable

8

Retainer Strap

293850097

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Volt Regulator Ass'y | Includes 18 to 26

710000169

Unavailable

11

Male Terminal | XT Models

278000222

$2.55

12

Female Terminal

278000223

Unavailable

13

Female Housing, 1 Circuit

278000161

Unavailable

14

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

15

Wire Seal

278000218

Unavailable

16

LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership

409901300

Unavailable

17

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

18

Tie Wrap 94 mm | 4X4

293750001

$0.83

19

Hex. Flange Screw M6 X 20

207662044

Unavailable

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

21

Engine Ground Cable

710000211

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Loctite 243, 10 ml

293800060

$20.77

24

Starter Relay

710000344

$119.97

25

Hex. Flange Screw M6 X 16

210261650

$1.22

26

Hex. Self-threaded Screw 1/4"-20 X 3/4"

250000061

Unavailable

27

Module Bracket

710000138

Unavailable

28

Fuse Hoder | Includes 28 - 40.

710000212

$102.28

29

Fuse Box

710000213

Unavailable

30

Open Barrel Terminal

278001392

Unavailable

31

Tubing 6 Mm 3000Mm Long

219704425

$13.14

32

Fuse, 30 Amperes

410917200

$3.22

33

Fuse, 20 Amperes

409003900

$3.22

34

Male Terminal

409004300

$5.46

35

Female Terminal

409007300

$0.36

36

Female Housing, 1 Circuit

278000161

Unavailable

37

Wire Seal

278000218

Unavailable

38

Wire Seal

710000048

Unavailable

39

Fuse, 15 Amperes

278000343

$2.72

40

Female Housing, 5 Circuit

710000106

Unavailable

41

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

42

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

43

Hex. Screw M6 X 25

207162544

Unavailable

44

External Serrated Lock Washer 6 mm

234461608

Unavailable

45

Hex. Nut M6

232061414

$0.44

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

47

Hex. Flange Elastic Nut M5

233251414

Unavailable

48

Hex. Flange Screw M6 X 16

207661644

Unavailable

49

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

50

Hex. Screw M5 X 20

207152044

$0.88

51

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

52

Grommet

709000582

$4.38

53

Coil External

710000317

Unavailable

54

Support

710000318

Unavailable

55

Hex. Elastic Stop Nut M6

232561600

$0.92

56

BARREL-OPEN - Call your local BRP dealership

710000293

Unavailable

57

Open Barrel Terminal

278001392

Unavailable

58

Ground Cable Battery, no 6, meter)

278001680

Unavailable

59

Cable Battery, no 6, meter)

278001690

Unavailable

60

Terminal 45°, Small Hole

278001682

Unavailable

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

Terminal 30°, 2 Holes

278001776

Unavailable

61

Was 710000483 Heat Shrink Tubing

219704447

Unavailable

62

Crimp Plier

529035730

Unavailable

63

Flat Washer

224060201

Unavailable

64

Bushing

293900105

Unavailable
