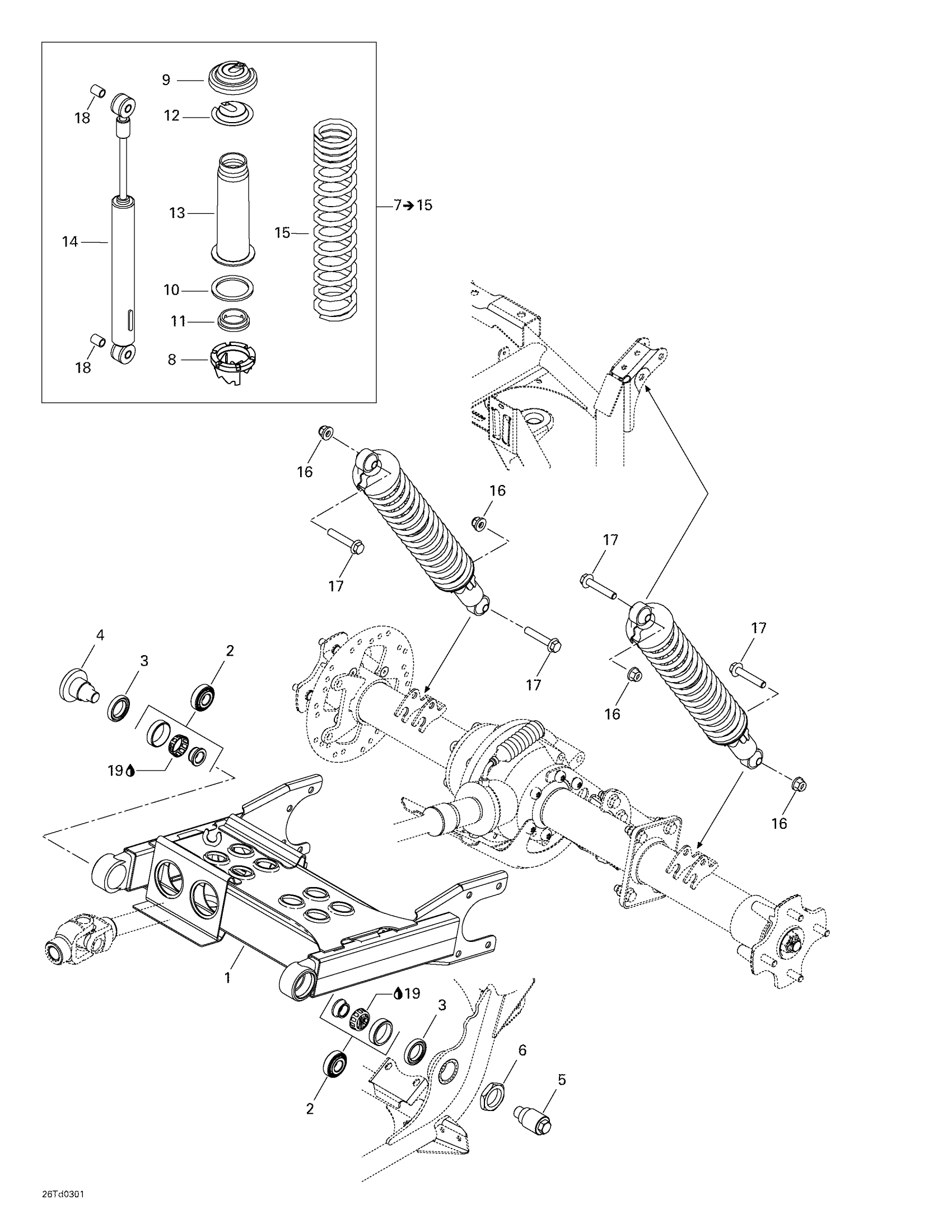

Can-Am Quest 650, 2003 Rear Suspension Diagram

#

Description
Price

1

Swing arm | STD and XT

706000217

$286.89

2

CONE BEARING - Call your local BRP dealership

706000169

Unavailable

3

OIL SEAL - Call your local BRP dealership

706000010

Unavailable

4

RH Pivot Bolt

706000092

Unavailable

5

LH PIVOT BOLT - Call your local BRP dealership

706000093

$33.05

6

HEX. JAM NUT - Call your local BRP dealership

706000006

$13.05

7

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

8

ADJUSTER RING - Call your local BRP dealership

706000073

$13.05

9

Spring Stopper

706200881

$10.30

10

SPRING SEAT - Call your local BRP dealership

706000533

$9.74

11

Spring seat

706000007

Unavailable

12

Cap

706200785

Unavailable

13

PROTECTOR - Call your local BRP dealership

503139800

Unavailable

14

Rear shock

706000129

Unavailable

15

Rear spring

706000172

Unavailable

Rear spring | STD CAMO Quest STD 500. Quest STD 650. XT CAMO Quest XT 650.

706000244

Unavailable

16

Hex. Flange Elastic Nut M10

233201414

$1.26

17

Hex. Flange Screw M10 X 55

207605544

Unavailable

18

UPPER BUSHING - Call your local BRP dealership

706000146

$10.74

19

GREASE SYNTHETIC 14OZ/400G - Call your local BRP dealership

779162

Unavailable
