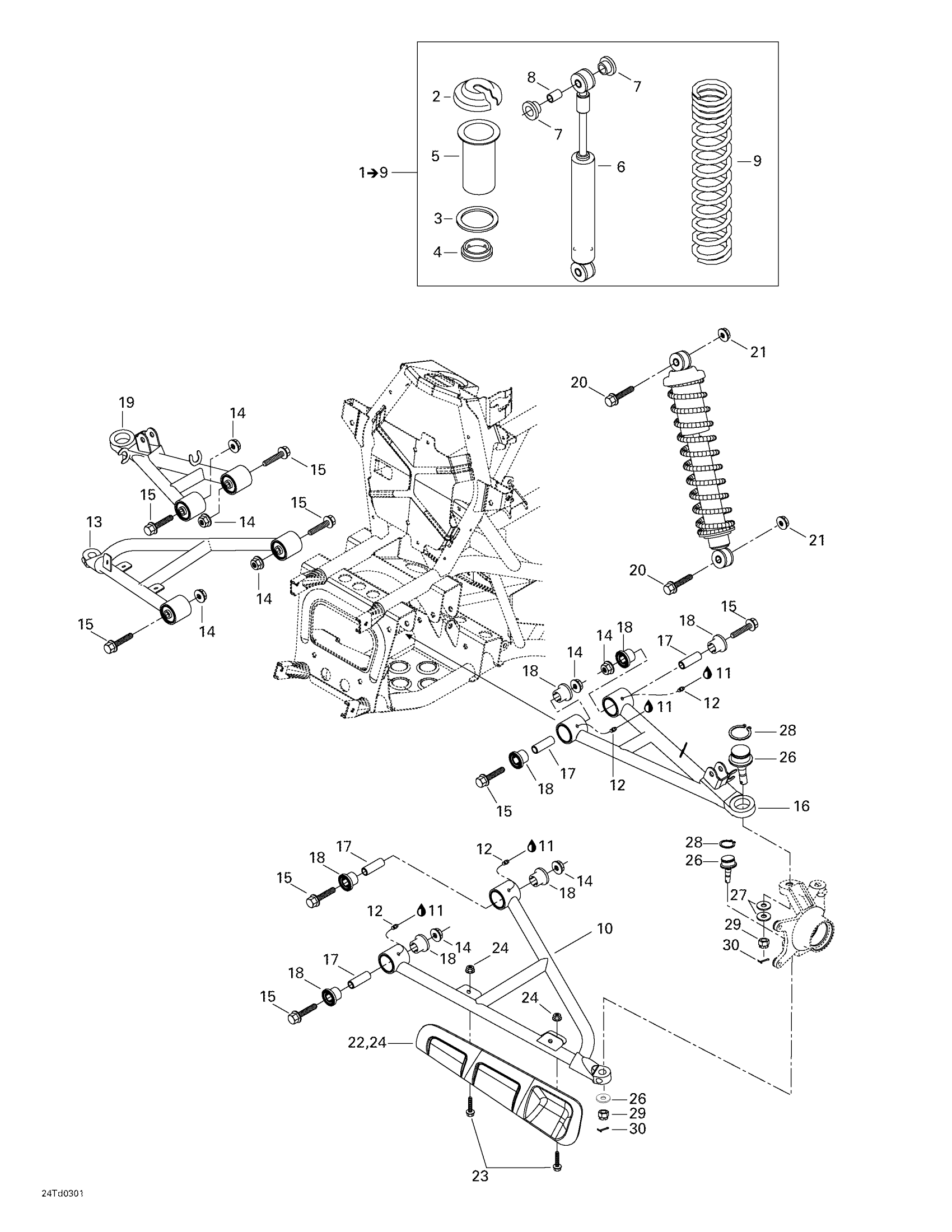

Can-Am Quest 650, 2003 Front Suspension Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

2

Spring Stopper

706200881

$10.30

3

SPRING SEAT - Call your local BRP dealership

706000533

$9.74

4

Spring seat

706000007

Unavailable

5

PROTECTOR - Call your local BRP dealership

503139800

Unavailable

6

Front shock | Includes 9 - 11.

706200221

Unavailable

Front shock

706200140

Unavailable

7

CUSHION - Call your local BRP dealership

706200185

Unavailable

8

BUSHING - Call your local BRP dealership

706200186

Unavailable

9

Front Spring | 4 X 4 CAMO Quest STD 500. Quest XT 650. 2 X 4 CAMO Quest STD 500. Quest STD 650.

706200307

Unavailable

FRONT SPRING - Call your local BRP dealership

706200006

Unavailable

10

LH LOWER ARM - Call your local BRP dealership | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

706200200

Unavailable

11

Synthetic Grease, 400 G

293550010

Unavailable

12

Grease Fitting

408200700

Unavailable

13

RH LOWER ARM - Call your local BRP dealership | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

706200196

Unavailable

14

Hex. Flange Elastic Nut M10

233201436

Unavailable

15

Hex. Flange Screw M10 X 70

207607046

Unavailable

16

LH upper arm

706200193

Unavailable

17

Sleeve

706201587

$4.60

18

Bushing

706200181

$3.68

19

RH UPPER ARM - Call your local BRP dealership

706200187

Unavailable

20

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

207604544

Unavailable

21

Hex. Flange Elastic Nut M10

233201414

$1.26

22

RH ARM PROTECTOR - Call your local BRP dealership

706200179

$8.43

23

Hex. Flange Screw M6 X 16

207661644

Unavailable

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

25

LH ARM PROTECTOR - Call your local BRP dealership

706200180

$8.43

26

Ball Joint

706200653

$41.51

27

Hardened Washer

706200281

Unavailable

28

Circlip 32 mm

293370009

$1.49

29

Hex. Castellated Nut M12

232221414

Unavailable

30

Cotter Pin

211400017

Unavailable
