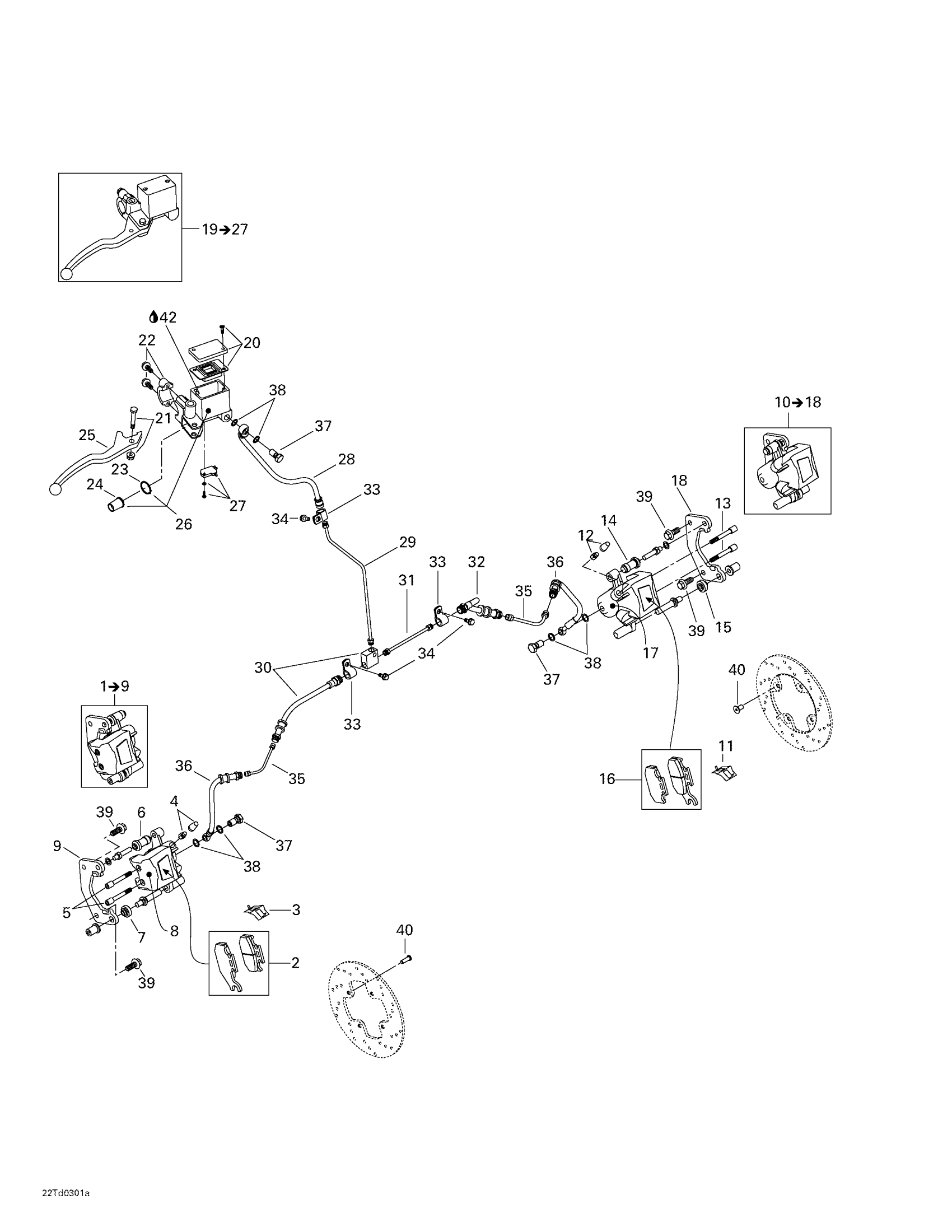

Can-Am Quest 650, 2003 Hydraulic Front Brake Diagram
#
Description
Price
1
RH Caliper | Includes 1 To 9
705600118
Unavailable
2
Brake Pad Kit
705600004
Unavailable
3
Spring
705600079
Unavailable
4
Bleeding Screw
705600080
Unavailable
5
Pin Set (2)
705600081
Unavailable
6
Compression Boot
705600082
Unavailable
7
Compression Boot
705600083
Unavailable
9
Lining Support
705600149
Unavailable
10
LH Caliper | Includes 10 To 18
705600119
Unavailable
11
Spring
705600079
Unavailable
12
Bleeding Screw
705600080
Unavailable
13
Pin Set (2)
705600081
Unavailable
14
Compression Boot
705600082
Unavailable
15
Compression Boot
705600083
Unavailable
16
Brake Pad Kit
705600014
Unavailable
18
Lining Support
705600149
Unavailable
19
FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 19 To 27
705600120
Unavailable
22
BRACKET KIT - Call your local BRP dealership
705600087
Unavailable
23
CIRCLIP - Call your local BRP dealership
705600088
Unavailable
25
LEVER ARM - Call your local BRP dealership
705600164
Unavailable
28
HANDLE BRAKE HOSE - Call your local BRP dealership
705600165
Unavailable
29
Vertical tube
705600036
Unavailable
30
RH flexible hose
705600174
Unavailable
31
Horizontal tube
705600038
Unavailable
32
LH flexible hose
705600175
Unavailable
35
Rigid tube
705600176
Unavailable
37
Banjo Bolt (M10 x 1.25 thread)
705600609
Unavailable
38
Washer
414920600
Unavailable
39
Hex. Screw M10 X 20, Scotch Grip
250000057
Unavailable
41
Hex. Flange Screw M8 X 16, Scotch Grip
207581646
Unavailable
42
BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership
293600063
Unavailable
HYDRAULIC OIL - Call your local BRP dealership
293600131
Unavailable
